POWER SUPPLY

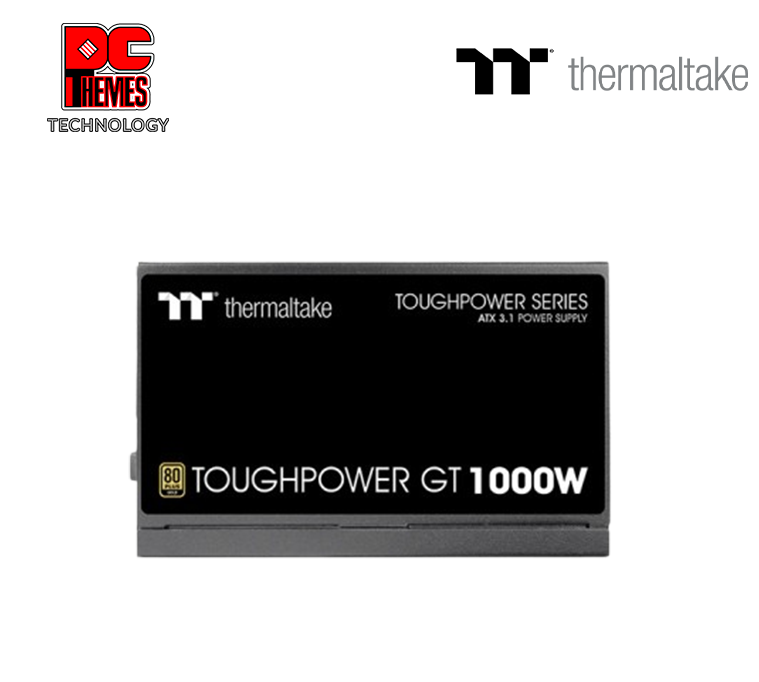

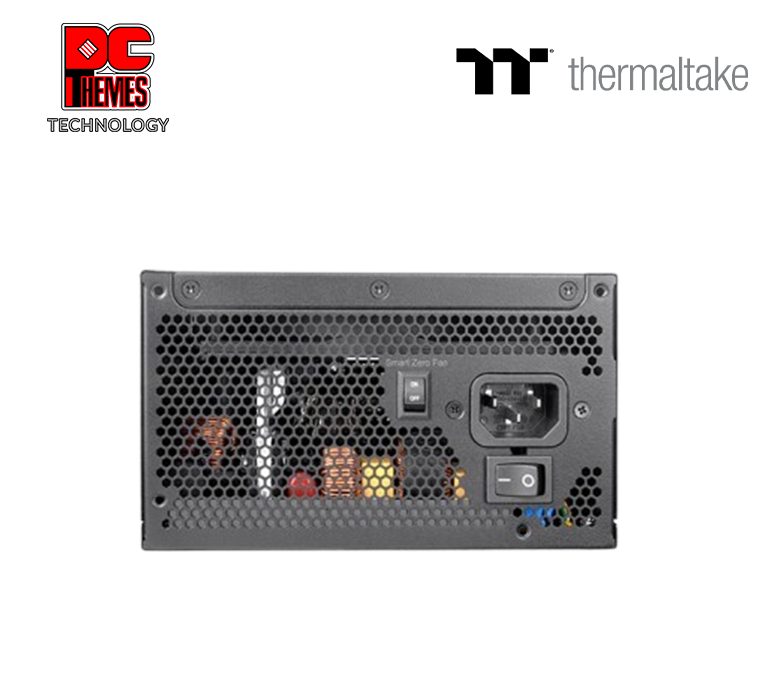

THERMALTAKE TOUGHPOWER GT 1000W 80+ Gold Power Supply
- $169.00
- $170.00
80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
| P/N | PS-TPT-1000FNFAG*-3 |
|---|---|
| watts | 1000W |
| Model | TPD-1000AH2FXG-3 |
| Max. Output Capacity | 1000W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 15-10A |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1 |
| PROTECTION | OVP/UVP/OCP/OPP/OTP/SCP |
| THERMALTAKE TOUGHPOWER GT 1000W 80+ Gold Power Supply | |
|---|---|
| Wattage | 1000W |
| Form Factor | ATX 3.1 |
| Efficiency | 80 PLUS Gold Certified |
| Model | PS-TPT-1000FNFAGU-3 |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100V – 240V |
| Input Frequency Range | 50Hz – 60Hz |
| Input Current | 15A – 10A |
| Hold-up Time | \> 17ms at 80% load |
| MTBF | 100,000 hours minimum |
| Cooling | 120mm Hydraulic Bearing Fan with Smart Zero Fan technology |
| Protections | OVP, UVP, OCP, OPP, OTP, SCP |
| Main Power Connector (24-pin) | 1 |
| ATX 12V Connector (4+4 pin) | 2 |
| PCIe Connector (12+4 pin 600W) | 1 |
| PCIe Connector (6+2 pin) | 5 |
| SATA Connector | 6 |
| Peripheral Connector (4-pin) | 4 |
