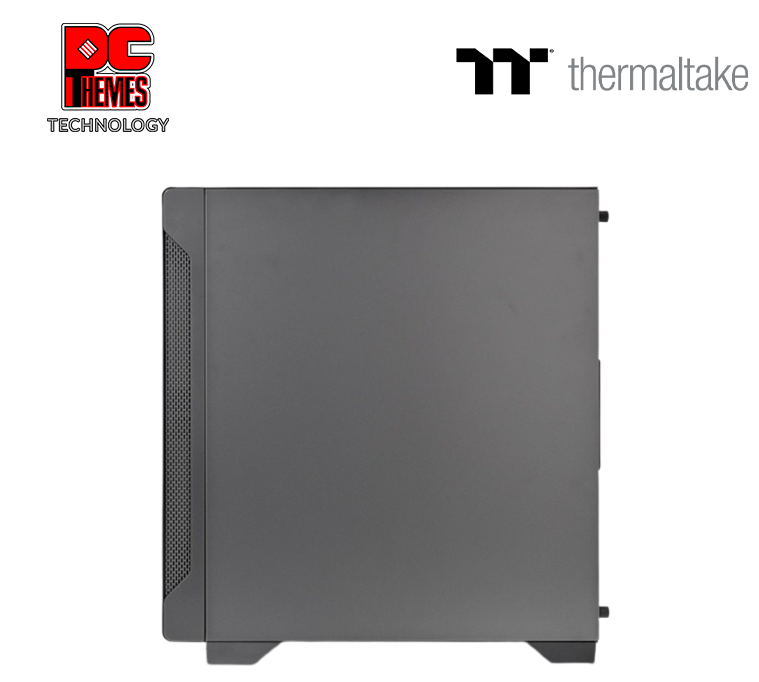

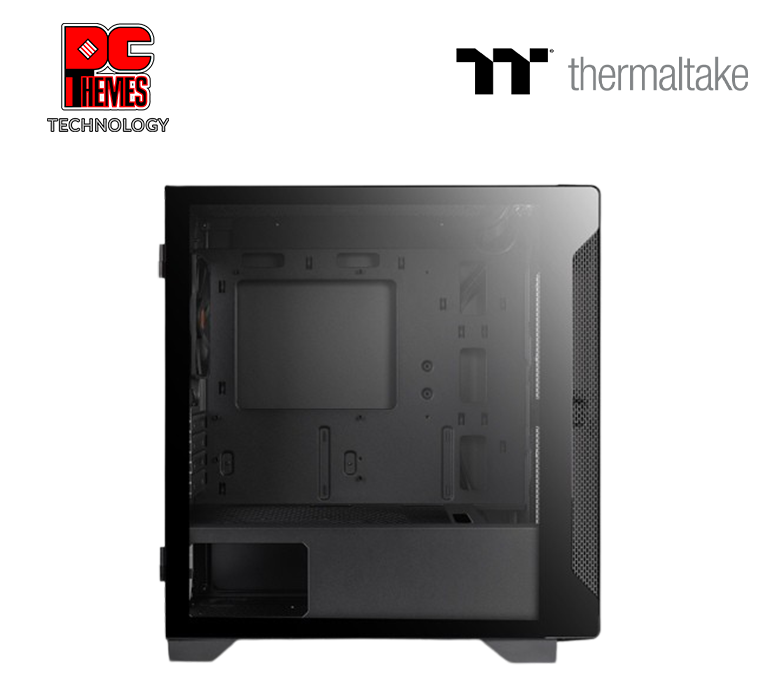

THERMALTAKE S100 MATX Casing WITH TG - BLACK
- $62.00
S100 TG Micro case comes with one tempered glass panel on the left, one preinstalled 120mm standard fan at the rear and supports motherboards up to Micro-ATX.
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
| P/N | CA-1Q9-00S1WN-00 |
|---|---|
| Series | S Series |
| Model | S100 TG |
| CASE TYPE | Micro Case |
| Dimension (H x W x D) | 441 x 220 x 411 mm (17.36 x 8.66 x 16.18 inch) |
| NET WEIGHT | 6.1 kg / 13.45 lbs. |
| PANEL | Tempered Glass x 1 |
| Color | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) |
| Drive Bays -Accessible -Hidden | - 2 x 2.5” (HDD Bracket); 2 x 3.5“ or 2 x 2.5” (HDD Rack); |
| EXPANSION SLOTS | 4 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm, 1 x 200mm Rear: 1 x 120mm, |
| RADIATOR SUPPORT | Front: 1x 240mm, 1 x 280mm Top: 1 x 240mm, 1x 280mm Rear: 1 x 120mm, |
| CLEARANCE | CPU cooler height limitation: 165mm PSU length limitation: 160mm VGA length limitation: 330mm |
| THERMALTAKE S100 MATX Casing WITH TG - BLACK | |
|---|---|
| Case Type | Micro Case |
| Dimensions | 411 x 220 x 441 mm |
| Weight | 6.1 kg |
| Side Panel | 4mm Tempered Glass |
| Material | SPCC |
| Motherboard Support | Mini ITX, Micro ATX |
| Expansion Slots | 4 |
| Drive Bays | 2 x 3.5 inch or 2 x 2.5 inch (HDD Rack), 2 x 2.5 inch (HDD Bracket) |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio |
| Pre-installed Fan | 1 x 120mm Rear (1000rpm, 16 dBA) |
| Fan Support | Front (2 x 120mm or 2 x 140mm), Top (2 x 120mm, 2 x 140mm, or 1 x 200mm), Rear (1 x 120mm) |
| Radiator Support | Front (1 x 240mm or 1 x 280mm), Top (1 x 240mm or 1 x 280mm), Rear (1 x 120mm) |
| CPU Cooler Clearance | 165 mm |
| GPU Clearance | 330 mm |
| PSU Clearance | 160 mm |
