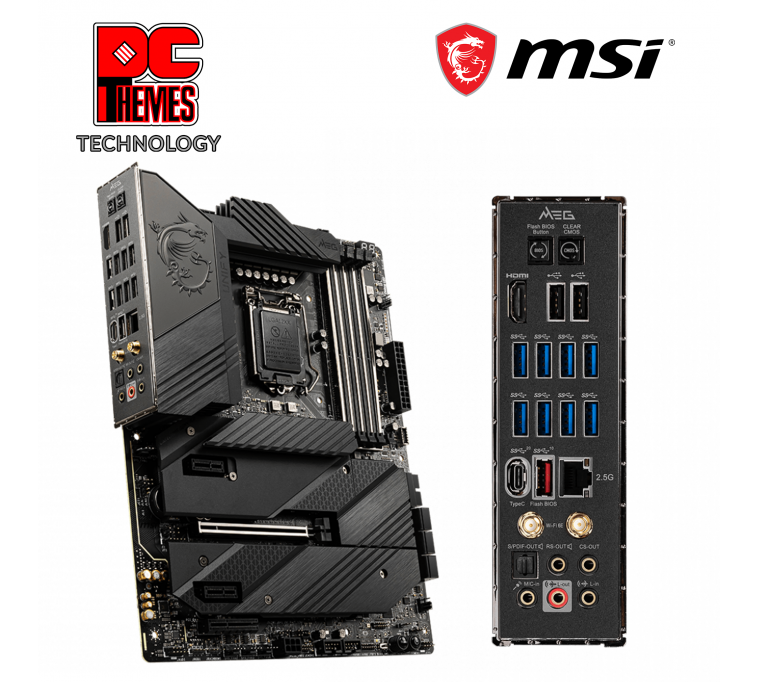

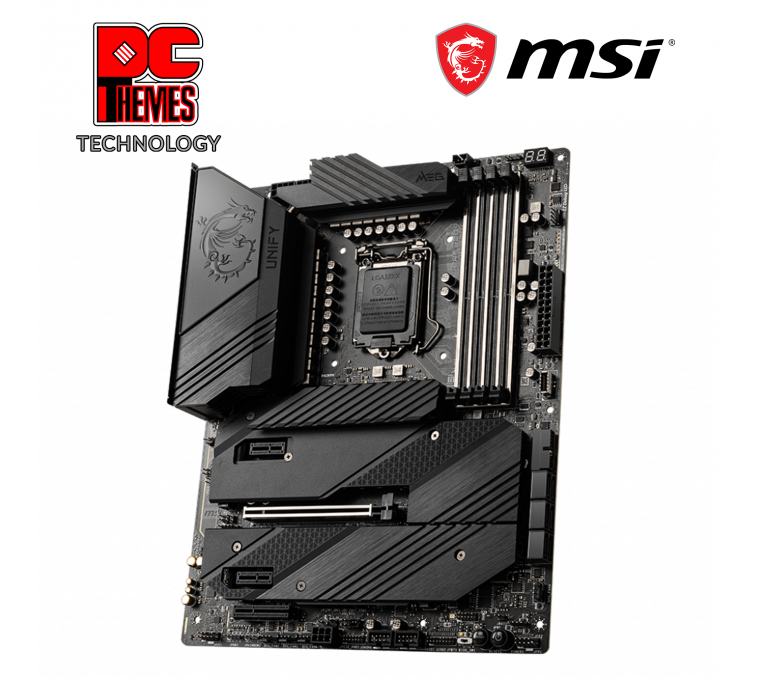

MSI Z590 Unify Motherboard
- $159.00
MEG Z590 UNIFY
Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
This product is out of stock, submit your email and we will update once it restock.
MSI
MEG Z590 UNIFY
Unique Features
- » Extreme Power Design: Direct 16+2+1 phase with 90A Smart Power Stage and Titanium Choke III to unleash CPU performance.
- » Quadruple M.2 Connectors: Onboard 4x M.2 slots, featuring three Lightning Gen 4 solutions with double-sided M.2 Shield Frozr.
- » Outstanding Cooling: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, and Aluminum Backplate.
- » Pure Black Aesthetics: Stealth design stripped of unnecessary RGBs, built entirely for record-breaking performance.
CPU & Memory
Processor Support
- • Intel® Socket LGA 1200 (Z590 Chipset)
- • 11th Gen Intel® Core™ Processors
- • 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Memory Specs
- • Dual Channel DDR4 (4 x DIMM Slots)
- • Max Capacity: 128GB (Non-ECC, Un-buffered)
- • Supports up to 5600(OC) MHz
Graphics & Storage
Video Output
- • 1 x HDMI™ 2.0b (Max. 4K 60Hz)
- • Supports 2-Way AMD® CrossFire™ Technology
Fast Storage
- • 4x M.2 Slots total:
- • 3x PCIe 4.0 x4 M.2 (Depending on CPU support)
- • 1x PCIe 3.0 x4 & SATA M.2
- • 6 x SATA 6Gb/s Ports (RAID 0, 1, 5, 10)
Expansion & Net
Expansion Slots
- • 1 x PCIe 4.0 x16 slot (PCI_E1)
- • 1 x PCIe 3.0 x4 slot (PCI_E4)
- • 2 x PCIe 3.0 x1 slots
Connectivity
- • LAN: Intel® I225-V 2.5Gbps LAN controller
- • Wi-Fi 6E: Intel® Wi-Fi 6E AX210
- • Bluetooth: v5.2 Support
Ports & Headers
Rear Panel I/O
- • 1x USB 3.2 Gen 2x2 20Gbps (Type-C)
- • 1x USB 3.2 Gen 2 10Gbps (Type-A), 8x USB 3.2 Gen 1 (Type-A)
- • 1x HDMI, 1x 2.5G LAN, 2x USB 2.0
- • Clear CMOS & Flash BIOS Buttons, Wi-Fi Antenna, Optical S/PDIF out
Internal & Audio
- • Audio Boost 5 with Realtek® ALC4080 Codec + ESS DAC
- • Front USB: 1x Type-C (3.2 Gen 2), 2x 3.2 Gen 1, 4x 2.0
- • Tuning controller header, EZ Debug LED, EZ LED Control
- • ATX Form Factor (30.5 cm x 24.4 cm)
