ZOTAC GAMING RTX 5070 TWIN EDGE OC 12GB Graphics Card - L241.5mm x W120.1mm x H40.6mm (Strict 2-Slot Design, NVIDIA SFF-Ready)
ZOTAC GAMING RTX 5070 TWIN EDGE OC 12GB Graphics Card - L241.5mm x W120.1mm x H40.6mm (Strict 2-Slot Design, NVIDIA SFF-Ready)
Pre-Order- $949.41
- $959.00
| ZOTAC GAMING GeForce RTX 5070 Twin Edge OC (12GB GDDR7) ZT-B50700H-10P | |
|---|---|
| GPU | GeForce RTX 5070 (6144 CUDA cores, Blackwell Architecture) |
| Video Memory | 12GB GDDR7 (192-bit) |
| Engine Clock | Boost: 2542 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | 5.0 x16 |
| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b (Quad Display Capable) |
| Power Recommendation | 650W (250W Power Consumption, 1x 12V-2x6 Power Input) |
| Cooling | IceStorm 2.0 (Dual 90mm BladeLink Fans, FREEZE Fan Stop, Metal Backplate) |
| API Support | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions | 241.5mm x 120.1mm x 40.6mm (Strict 2-Slot Design, NVIDIA SFF-Ready) |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ZOTAC GAMING
GeForce RTX™ 5070 Twin Edge OC 12GB GDDR7
Unique Features
- » NVIDIA Blackwell Architecture: Powered by cutting-edge Blackwell tech, DLSS 4, and Multi-Frame Generation for unparalleled 1440p and 4K gaming performance.
- » IceStorm 2.0 & Factory OC: The Twin Edge OC comes factory-tuned out of the box and features advanced IceStorm 2.0 dual-fan cooling with FREEZE Fan Stop technology.
- » NVIDIA SFF-Ready: Officially certified as an SFF-Ready Enthusiast GeForce Card, packing immense graphical power into a highly compatible, ultra-compact 2-slot form factor.
- » Premium Stealth Aesthetic: Designed with a sleek dark shroud, advanced BladeLink fans, and a reinforced metal backplate for enhanced durability.
GPU Performance
Core Specifications
- • GPU Model: GeForce RTX 5070 (Twin Edge OC)
- • CUDA Cores: 6144
- • Engine Clock: Boost: 2542 MHz (Factory Overclocked)
- • Interface: PCI Express 5.0 x16
Supported Technologies
- • API Support: DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
- • Ray Tracing: 4th Gen RT Cores
- • AI Acceleration: 5th Gen Tensor Cores (DLSS 4)
- • Software: ZOTAC FireStorm Utility Compatible
Memory & Displays
Memory Specifications
- • Video Memory: 12GB GDDR7
- • Memory Bus: 192-bit
- • Memory Clock: 28 Gbps
- • Generous 12GB of ultra-fast VRAM provides immense headroom for 1440p and 4K gaming workloads

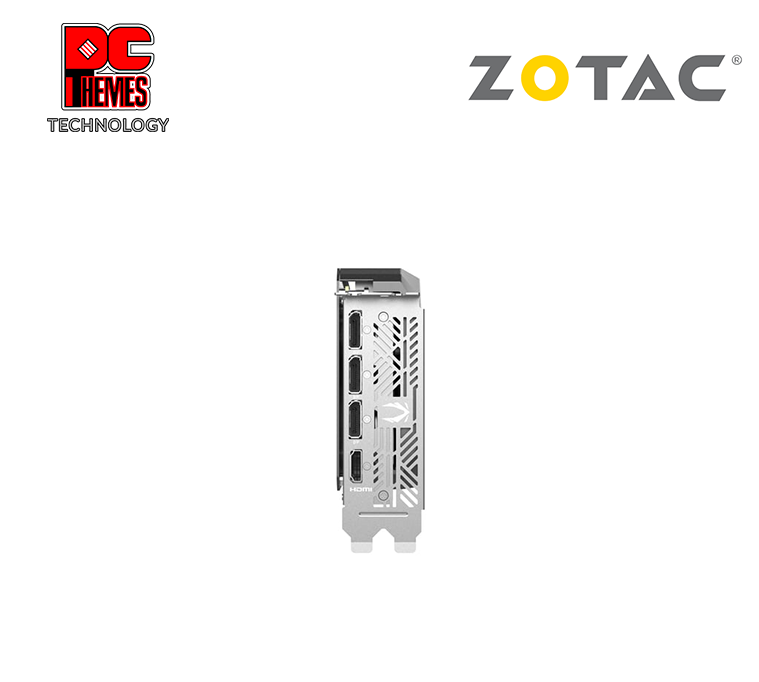

Display Outputs
- • DisplayPort: 3 x DisplayPort 2.1b (up to 4K 480Hz or 8K 165Hz with DSC)
- • HDMI: 1 x HDMI 2.1b (Supports 4K 120Hz HDR, 8K 60Hz HDR, VRR)
- • HDCP Support: 2.3
- • Multi Display: Quad Display Capable
Power & Cooling
Power Requirements
- • Power Consumption: 250W TDP
- • Recommended PSU: 650W
- • Power Input: 1 x 12v-2x6 PCIe Connector
- • Equipped with a built-in 12V-2x6 Power Safety Light indicator
Thermal Design
- • Cooling Solution: IceStorm 2.0 Dual Fan Cooling
- • Fan Setup: ZOTAC BladeLink Fans with Active Fan Control & FREEZE Fan Stop

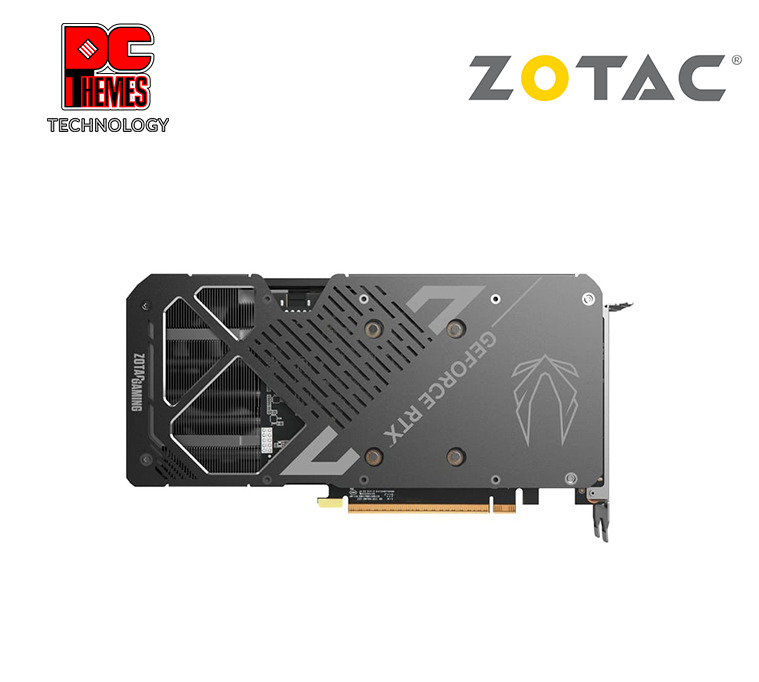

- • Rigidity: Solid Metal Backplate for enhanced durability
Design & Compatibility
Physical Dimensions
- • Slot Size: 2 Slot
- • Dimensions: 241.5mm x 120.1mm x 40.6mm (9.5" x 4.7" x 1.6")
- • Form Factor: NVIDIA SFF-Ready Enthusiast Design
- • Aesthetic: Sleek stealth black finish built tough for premium SFF builds
System Requirements
- • Supported OS: Windows 11, Windows 10 64-bit
- • Accessories: User Manual & 2x 8-pin-to-16-pin power cable included
