POWER SUPPLY
WS3000 3000W ATX 3.1 Fully Modular Workstation Power Supply
- $783.02
- $799.00
| CORSAIR WS3000 3000W ATX 3.1 Fully Modular Workstation Power Supply | |
|---|---|
| Model | WS3000 |
| Part Number / SKU | CP-9020312-NA |
| Product Type | Workstation Power Supply Unit (PSU) |
| Total Power Output | 3000W |
| Efficiency Certification | 80 PLUS Platinum and Cybenetics Platinum |
| PSU Form Factor | ATX |
| ATX Standard | ATX 3.1 |
| PCIe Compatibility | PCIe 5.1 Ready |
| Modular Design | Fully Modular |
| Cable Type | CORSAIR Type 4 |
| EPS12V Version | 2.92 |
| Cooling System | Active Cooling with 140mm Fan |
| Fan Bearing Technology | Dual Ball Bearing |
| Zero RPM Mode | No |
| Multi-GPU Support | Yes, designed for demanding multi-GPU workstations |

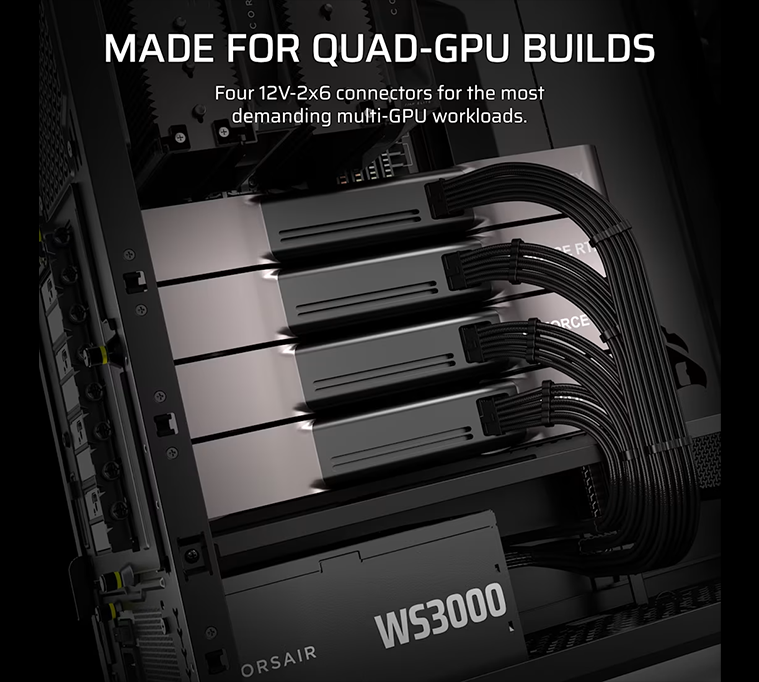

| Native 12V-2x6 Connectors | 4 x 12V-2x6, up to 600W per connector |
| ATX Motherboard Connector | 1 x 24-pin ATX |
| EPS / CPU Connectors | 2 x 4+4-pin EPS12V |
| PCIe Power Connectors | 8 x 6+2-pin PCIe connectors across 4 cables |
| SATA Connectors | 9 connectors across 3 cables |
| PATA / Peripheral Connectors | 6 connectors across 2 cables |
| AC Input Voltage | 220–240V AC (High-Line Power Required) |
| Input Current | 16A |
| Input Frequency | 47–63Hz |
| +3.3V Rail | 25A |
| +5V Rail | 25A |
| Combined +3.3V / +5V Output | 130W Maximum |
| +12V Rail | 250A / 3000W Maximum |
| -12V Rail | 0.8A / 9.6W Maximum |
| +5VSB Rail | 3A / 15W Maximum |
| Continuous Output Rated Temperature | 40°C |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Weight | 4kg (listed on CORSAIR product page) |
| Features | 3000W Continuous Power Output, 80 PLUS Platinum Efficiency, Cybenetics Platinum Certification, ATX 3.1 Compliance, PCIe 5.1 Readiness, Four Native 600W 12V-2x6 Connectors, Fully Modular Cabling, Multi-GPU Workstation Support, 140mm Dual Ball Bearing Fan |
| Included Cables | 1 x 24-pin ATX Motherboard Cable (610mm ±10mm) 2 x 4+4-pin EPS/CPU Cables (650mm ±10mm each) 4 x Dual 6+2-pin PCIe Cables (750mm ±10mm each; 8 connectors total) 4 x 12V-2x6 600W Cables (675mm ±10mm each) 3 x SATA Cables (3 connectors per cable; 9 connectors total; 700mm ±10mm each) 2 x PATA Cables (3 connectors per cable; 6 connectors total; 700mm ±10mm each) |
| Package Contents | CORSAIR WS Series ATX Power Supply, Power Cord, DC Cables, Mounting Screws, Cable Ties |
