POWER SUPPLY

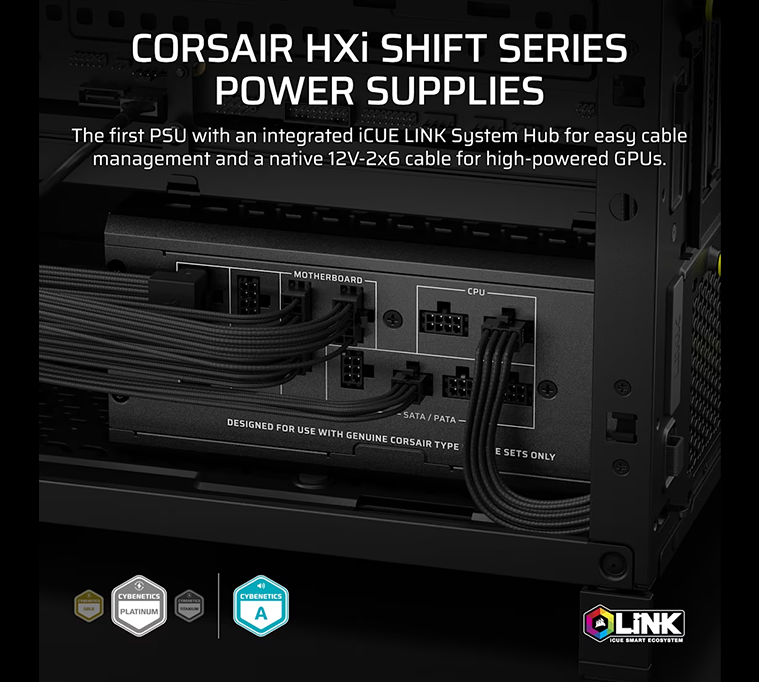

HX1500i SHIFT Fully Modular Platinum ATX Power Supply
- $518.42
- $529.00
| CORSAIR HX1500i SHIFT Fully Modular Platinum ATX Power Supply | |
|---|---|
| Model | HX1500i SHIFT |
| Part Number / SKU | CP-9020269-NA |
| Product Type | Fully Modular ATX Power Supply |
| Continuous Power Output | 1500W at 115V–240V input; 1200W at 100V–115V input |
| Efficiency Certification | Cybenetics Platinum |
| Noise Certification | Cybenetics A |
| ATX Standard | ATX 3.1 |
| PSU Form Factor | ATX |
| Dimensions | 200 x 150 x 86 mm (L x W x H) |
| Weight | Approximately 4.35 kg |
| AC Input Voltage | 100V–240V AC; 200V–240V AC mode specified for Korea and India |
| Input Current | 15A–9A; 10A for the specified 200V–240V input mode |
| Input Frequency | 47Hz–63Hz |
| +3.3V Output | 25A |
| +5V Output | 25A |
| Combined +3.3V / +5V Output | 150W maximum combined output |
| +12V Output | 125A / 1500W |
| +5VSB Output | 3.5A / 17.5W |

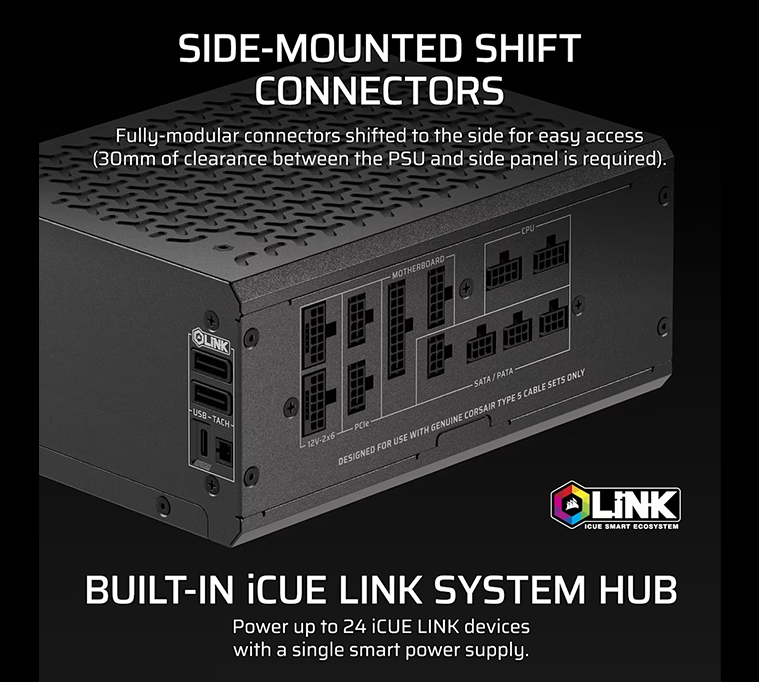

| Modular Design | Fully Modular, with side-mounted SHIFT connectors |
| Cable Type | CORSAIR Type 5 |
| Motherboard Connector | 1 x 24-pin ATX |
| EPS / CPU Connectors | 2 x 4+4-pin EPS12V |
| PCIe Connectors | 6 x 6+2-pin PCIe connectors listed in the technical specifications, including connectors supplied through the included PCIe adapter cables |
| 12V-2x6 GPU Power | 2 x native 600W 12V-2x6 GPU power cables |
| SATA Connectors | 12 x SATA power connectors |
| PATA / Peripheral Connectors | 8 x PATA peripheral connectors |
| Cooling Fan | 140mm fan with Fluid Dynamic Bearing (FDB) |
| Zero RPM Mode | Yes, for quiet operation at low to medium loads |
| Digital Control | Digital Signal Processing (DSP) |
| iCUE LINK System Hub | Integrated iCUE LINK System Hub supporting control of up to 24 compatible iCUE LINK devices |
| Capacitors | 100% industrial-grade Japanese electrolytic capacitors rated at 105°C |
| Operating Temperature Rating | 50°C continuous operating temperature rating |
| Modern Standby | Yes |
| Multi-Rail Support | Single / multiple +12V rail toggle support |
| MTBF | 100,000 hours |
| Warranty | 10 years |
| Included Cables | 1 x 24-pin ATX cable; 2 x 4+4-pin EPS cables; 2 x 6+2-pin PCIe cables; 2 x 90° 12V-2x6 to dual 6+2-pin PCIe cables; 2 x 90° 12V-2x6 to 600W 12V-2x6 cables; 3 x four-connector SATA cables; 2 x four-connector PATA cables; 1 x USB Type-C to USB 10-pin header cable; 1 x 200mm right-angle iCUE LINK cable; 1 x 600mm iCUE LINK cable |
| Cable Lengths | 24-pin ATX: 610mm; EPS: 650mm each; 6+2-pin PCIe: 650mm each; 12V-2x6 adapter cables: 650mm each; SATA cables: 800mm each; PATA cables: 750mm each; iCUE LINK cables: 200mm and 600mm |
| Package Contents | HX1500i SHIFT Series ATX Power Supply, power cord, DC cables, mounting screws and cable ties |
| Features | Cybenetics Platinum efficiency, Cybenetics A noise certification, ATX 3.1 support, fully modular side-mounted SHIFT connectors, dual native 600W 12V-2x6 GPU cables, integrated iCUE LINK System Hub, digital signal processing, Zero RPM mode, 140mm Fluid Dynamic Bearing fan, 105°C-rated Japanese capacitors and 10-year warranty |
