POWER SUPPLY

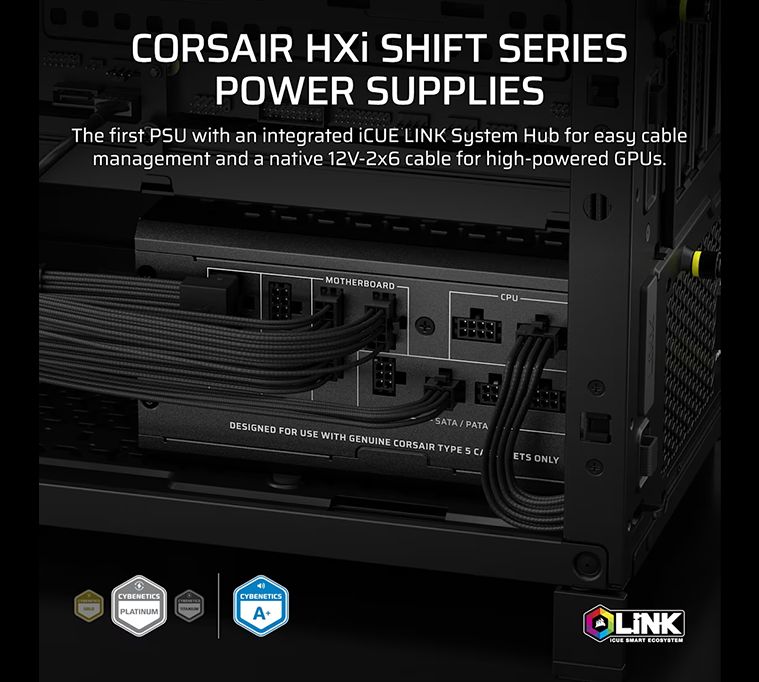

HX1000i SHIFT Fully Modular Platinum ATX Power Supply
- $420.42
- $429.00
| CORSAIR HX1000i SHIFT Fully Modular Platinum ATX Power Supply | |
|---|---|
| Product Series | CORSAIR HXi SHIFT Series |
| Model | HX1000i SHIFT (RPS0195) |
| SKU / Part Number | CP-9020265-NA |
| PSU Type | Digital ATX Power Supply |
| Continuous Power Output | 1000W |
| Efficiency Certification | 80 PLUS Platinum / Cybenetics Platinum |
| Cybenetics Noise Rating | A+ |
| Modular Design | Fully Modular |

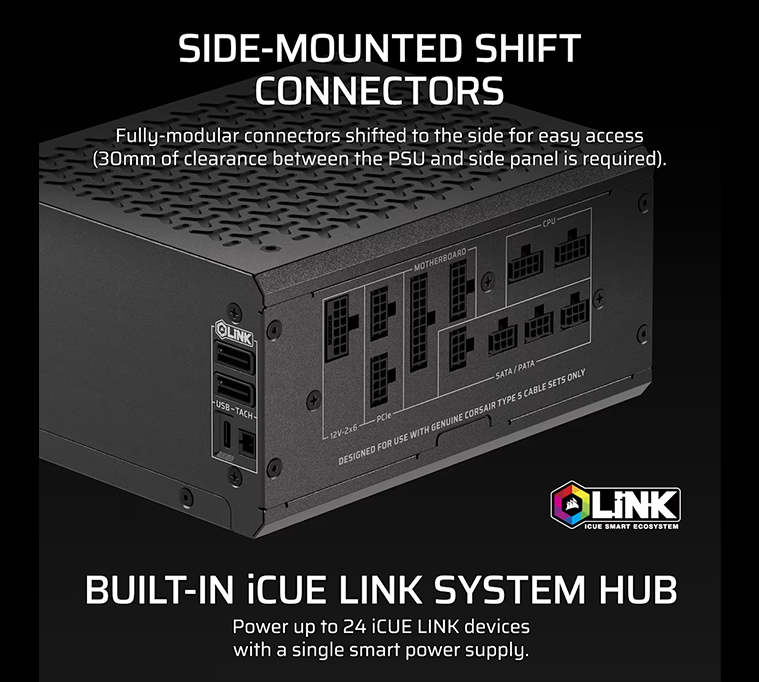

| SHIFT Connector Design | Side-mounted modular connections for easier cable access and management |
| ATX Standard | ATX 3.1 |
| EPS12V Version | 2.92 |
| AC Input Voltage | 100–240V AC |
| Input Current | 13A–6.5A; 10A for specified regional input configurations |
| Input Frequency | 47–63Hz |
| +3.3V Output | 25A |
| +5V Output | 20A |
| Combined +3.3V / +5V Output | 150W maximum |
| +12V Output | 83.3A / 1000W |
| +5VSB Output | 3A / 15W |
| 12V Rail Configuration | Selectable single/multiple 12V rail operation |
| Fan Size | 140mm |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Zero RPM Mode | Yes, fan can stop at low to medium loads for quieter operation |
| Capacitors | 100% industrial-grade Japanese electrolytic capacitors rated at 105°C |
| Digital Control | Digital Signal Processor (DSP) |
| Modern Standby | Supported |
| Continuous Output Rated Temperature | 50°C |
| ATX Motherboard Connector | 1x 24-pin, 610mm ±10mm |
| EPS / CPU Power Connectors | 2x EPS12V / ATX12V 4+4-pin connectors, 650mm ±10mm per cable |
| PCIe 8-Pin Connectors | 2x PCIe 6+2-pin connectors, 650mm ±10mm per cable |
| 12V-2x6 GPU Power | 1x 90-degree 12V-2x6 cable to dual PCIe 6+2-pin connectors, 650mm ±10mm |
| SATA Connectors | 8 connectors across 2 cables, 4 SATA connectors per cable |
| SATA Cable Length | 800mm ±10mm per cable; connector spacing 445mm, 155mm, 155mm, 155mm |
| PATA Connectors | 8 connectors across 2 cables, 4 PATA connectors per cable |
| PATA Cable Length | 750mm ±10mm per cable; connector spacing 450mm, 100mm, 100mm, 100mm |
| USB Cable | 1x USB Type-C to internal 10-pin header, 525mm ±25mm |
| iCUE LINK Cable | 1x 90-degree iCUE LINK cable, 200mm ±25mm; 1x iCUE LINK cable, 600mm ±25mm |
| Cable Type | CORSAIR Type 5 modular cables |
| Integrated iCUE LINK System Hub | Yes, supports connection and control of up to 24 compatible iCUE LINK devices |
| Dimensions | 180 x 150 x 86mm (L x W x H) |
| Weight | Approximately 3kg (listed product weight may vary by source or packaging) |
| MTBF | 100,000 hours |
| Warranty | 10 years |
| Package Contents | HXi SHIFT Series power supply, power cord, DC cables, mounting screws and cable ties |
