POWER SUPPLY

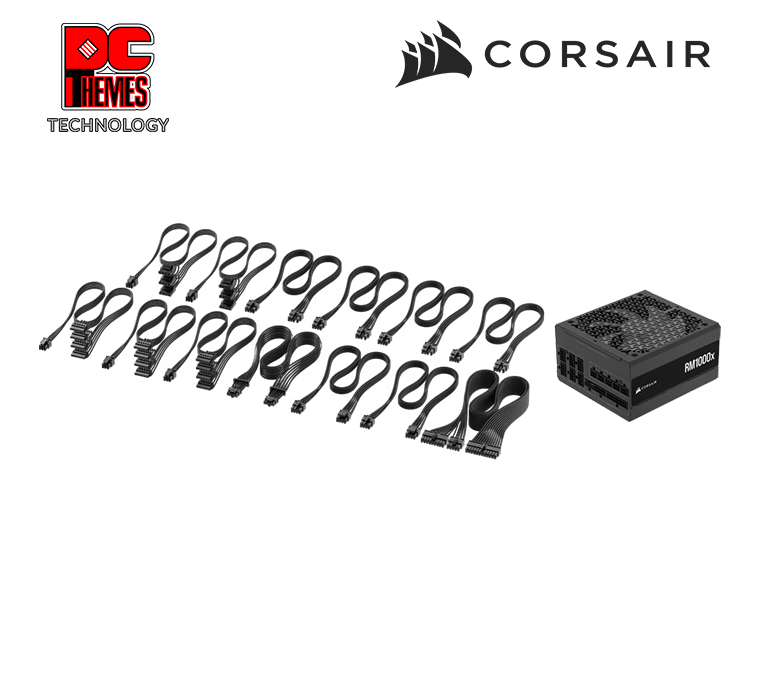

CORSAIR RMx 1000x Gold 3.1 Power Supply
- $282.24
- $288.00
| CORSAIR RMx Series RM1000x Fully Modular Power Supply | |
|---|---|
| Model | RPS0198 |
| Part Number | CP-9020271-NA |
| Product Series | CORSAIR RMx Series |
| Continuous Power Output | 1000W |
| Efficiency Certification | Cybenetics Gold |
| Noise Certification | Cybenetics A |
| Form Factor | ATX |
| ATX Version | ATX 3.1 |
| PCIe Standard | PCIe 5.1 Support |
| Modular Design | Fully Modular |
| Cable Type | CORSAIR Type 4, Embossed Cables |
| AC Input Voltage | 100–240V AC |
| Input Current | 12A–5A |
| Input Frequency | 47–63Hz |
| +3.3V Output | 20A |
| +5V Output | 20A |
| +12V Output | 83.3A / 1000W |
| +5VSB Output | 3A / 15W |
| Combined +3.3V and +5V Output | 150W Maximum |
| Cooling Fan | 140mm Low-Noise Fan with Fluid Dynamic Bearing and Magnetic Dome Structure |
| Zero RPM Fan Mode | Yes, for near-silent operation at low to medium loads |
| Manual Fan Override | Yes, manual fan control knob |

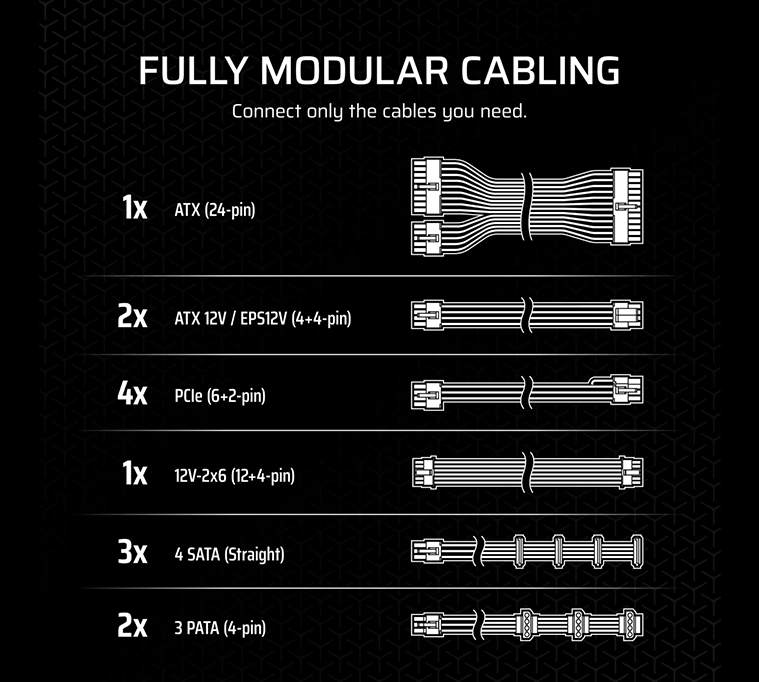

| ATX Connector | 1 x 24-pin ATX |
| EPS / CPU Connectors | 2 x 8-pin (4+4) EPS / ATX12V |
| GPU Power Connector | 1 x Native 12V-2x6 (12+4-pin), 600W Rated |
| PCIe 8-pin Connectors | 4 x 6+2-pin PCIe |
| SATA Connectors | 12 |
| PATA / Peripheral Connectors | 6 |
| 24-pin ATX Cable Length | 610mm (±10mm) |
| EPS / CPU Cable Length | 750mm (±10mm) |
| 12V-2x6 GPU Cable Length | 650mm (±10mm) |
| PCIe Cable Length | 650mm (±10mm) |
| SATA Cable Length | 850mm (±10mm), 4 connectors per cable, 3 cables included |
| PATA Cable Length | 750mm (±25mm), 3 connectors per cable, 2 cables included |
| Capacitors | 100% Industrial-Grade Japanese Electrolytic Capacitors, Rated at 105°C |
| Continuous Operating Temperature | Up to 50°C |
| Modern Standby Support | Yes |
| MTBF | 100,000 Hours |
| Dimensions (L x W x H) | 160 x 150 x 86mm |
| Weight | Approximately 3kg (official US specification) |
| Warranty | 10 Years |
| Features | ATX 3.1 Compliance, PCIe 5.1 Support, Native 600W 12V-2x6 GPU Cable, Fully Modular Type 4 Cables, Cybenetics Gold Efficiency, Cybenetics A Noise Rating, Zero RPM Fan Mode, Manual Fan Override Knob, 140mm Fluid Dynamic Bearing Fan, 105°C-Rated Japanese Capacitors, 50°C Continuous Operating Temperature, Modern Standby Support |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
