CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX] CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX] CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX]
CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX] CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX] CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX]
CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX]

CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX]

  • $361.00
  • $380.00
CORSAIR SF 1000W Gen 5.0 Platinum Power Supply - [SFX]
Form FactorSFX
Efficiency80 PLUS Platinum, Cybenetics Platinum
Noise LevelCybenetics Standard++
Continuous Power1000 Watts
Operating Temperature50°C
Cooling92mm Fluid Dynamic Bearing Fan with Zero RPM mode
ModularityFully Modular (Type-5 Micro-Fit connectors)
StandardsATX 3.1, PCIe 5.1, ATX12V 3.1, EPS12V 2.92
Measurements100mm x 125mm x 63.5mm
Weight2.30kg
MTBF100,000 hours
Warranty7 Year
Included Cables1x ATX 24-pin (300mm), 2x EPS/ATX12V 8-pin (400mm), 4x PCIe 8-pin (400mm), 1x 12VHPWR 12+4-pin (400mm), 2x SATA (445mm), 1x PATA (330mm)

Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

0 reviews / Write a review

CORSAIR
SF Series™ SF1000 80 PLUS Platinum SFX PSU

Unique Features

  • » 80 PLUS Platinum Efficiency: Delivers premium, ultra-efficient power perfect for the most power-dense small form-factor (SFF) PCs.
  • » ATX 3.1 & PCIe 5.1 Certified: Fully compliant with the latest standards, including a 12V-2x6 GPU cable for modern high-end graphics cards.
  • » Fully Modular Type-5 Cables: Individually sleeved, flexible Micro-Fit cabling lets you connect only what you need, saving crucial space in mini-ITX cases.
  • » Zero RPM Fan Mode: A 92mm fluid dynamic bearing fan keeps components cool, shutting off entirely at low and medium loads for silent operation.

Power & Efficiency

Core Specifications

  • • Continuous Power: 1000 Watts
  • • Efficiency Rating: 80 PLUS Platinum / Cybenetics Platinum
  • • Form Factor: SFX / ATX12V v3.1
  • • MTBF Rating: 100,000 Hours

Power Delivery

  • • Premium Components: 100% Industrial-grade, 105°C-rated Japanese capacitors
  • • Thermal Headroom: Rated for 50°C continuous operating temperature
  • • +12V Rail: Single 83.3A rail for immense stability
  • • GPU Ready: Next-generation multi-GPU and RTX series ready

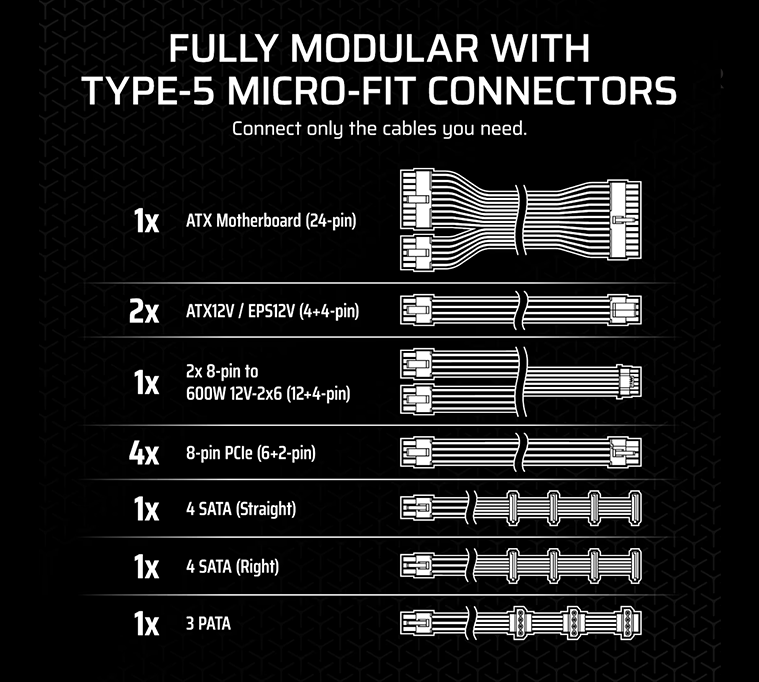

Cables & Connectors

Connector Output

  • • ATX (24-Pin): 1
  • • EPS/ATX12V: 2 (Robust dual CPU power)
  • • PCIe 5.1 (12VHPWR): 1 (12+4 Pin)
  • • PCIe (6+2 Pin): 4
  • • Storage/Peripherals: 8x SATA, 3x PATA

Design & Routing

  • • Cable Modularity: Fully Modular
  • • Cable Type: Type 5 Micro-Fit
  • • Premium Individually Sleeved cables
  • • Takes up less space for tidy cable management in SFF builds

Cooling & Acoustics

Fan Specifications

  • • Fan Size: 92mm
  • • Bearing Technology: Fluid Dynamic Bearing (FDB)
  • • PWM controlled for precise thermal management

Acoustic Profile

  • • Zero RPM Mode: Supported
  • • Fan completely stops at low to medium loads for absolute silence
  • • Cybenetics Noise Rating: Standard++

Design & Support

Physical Dimensions

  • • Form Factor: True SFX (Small Form Factor)
  • • Weight: 2.30 kg
  • • Maximum power density designed to free up space in Mini-ITX cases

Reliability & Warranty

  • • Manufacturer Warranty: 7 Years
  • • Backed by the CORSAIR global technical support team
