CASE | CHASSIS
NZXT H9 Flow RGB Tempered Glass Casing - Black
- $259.00
| NZXT H9 Flow RGB - Black | |
|---|---|
| Enclosure Type | Large Dual Chamber Mid-Tower |
| Motherboard Support | E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Case Material | SGCC Steel, Dark Tinted Tempered Glass |
| Dimensions | 506 mm (H) x 315 mm (W) x 481 mm (D) |
| Weight | 12.46 kg |
| Expansion Slots | 7 Standard |
| Drive Bays | 2 x 3.5 inch, 4+2 x 2.5 inch |
| Maximum GPU Length | 459 mm (standard) / 410 mm (with 420 mm AIO installed) |
| Maximum CPU Cooler Height | 165 mm |
| Maximum PSU Length | 200 mm |
| Front Panel I/O | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Type-A, 1x 3.5mm Headset Jack |
| Radiator Support | Up to 420 mm (Top), 420 mm (Front), 360 mm (Bottom), 120 mm (Rear) |
| Fan Support | 3x 120/140 mm (Front), 3x 120/140 mm (Top), 3x 120 mm (Bottom), 1x 120 mm (Rear) |
| Included Fans | 1x F420 RGB Core Fan (Front), 1x F120Q Airflow Fan (Rear) |
| RGB Lighting | Yes (4-pin NZXT RGB or 3-pin 5V ARGB with pre-installed adapter) |
| Back Connect Support | Yes – ATX Only (ASUS BTF, MSI Project Zero compatible) |
| Dust Filters | Integrated High-Performance Mesh, Removable Magnetic Dust Filter (Bottom) |
| Model Number | CM-H92FB-R1 |
| Warranty | 2 Years |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
NZXT
H9 Flow RGB Dual-Chamber Mid-Tower Case - Black
Unique Features
- » Uninterrupted Glass Showcase: Features a seamless, pillarless front-to-side tempered glass panel design, offering a stunning panoramic view of your premium components.

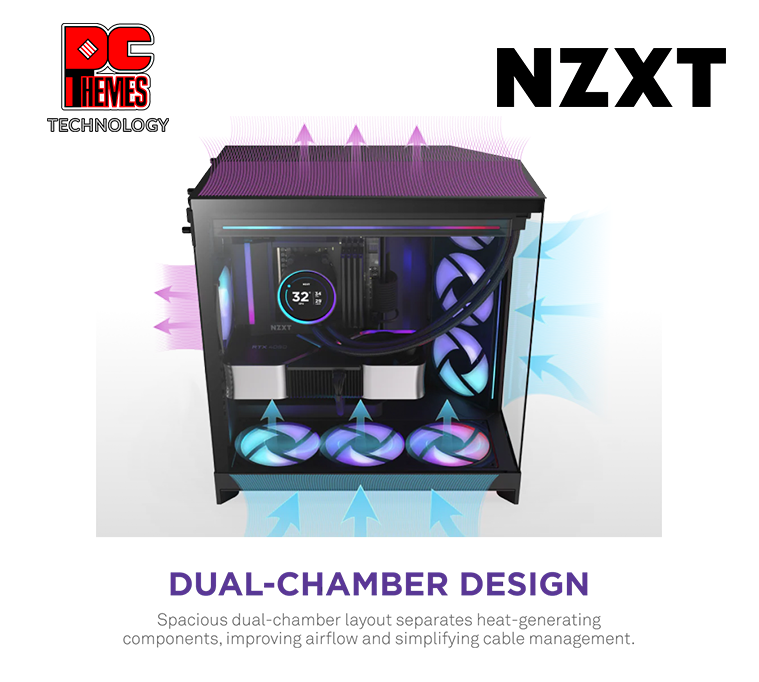

- » Dual-Chamber Layout: Intelligently routes cables, storage drives, and the power supply into a hidden rear chamber, ensuring your main display area remains immaculately clean and clutter-free.
- » Brilliant RGB Cooling Included: Comes equipped out-of-the-box with three stunning 120mm F120 RGB Core fans on the side intake, plus an additional quiet 120mm exhaust fan at the rear.
- » High-Performance Airflow: The "Flow" edition features heavily perforated top and right-side panels designed to direct massive amounts of fresh air directly to your high-end CPU and GPU.
Core Specifications
Platform Details
- • Form Factor: Dual-Chamber Mid-Tower
- • Motherboard Support: Mini-ITX, Micro-ATX, ATX
- • Material: SGCC Steel, Tempered Glass
- • Expansion Slots: 7 Standard Slots
Storage Capacity
- • 2.5" Drive Bays: 4 + 2
- • 3.5" Drive Bays: 2
Clearances
Hardware Headroom
- • Max GPU Length: Up to 435 mm
- • Max CPU Cooler Height: Up to 165 mm
- • Max PSU Length: Up to 200 mm
Cable Management
- • Routing Space: 91 mm of cable routing depth in the secondary chamber for incredibly easy and clean building.
Cooling Capacity
Included & Max Fans
- • Included Fans: 3x 120mm F120 RGB Core (Side) + 1x 120mm F120Q (Rear)
- • Total Fan Capacity: Up to 10x 120mm or 4x 140mm + 2x 120mm
Radiator Support
- • Top: Up to 360 mm
- • Side: Up to 360 mm
- • Bottom: Up to 360 mm
Physical & I/O
Front Panel Ports
- • USB Type-C: 1x USB 3.2 Gen 2 Type-C
- • USB Type-A: 2x USB 3.2 Gen 1 Type-A
- • Audio: 1x Headset Audio Jack
Dimensions & Aesthetic
- • Dimensions (W x H x D): 290 x 495 x 466 mm (With Feet)
- • Color Profile: Matte Black
- • Warranty: 2 Years Local Manufacturer Warranty
