CASE | CHASSIS

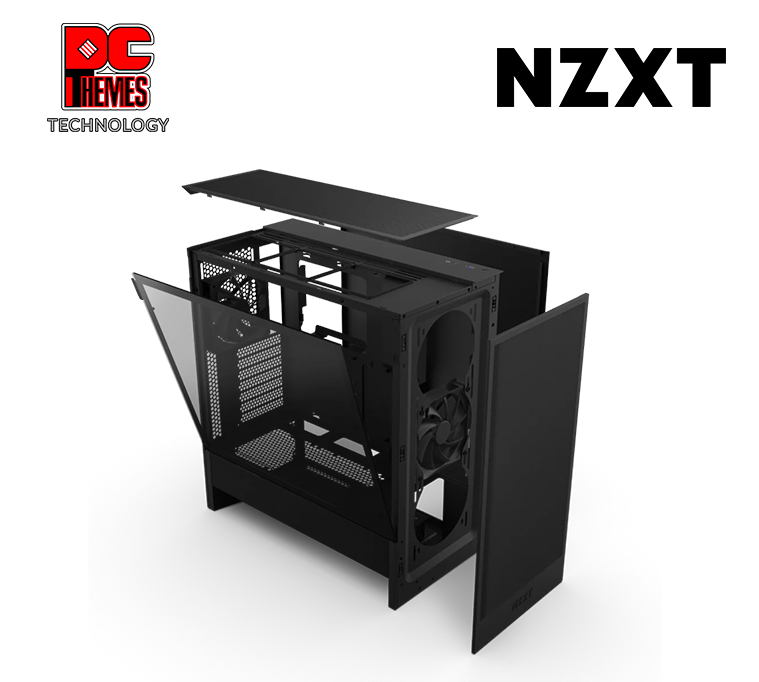

NZXT H5 Flow Tempered Glass Casing (2024) - Black
- $99.00
| NZXT H5 Flow Tempered Glass Casing -Black | |
|---|---|
| Chassis Form Factor | Mid-Tower |
| Supported Motherboards | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Case Material | SGCC Steel, Dark Tinted Tempered Glass |
| Dimensions | 465 mm (H) x 225 mm (W) x 430 mm (D) |
| Weight | 7.28 kg |
| Expansion Slots | 7 Standard |
| Drive Bays | 2 x 2.5 inch, 1 x 3.5 inch |
| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 200 mm |
| Front Panel I/O | 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Type-A, 1x Headset Audio Jack |
| Radiator Compatibility | Up to 360 mm (Front), Up to 240 mm (Top - 280 mm with low-profile memory) |
| Fan Support | Up to 3x 120 mm / 2x 140 mm (Front), 2x 120 mm / 2x 140 mm (Top), 2x 120 mm (Bottom), 1x 120 mm (Rear) |
| Included Fans | 2x F120Q Airflow Case Version (1 Front, 1 Rear) |
| Warranty | 2 years |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
NZXT
H5 Flow Tempered Glass Casing (2024) - Black
Unique Features
- » Maximized Airflow: The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans, while ultra-fine mesh panels on the top, front, and side filter dust and maximize airflow.
- » Generous Radiator Support: Engineered for powerful liquid cooling potential, supporting up to a 360mm radiator in the front and up to a 240mm radiator at the top.
- » Quiet Out-of-the-Box Cooling: Comes equipped with two 120mm F120Q (Case Version) quiet airflow fans pre-installed—one in the front and one in the rear.
- » Effortless Cable Management: Easily route and conceal your cables using the wide channels, built-in hooks, and straps, featuring up to 28.7 mm of cable management space.
Core Specifications
Platform Details
- • Form Factor: Compact ATX Mid-Tower
- • Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (Up to 277 mm wide)
- • Material: SGCC Steel, Dark Tinted Tempered Glass
- • Expansion Slots: 7 Standard (0 Vertical)
- • Back-Connect Ready: No
Storage Capacity
- • 2.5" Drive Bays: 2
- • 3.5" Drive Bays: 1
- • Total SATA Support: Up to 3 drives
Clearances
Hardware Headroom
- • Max GPU Length: Up to 410 mm
- • Max CPU Cooler Height: Up to 170 mm
- • Max PSU Length: Up to 200 mm
- • Top Radiator + Fan Thickness: Up to 55 mm
Cable Management
- • Clearance Depth: Up to 28.7 mm of dedicated cable routing space for an incredibly clean build.
- • Management Features: Extra-wide channels, built-in straps, and hooks.
Cooling Capacity
Included & Max Fans
- • Included Fans: 2x 120mm F120Q Case Version (1 Front, 1 Rear)
- • Total Fan Capacity: Up to 8 fans total
- • Front Fan Support: 3x 120mm or 2x 140mm
- • Top Fan Support: 2x 120mm or 2x 140mm
- • Bottom Fan Support: 2x 120mm
- • Rear Fan Support: 1x 120mm
Radiator Support
- • Front: Up to 360 mm
- • Top: Up to 240 mm (280mm with low-profile memory only)
- • Rear: Up to 120 mm
Physical & I/O
Front Panel Ports
- • USB Type-C: 1x USB 3.2 Gen 2x2 Type-C (20 Gbps)
- • USB Type-A: 1x USB 3.2 Type-A
- • Audio: 1x Headset Audio Jack
- • Power Button: Included
Dimensions & Aesthetic
- • Height (with Feet): 465 mm (18.31 in)
- • Width: 225 mm (8.86 in)
- • Depth: 430 mm (16.93 in)
- • Weight: 7.28 kg (16.04 lb)
- • Color Profile: Black (with Dark Tinted Tempered Glass)
- • Warranty: 2 Years
