CASE | CHASSIS

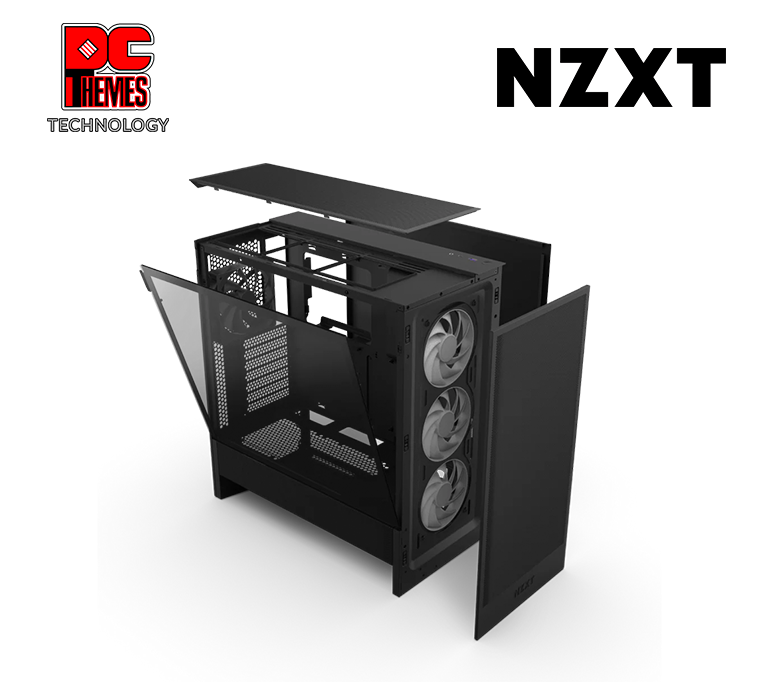

NZXT H5 Flow RGB Tempered Glass Casing (2024) - Black
- $129.00
| NZXT H5 Flow RGB Tempered Glass Casing (2024) - Black | |
|---|---|
| Form Factor & Support | Compact Mid-Tower | Supports Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 277mm) |
| Dedicated GPU Cooling | Features a fully perforated PSU shroud supporting 2x 120mm bottom fans to pull fresh air from below and blast it directly at your graphics card |
| Included Fans | 1x F360 RGB Core single-frame fan (3x 120mm front intake) for simplified cabling and 1x F120Q Quiet Airflow Fan (Rear exhaust) pre-installed |
| Cooling & Radiator Capacity | Mounts up to 8x 120mm fans | Up to 360mm radiator support in the Front and 280mm on Top |
| Front Panel I/O | 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x Headset Audio Combo Jack, Power Button |
| Storage Options | 1x 3.5" HDD mount and 2x 2.5" SSD mounts |
| Hardware Clearances | GPU Length: Up to 410mm | CPU Cooler Height: Up to 170mm | PSU Length: Up to 200mm |
| Cable Management | Intuitive cable routing system with wide channels, built-in hooks, and straps for an effortless and clean build process |
| Aesthetics & Panels | Ultra-fine mesh front, top, and side panels for maximum thermal exhaust, combined with a seamless tempered glass side showcase panel |
| Dimensions & Material | Approx. 465mm (L) x 225mm (W) x 430mm (H) | SGCC Steel, Ultra-Clear Tempered Glass (Black Edition) |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
NZXT
H5 Flow RGB Tempered Glass Casing (2024) - Black
Unique Features
- » Brilliant RGB Cooling Out-of-the-Box: Comes equipped with an F360 RGB Core single-frame fan (3x 120mm) in the front for stunning lighting and massive intake, plus one 120mm F120Q quiet airflow fan in the rear.
- » Maximized Airflow Design: The PSU shroud is perforated on the side and bottom to enable optimal air intake, while ultra-fine mesh panels on the top, front, and side filter dust without restricting performance.
- » Generous Radiator Support: Engineered for powerful liquid cooling potential, easily accommodating up to a 360mm radiator in the front and up to a 240mm radiator at the top.
- » Effortless Cable Management: Intuitively route and conceal your cables using the extra-wide channels, built-in hooks, and straps, featuring up to 28.7 mm of dedicated cable management space.
Core Specifications
Platform Details
- • Form Factor: Compact ATX Mid-Tower
- • Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (Up to 277 mm wide)
- • Material: SGCC Steel, Dark Tinted Tempered Glass
- • Expansion Slots: 7 Standard
Storage Capacity
- • 2.5" Drive Bays: 2
- • 3.5" Drive Bays: 1
- • Total SATA Support: Up to 3 drives
Clearances
Hardware Headroom
- • Max GPU Length: Up to 410 mm
- • Max CPU Cooler Height: Up to 170 mm
- • Max PSU Length: Up to 200 mm
- • Top Radiator + Fan Clearance: Up to 55 mm
Cable Management
- • Clearance Depth: Up to 28.7 mm of dedicated cable routing space behind the motherboard tray.
- • Management Features: Optimized channels, built-in straps, and tie-down hooks.
Cooling Capacity
Included & Max Fans
- • Included Fans: 1x F360 RGB Core Single-Frame Fan (Front) + 1x 120mm F120Q Case Version (Rear)
- • Total Fan Capacity: Up to 8x 120mm fans total
- • Front Fan Support: 3x 120mm or 2x 140mm
- • Top Fan Support: 2x 120mm or 2x 140mm
- • Bottom Fan Support: 2x 120mm
- • Rear Fan Support: 1x 120mm
Radiator Support
- • Front: Up to 360 mm
- • Top: Up to 240 mm (280mm supported with low-profile memory only)
- • Rear: Up to 120 mm
Physical & I/O
Front Panel Ports
- • USB Type-C: 1x USB 3.2 Gen 2 Type-C
- • USB Type-A: 1x USB 3.2 Gen 1 Type-A
- • Audio: 1x Combo Headset Jack (Mic + Headphones)
- • Power Button: Included
Dimensions & Aesthetic
- • Height (with Feet): 465 mm (18.31 in)
- • Width: 225 mm (8.86 in)
- • Depth: 430 mm (16.93 in)
- • Color Profile: Black (with Dark Tinted Tempered Glass)
- • Warranty: 2 Years Local Manufacturer Warranty
