MSI PRO H610M-G WI-FI D5 LGA1700 MOTHERBOARD
- $199.00
| MSI PRO H610M-G WIFI Motherboard Specifications | |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| Processor Support | Intel Core 14th, 13th, 12th Gen, Pentium Gold, Celeron |
| Form Factor | Micro-ATX (M-ATX) |
| Memory Type | DDR5 |
| Memory Speed | Up to 5600 MHz |
| Memory Circuit | Memory Boost - Fully Isolated DDR Circuit |
| PCIe | PCIe 4.0 (Lightning Gen 4, Up to 64GB/s Bandwidth) |
| Wireless | Wi-Fi 6E with 6GHz, MU-MIMO, BSS Color, Up to 2400Mbps |
| Video Outputs | HDMI, DisplayPort, VGA (Digital & Legacy Support) |
| Audio | Audio Boost - Studio-Grade Sound Quality |
| Power Design | Core Boost - Premium Digital Power Design |
| Cooling Solution | Frozr AI Cooling |
| Hardware Protection | Steel Armor - VGA Protection & EMI Shielding |
| Wireless Features | Wi-Fi 6E with Advanced Antenna, Multi-User Technology |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI

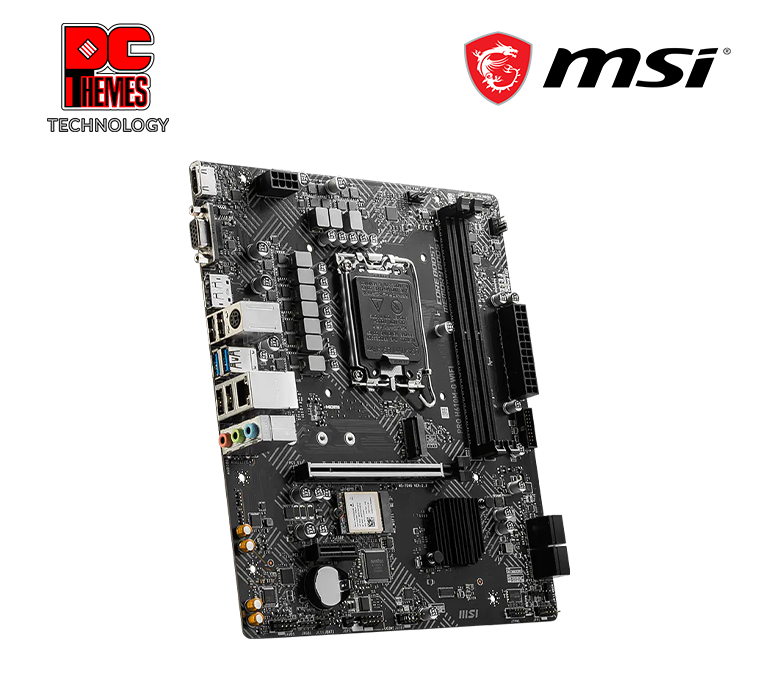

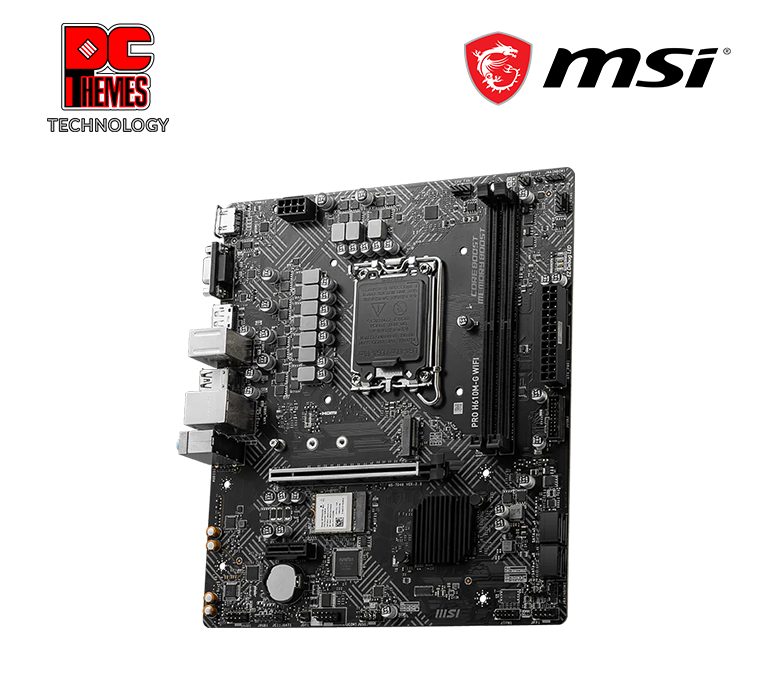

PRO H610M-G WIFI Motherboard
Unique Features
- » Intel H610 & LGA 1700: Broad compatibility supporting Intel® Core™ 14th, 13th, and 12th Gen Processors, plus Pentium® Gold and Celeron® processors.
- » Next-Gen DDR5 Memory: Features dual DDR5 memory slots supporting up to 96GB at 5600 MHz, bringing higher bandwidth and power efficiency to your workspace.
- » Advanced Wireless: Outfitted with Wi-Fi 6E (6GHz band) and Bluetooth® 5.3 for robust, low-latency wireless networking.
- » Lightning Fast Experience: Equipped with a PCIe 4.0 x16 slot for modern graphics cards and versatile storage including an M.2 slot (PCIe 3.0 x4) and four SATA 6G ports.
Core Specifications
Processor & Chipset
- • Socket: LGA 1700
- • Chipset: INTEL H610
- • CPU Support: 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron®
Memory & Expansion
- • Memory: 2x DDR5, Up to 96GB (5600 MHz)
- • PCIe x16: 1x Slot (PCIe 4.0 x16 from CPU)
- • PCIe x1: 1x Slot (PCIe 3.0 x1 from Chipset)
Storage & Networking
Storage Options
- • M.2 Slots: 1x M.2 (Supports PCIe 3.0 x4 / SATA mode, sizes 2242/2260/2280)
- • SATA Ports: 4x SATA 6Gb/s
Network & Wireless
- • LAN: Intel® I219V 1Gbps LAN controller
- • Wi-Fi: Wi-Fi 6E (Supports 2.4GHz / 5GHz / 6GHz up to 2.4Gbps)
- • Bluetooth: Bluetooth® 5.3
Rear I/O & Audio

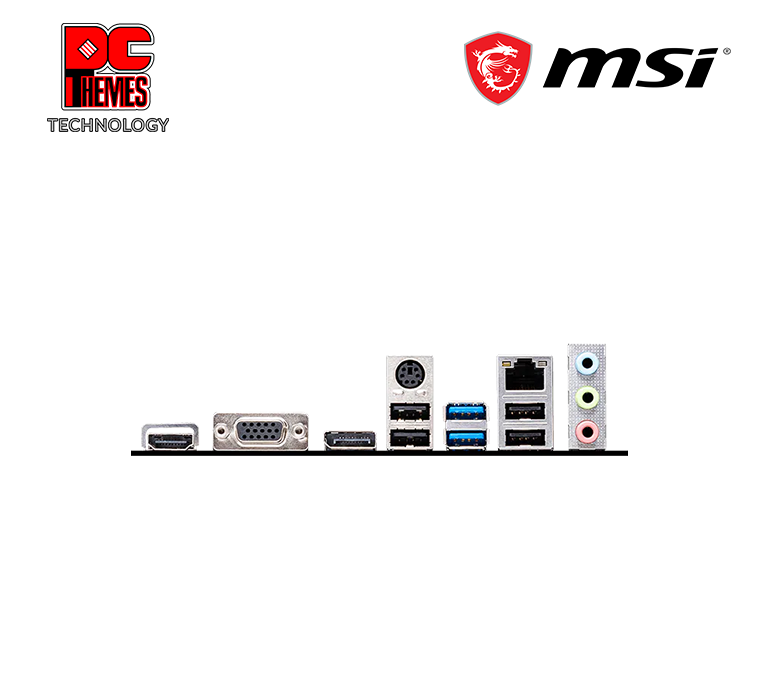

Rear Panel Ports
- • Display: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA
- • USB Ports: 2x USB 3.2 Gen 1 (5Gbps) Type-A, 4x USB 2.0
- • Other: 1x LAN (RJ45), Keyboard/Mouse PS/2 Combo Port
Audio Details
- • Codec: Realtek® ALC897 Codec
- • Output: 7.1-Channel High Definition Audio
Physical & DIY
Form Factor
- • Form Factor: mATX (Micro-ATX)
- • Dimensions: 211 mm x 243.84 mm
Builder Friendly
- • Troubleshooting: 4x EZ Debug LED
- • Lighting: 1x RGB LED connector, 2x Addressable RGB LED connectors (JRAINBOW)
