MOTHERBOARD
MSI PRO B860M-A WI-FI LGA1851 MOTHERBOARD
- $359.00
| MSI PRO B860M-A WIFI Micro-ATX Motherboard Specifications | |
|---|---|
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra (Series 2) |
| Form Factor | Micro-ATX (M-ATX) |
| Memory Type | DDR5 Dual Channel |
| Memory Speed | 8800+ MT/s (Overclocked) |
| Memory Features | XMP Support, Memory Boost, Memory Extension Mode |
| M.2 Storage | Lightning Gen 5 x4 M.2 (PCIe 5.0) |
| M.2 Cooling | M.2 Shield Frozr II |
| M.2 Installation | Tool-Free EZ M.2 Clip II |
| PCIe Slot | PCIe 5.0 x16 with Steel Armor Reinforcement |
| GPU Power Connector | PCIe Supplemental Power for High-End GPUs |
| VRM Design | 12+1+1+1 Duet Rail Power System with P-PAK |
| CPU Power Connectors | 8+4-pin CPU Power Connector |
| PCB | 6-Layer Server-Grade PCB |
| Thermal Pads | 7W/mK MOSFET Pads & Additional Choke Pads |
| Heatsinks | Extended VRM Heatsink & Chipset Heatsink |
| Fan Headers | Combo Fan/Pump Header (Auto-Detect), Pump Fan Support |
| Wi-Fi | Intel Wi-Fi 7 with EZ Antenna |
| LAN | 5G LAN |
| Thunderbolt | One Thunderbolt 4 Port |
| USB Headers | Front USB Type-C Header |
| Audio | Audio Boost with Isolated Audio Structure |
| RGB Lighting | A-RAINBOW V2 (5V ARGB), 12V RGB, Ambient Link |
| I/O Shield | Pre-Installed I/O Shield |
| BIOS | Click BIOS X |
| Software & Utilities | MSI Center, MSI Driver Utility Installer, 60-Day AIDA64 Extreme Trial |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
PRO B860M-A WIFI Motherboard
Unique Features
- » Intel B860 & LGA 1851: Supports the latest Intel® Core™ Ultra Processors (Series 2) on the highly efficient B860 chipset tailored for professionals.
- » Blazing Fast Memory: Four DDR5 UDIMM slots supporting massive 256GB capacities with speeds accelerating up to 8800+ MT/s (OC).
- » Future-Proof Connectivity: Break speed barriers with Intel® Wi-Fi 7, Realtek 5G LAN, and a rear Thunderbolt™ 4 port supporting 40Gbps transfers.
- » PCIe 5.0 Readiness: Outfitted with a primary PCIe 5.0 x16 slot for next-gen GPUs and a PCIe 5.0 x4 M.2 slot to maximize ultra-fast storage speeds.
Core Specifications
Processor & Chipset
- • Socket: LGA 1851
- • Chipset: INTEL B860
- • CPU Support: Intel® Core™ Ultra Processors (Series 2)
Memory & Expansion
- • Memory: 4x DDR5 UDIMM, Up to 256GB (Max OC 8800+ MT/s)
- • Primary Slot: 1x PCIe 5.0 x16 (From CPU)
- • Other Slots: 3x PCIe 4.0 slots (2x running at x1, 1x running at x4)
Storage & Networking
Storage Options
- • M.2 Slots: 3x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2)
- • SATA Ports: 4x SATA 6G
- • RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA devices
Network & Wireless
- • LAN: Realtek® 8126 5Gbps LAN
- • Wi-Fi: Intel® Wi-Fi 7 (Supports up to 5.8Gbps / 320MHz)
- • Bluetooth: Bluetooth® 5.4

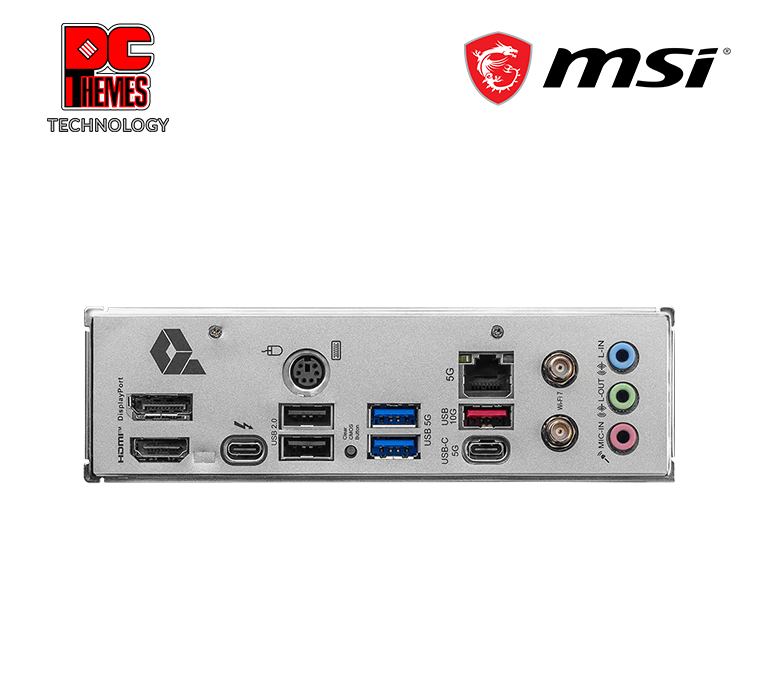

Rear I/O & Audio
Rear Panel Ports
- • Thunderbolt: 1x Thunderbolt™ 4 40Gbps (Type-C)
- • Display: 1x HDMI™ 2.1, 1x DisplayPort 1.4
- • USB Ports: 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 1x USB 5Gbps (Type-C), 2x USB 2.0
- • Other: Clear CMOS Button, 5G LAN, Audio Connectors
Audio Details
- • Codec: Realtek® ALC897 Codec
- • Output: 7.1-Channel High Definition Audio
Physical & DIY
Form Factor
- • Form Factor: mATX (Micro-ATX)
- • Dimensions: 243.84 mm x 243.84 mm
Builder Friendly
- • Diagnostic Tools: 4x EZ Debug LED, 1x EZ Memory Detection LED
- • Lighting Support: 1x RGB LED connector, 2x Addressable V2 RGB LED connectors (JARGB_V2)
