MOTHERBOARD
MSI MPG Z890 CARBON WIFI LGA1851 MOTHERBOARD
- $1,089.00
| MSI MPG Z890 CARBON WIFI ATX Motherboard Specifications | |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Speed | Up to 9200+ MT/s (Overclocked) |
| Memory Features | XMP Support, Memory Boost, Memory Extension Mode (Performance, Benchmark, Memtest, High Efficiency) |
| M.2 Storage | PCIe 5.0 M.2 (Lightning Gen 5) & PCIe 4.0 M.2 Slots |
| M.2 Cooling | Double-Sided M.2 Shield Frozr, EZ M.2 Shield Frozr II, EZ M.2 Clip II |
| PCIe Slot | PCIe 5.0 with Steel Armor II Reinforcement |
| VRM Design | Direct 20+1+1+1 Phases, 110A Smart Power Stage (Vcore) |
| CPU Power Connectors | Dual 8-pin CPU Power Connectors |
| PCIe Power Connector | Supplemental 8-pin PCIe Power for High-Power GPUs |
| PCB | 8-Layer with 2oz Thickened Copper |
| Thermal Pads | 7W/mK MOSFET Thermal Pads |
| Power Protection | TVS, OCP, Solid-Pin Power Connectors |
| Heatsinks | Extended Heatsink with Heat Pipe, Enlarged PCH Heatsink |
| Fan Headers | Combo Fan Header (Pump or Fan), JAF_2 EZ Conn, System Fan Headers |
| Wi-Fi | Wi-Fi 7 (Windows 11 Only) |
| LAN | Intel Killer 5G LAN & 2.5G LAN |
| Thunderbolt | Thunderbolt 4 (Thunderbolt 5 Ready, Card Not Included) |
| USB Type-C | Front USB Type-C with 27W PD (Super Charger+) |
| Audio | Audio Boost 4 with ALC1220P, Headphone Amp, S/PDIF, Isolated Audio |
| RGB Lighting | A-RAINBOW V2 (5V ARGB), RGB Header, Ambient Link |
| Onboard Buttons | Smart Button, Flash BIOS Button, Clear CMOS Button |
| EZ LED Switch | EZ LED Switch for Lighting Control |
| BIOS Features | Click BIOS X with EZ Mode & Advanced Mode, Game Boost, AI Boost, U-Key |
| Software Suite | MSI Center, Driver Utility Installer, Killer Performance Suite |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
MPG Z890 CARBON WIFI Motherboard
Premium Features
- » Next-Gen Processing: Engineered for Intel® Core™ Ultra Processors (Series 2) utilizing the LGA 1851 socket and INTEL Z890 chipset with Direct 20+1+1+1 phases VRM power.
- » High-Speed Memory: Supports up to 256GB of DDR5 memory with blazing speeds up to 9200+ MT/s (OC), fully compatible with Intel® XMP 3.0 and CUDIMM.
- » Lightning Connectivity: Features Dual LAN (Intel® Killer™ 5G + 2.5G), cutting-edge Wi-Fi 7, Bluetooth 5.4, and Dual Thunderbolt™ 4 connectivity.
- » Robust Storage Options: Equipped with 5x M.2 slots (including one PCIe 5.0 x4 slot for maximum bandwidth) alongside 4x SATA 6G ports with RAID support.
Core Specifications
Processor & Chipset
- • Chipset: INTEL Z890
- • CPU Support: Intel® Core™ Ultra Processors (Series 2)
- • Socket: LGA 1851
Memory
- • Capacity: 4x DDR5 UDIMM, Max 256GB
- • Speed: Up to 9200+ MT/s (OC)
- • Features: Intel® XMP 3.0, CUDIMM, Dual-Channel mode
Expansion & Storage
Expansion Slots
- • PCIe 5.0 x16: 2x Slots (PCI_E1 up to x16, PCI_E2 up to x8 from CPU)
- • PCIe 4.0 x16: 1x Slot (PCI_E3 supports up to x4 from Chipset)
Storage Options
- • M.2 Slots: 5x total (M.2_1 PCIe 5.0 x4 via CPU, M.2_2 PCIe 4.0 x4 via CPU, M.2_3/4/5 PCIe 4.0 x4 via Chipset)
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, 1, 5, 10 for NVMe & SATA
Connectivity & I/O
Networking & Audio
- • Dual LAN: Intel® Killer™ E5000B 5Gbps LAN + Intel® I226V 2.5Gbps LAN
- • Wireless: Intel® Killer™ BE1750x Wi-Fi 7 + Bluetooth® 5.4
- • Audio: Realtek® ALC1220P Codec (7.1-Channel USB High Definition Audio)

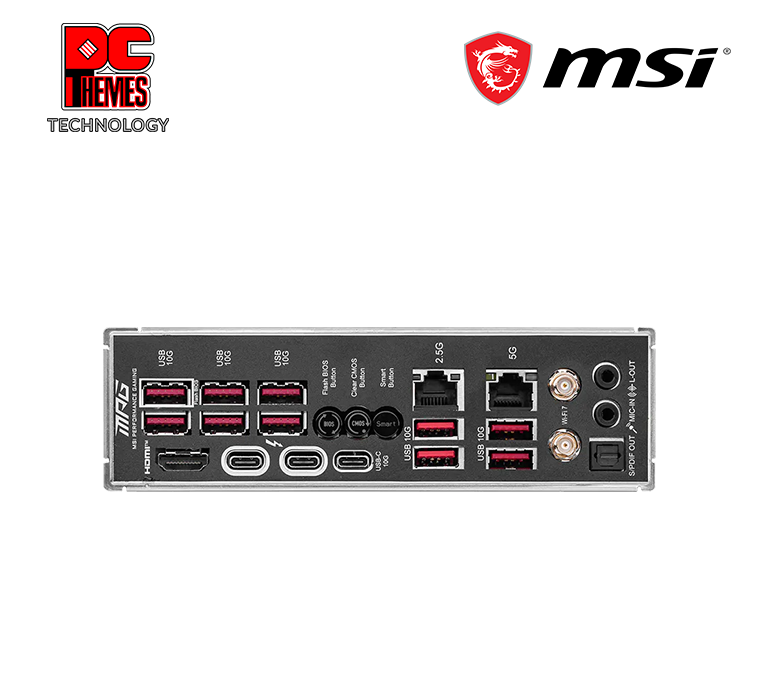

Rear Panel Ports
- • Thunderbolt: 2x Thunderbolt™ 4 40Gbps (Type-C)
- • USB: 10x Type-A (10Gbps), 1x Type-C (10Gbps)
- • Display: 1x HDMI™ 2.1
- • Other: Flash BIOS Button, Clear CMOS Button, Smart Button, Optical S/PDIF Out
Internal & Physical
Internal Connectors
- • Power: 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIe (Supplemental)
- • Front USB: 1x Type-C 20Gbps (with 27W PD Quick Charge), 4x Type-A 5Gbps, 4x USB 2.0
- • Cooling/RGB: 1x CPU Fan, 1x Pump Fan, 5x System Fan, 1x Water Flow, 3x ARGB V2, 1x RGB LED
Form Factor Details
- • Form Factor: ATX
- • Dimensions: 243.84mm x 304.8mm
- • Feature LEDs: 4x EZ Debug LED, 1x EZ Digit Debug LED
