MOTHERBOARD

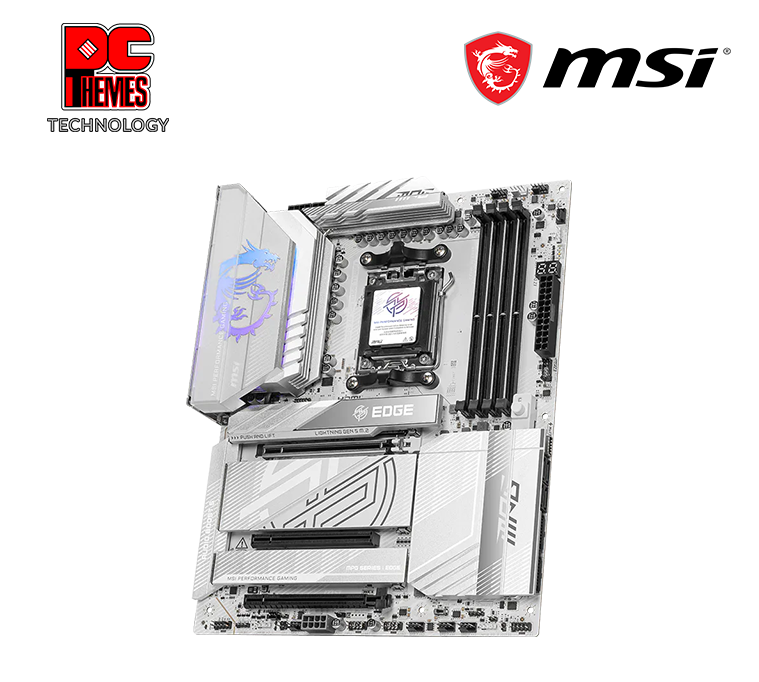

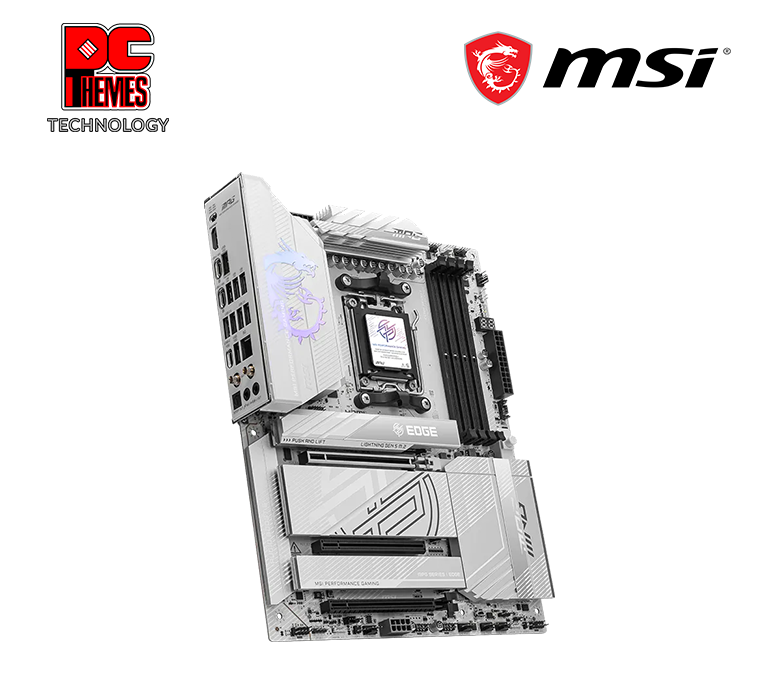

MSI MPG X870E EDGE TI WI-FI AM5 MOTHERBOARD
- $779.00
| MSI MPG X870E EDGE TI WIFI ATX Motherboard Specifications | |
|---|---|
| Chipset | AMD X870E |
| Socket | Socket AM5 |
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Form Factor | ATX |
| Memory Type | DDR5 (Dual Channel) |
| Memory Speed | Overclockable to 8400+ MT/s |
| Memory Features | EXPO/A-XMP Support, Memory Boost, Latency Killer (up to 12% lower memory latency) |
| Memory Timing Modes | Performance, Benchmark, Memtest, High-Efficiency Modes |
| M.2 Storage | 2x PCIe 5.0 M.2 & 2x PCIe 4.0 M.2 Slots |
| M.2 Cooling | Double-Sided M.2 Shield Frozr, EZ M.2 Shield Frozr II, EZ M.2 Clip II |
| Primary PCIe Slot | PCIe 5.0 x16 with Steel Armor II & SMT Construction |
| PCIe Readiness | PCIe 5.1 Ready |
| VRM Design | 14+2+1 Duet Rail Power System (14x 80A Vcore, 2x SoC, 1x Misc) |
| CPU Power Connectors | Dual 8-pin CPU Power Connectors |
| Supplemental Power | PCIe Supplemental Power Connector, ATX 3.1 Ready |
| Power Features | Digital Power, Core Boost |
| Thermal Management | Extended VRM Heatsink with Heat Pipe, 7W/mK MOSFET Pads, Enlarged PCH Heatsink |
| Cooling Software | Frozr AI Cooling, Cooling Wizard |
| Fan Headers | Combo Fan Header, EZ Conn JAF_2 (3A Fan Power), Pump-Fan Header, System Fan Headers |
| LAN | 5G LAN with AI LAN Manager |
| Wi-Fi | Wi-Fi 7 (Windows 11 Only) with EZ Antenna & Magnetic Stand |
| USB4/Thunderbolt | USB4 (Lightning USB 40G) |
| USB Type-C | Front USB Type-C with 27W PD via Super Charger+ |
| Audio | |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
MPG X870E EDGE TI WIFI Motherboard
Unique Features
- » AMD X870E & AM5 Socket: Built for top-tier AMD performance, fully supporting AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
- » Extreme DDR5 Performance: Push the limits with EXPO and CUDIMM support, achieving memory overclocking speeds up to 8400+ MT/s.
- » Premium Networking Ecosystem: Experience blazing-fast internet and competitive gaming with Realtek® 5G LAN and cutting-edge Wi-Fi 7 (up to 5.8Gbps).
- » Ultimate Connectivity: Features dual rear USB4® Type-C ports (40Gbps), plus dual PCIe 5.0 M.2 slots for massive next-gen NVMe storage configurations.
Core Specifications
Processor & Chipset
- • Socket: AM5
- • Chipset: AMD X870E
- • CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory & Expansion
- • Memory: 4x DDR5 UDIMM, Up to 256GB (Max OC 8400+ MT/s, EXPO & CUDIMM Support)
- • Primary Slot: 1x PCIe 5.0 x16 slot (From CPU)
- • Other Slots: 1x PCIe 4.0 x4 slot, 1x PCIe 3.0 x1 slot
Storage & Networking
Storage Options
- • M.2 Slots: 4x M.2 Slots Total (2x PCIe 5.0 x4, 2x PCIe 4.0 x4)
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1, 5, 10 for NVMe M.2
Network & Wireless
- • LAN: 1x Realtek® 8126 5G LAN
- • Wi-Fi: Wi-Fi 7 Module (320MHz, up to 5.8Gbps)
- • Bluetooth: Bluetooth® 5.4

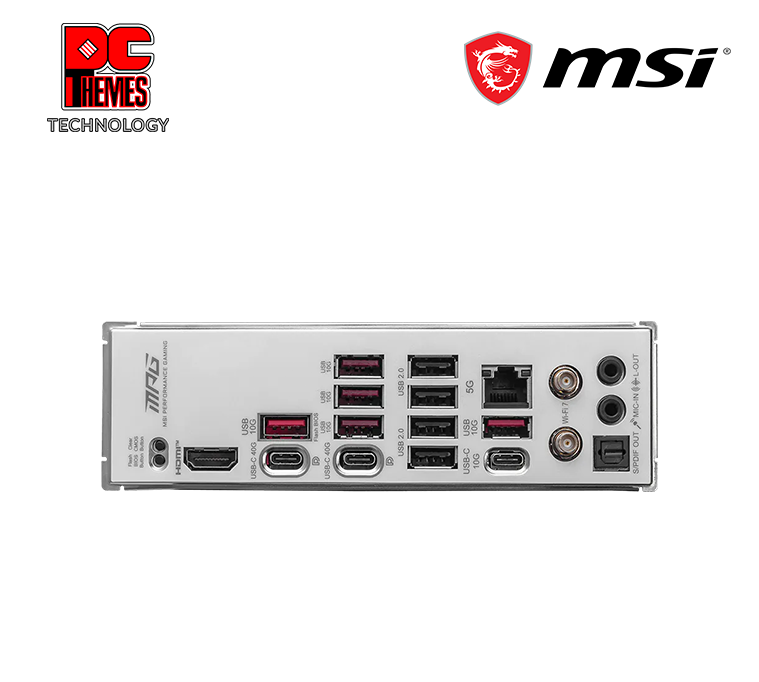

Rear I/O & Audio
Rear Panel Ports
- • USB4: 2x USB 40Gbps (Type-C, DisplayPort 1.4 support)
- • Display: 1x HDMI™ 2.1 (8K@60Hz FRL)
- • USB Ports: 5x USB 10Gbps (Type-A), 1x USB 10Gbps (Type-C), 4x USB 2.0 (Type-A)
- • Other: Flash BIOS Button, Clear CMOS Button, 5G LAN
Audio Details
- • Codec: Realtek® ALC4080 Codec
