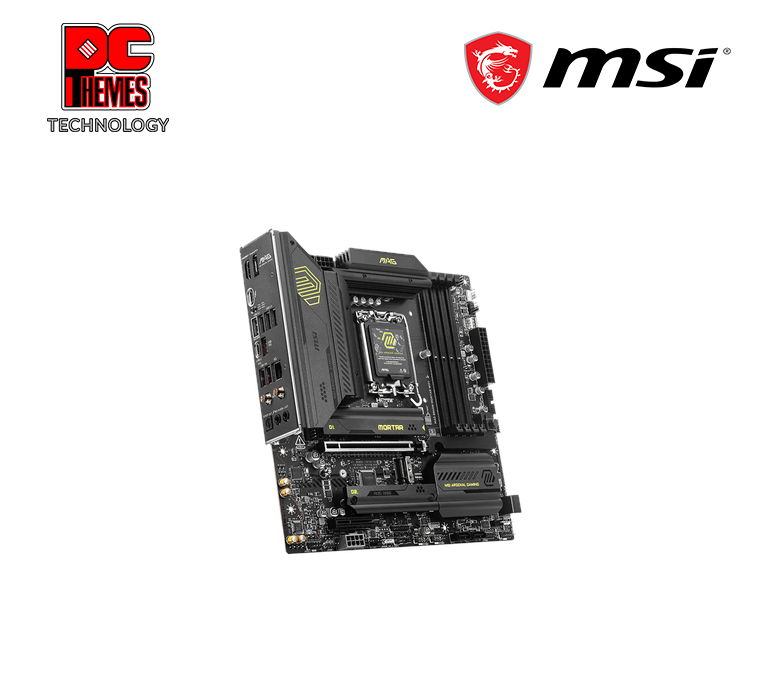

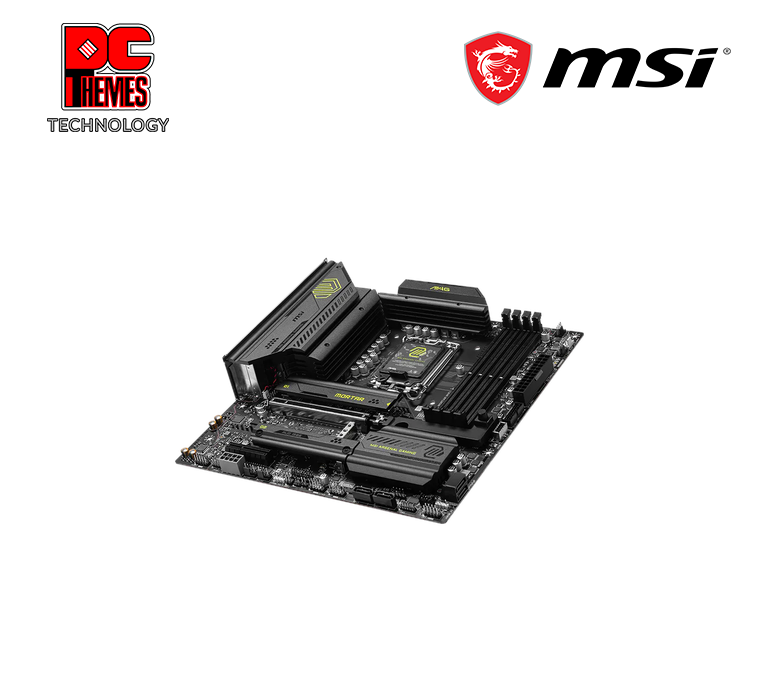

MSI MAG B860 MORTAR WIFI LGA1851 MOTHERBOARD
- $449.00
| MSI MAG B860M MORTAR WIFI Micro-ATX Motherboard Specifications | |
|---|---|
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | Micro-ATX (mATX) |
| Memory Type | DDR5 (Dual Channel) |
| Memory Speed | 9200+ MT/s (Overclocked) |
| Memory Features | XMP Support, Memory Boost, Memory Extension Mode |
| M.2 Storage Slots | 1x PCIe 5.0 M.2 (Lightning Gen 5 x4) & 2x PCIe 4.0 M.2 |
| M.2 Cooling | EZ M.2 Shield Frozr II |
| Primary PCIe Slot | PCIe 5.0 x16 with Steel Armor II Reinforcement |
| PCIe Supplemental Power | PCIe Supplemental Power Connector for High-Power GPUs |
| VRM Design | 12+1+1+1 Duet Rail Power System with 60A DrMOS |
| CPU Power Connectors | Dual 8-pin CPU Power Connectors |
| Power Features | Core Boost Technology |
| PCB Construction | 6-Layer Server-Grade Material with 2oz Thickened Copper |
| Thermal Management | 7W/mK MOSFET Thermal Pads, Choke Thermal Pads, Extended Heatsink, Enlarged Chipset Heatsink |
| Fan Headers | Combo Pump/Fan Header (Auto-Detect), EZ Conn JAF_1, Pump Fan Support |
| LAN | Intel Killer 5G LAN |
| Wi-Fi | Intel Killer Wi-Fi 7 |
| Antenna | EZ Antenna with Magnetic Stand |
| Thunderbolt | 1x Thunderbolt 4 Port (40 Gbps) |
| Audio | Audio Boost with High-Quality Capacitors, Isolated Audio Signal, De-Pop Protection |
| I/O Shield | Pre-Installed, Stainless Steel |
| BIOS | Click BIOS X with Flash BIOS and Clear CMOS Buttons |
| Software Suite | MSI Center |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
MAG B860M MORTAR WIFI Motherboard
Premium Features
- » Next-Gen Processing: Ready for Intel® Core™ Ultra Processors (Series 2) utilizing the LGA 1851 socket and the Intel B860 chipset.
- » High-Speed Memory: Supports up to 256GB of DDR5 memory with blazing speeds up to 9200+ MT/s (OC), fully compatible with Intel XMP 3.0 and CUDIMM.
- » Lightning Connectivity: Features ultra-fast Intel® Killer™ 5G LAN, cutting-edge Wi-Fi 7, Bluetooth 5.4, and Thunderbolt™ 4 connectivity.
- » Robust Storage Options: Equipped with 3x M.2 slots (including a PCIe 5.0 x4 slot for maximum bandwidth) alongside 4x SATA 6G ports with RAID support.
Core Specifications
Processor & Chipset
- • Chipset: INTEL B860
- • CPU Support: Intel® Core™ Ultra Processors (Series 2)
- • Socket: LGA 1851
Memory
- • Capacity: 4x DDR5 UDIMM, Max 256GB
- • Speed: Up to 9200+ MT/s (OC)
- • Features: Intel® XMP 3.0, CUDIMM, Dual-Channel mode
Expansion & Storage
Expansion Slots
- • PCIe 5.0 x16: 1x Slot (PCI_E1 supports up to x16 from CPU)
- • PCIe 4.0 x4: 1x Slot (PCI_E2 supports up to x4 from Chipset)
Storage Options
- • M.2 Slots: 3x total (1x PCIe 5.0 x4, 2x PCIe 4.0 x4)
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, 1, 5, 10 for SATA storage devices
Connectivity & I/O
Networking & Audio
- • LAN: Intel® Killer™ E5000 5Gbps LAN
- • Wireless: Intel® Killer™ BE1750x Wi-Fi 7 + Bluetooth® 5.4
- • Audio: Realtek® ALC897 Codec (7.1-Channel High Definition Audio)

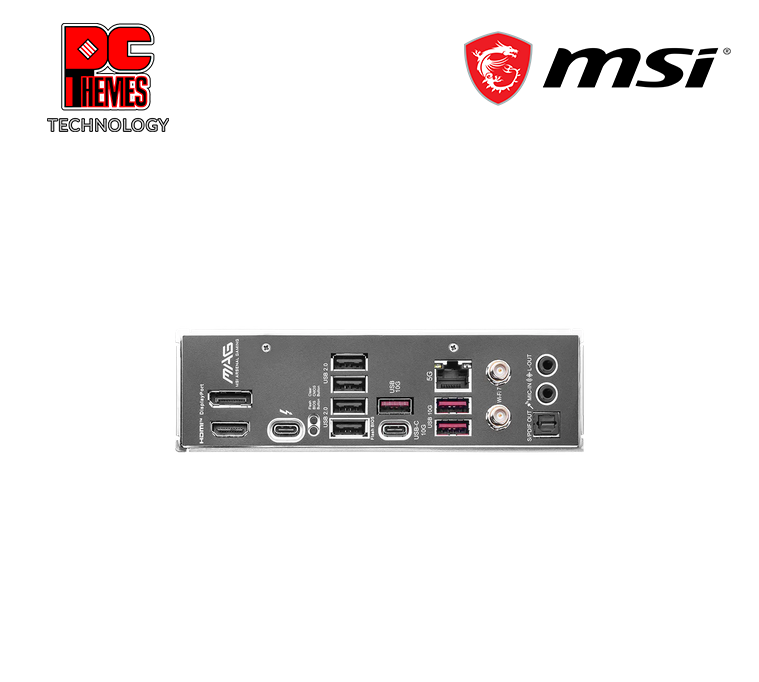

Rear Panel Ports
- • Thunderbolt: 1x Thunderbolt™ 4 Type-C (40Gbps)
- • USB 10Gbps: 1x Type-C (10Gbps), 3x Type-A (10Gbps)
- • Display: 1x HDMI™ 2.1 (8K), 1x DisplayPort 1.4 (4K), 1x Type-C DisplayPort
- • Other: Flash BIOS Button, Clear CMOS, Optical S/PDIF-OUT, 4x USB 2.0
Internal & Physical
Internal Connectors
- • Power: 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIe
- • Front USB: 1x Type-C 10Gbps, 2x Type-A 5Gbps, 4x USB 2.0
- • Cooling/RGB: 4x System Fan, 1x Combo Fan, 3x Addressable V2 RGB, 1x RGB LED
Form Factor Details
- • Form Factor: mATX
- • Dimensions: 243.84mm x 243.84mm
- • Feature LEDs: 4x EZ Debug LED, 1x EZ Memory Detection LED
