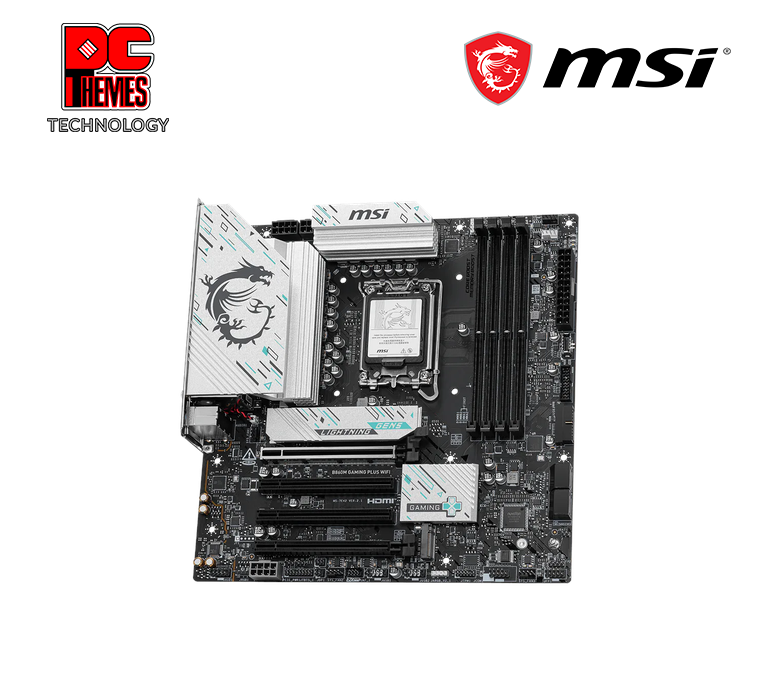

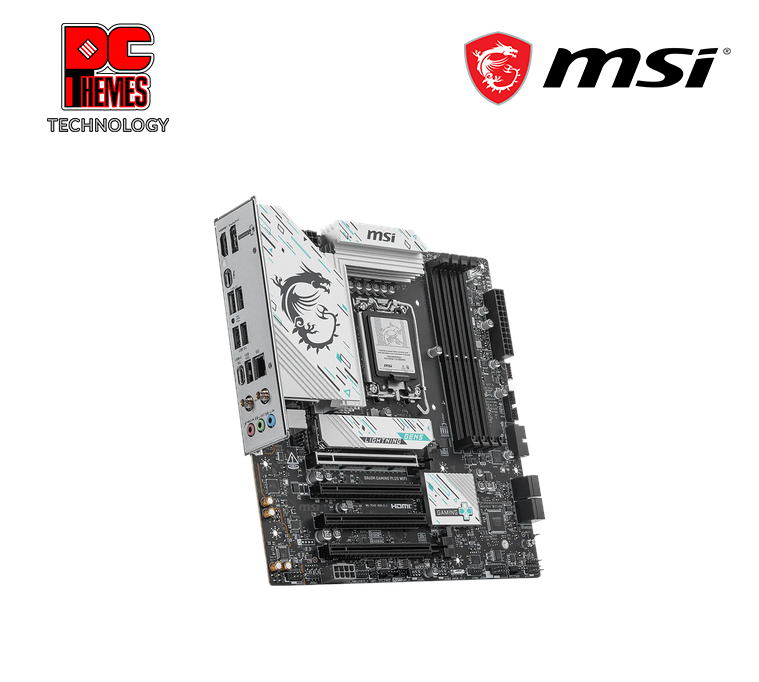

MSI B860M GAMING PLUS WI-FI LGA1851 MOTHERBOARD

$369.00

MSI B860M GAMING PLUS WIFI Micro-ATX Motherboard Specifications
Chipset	Intel B860
Socket	LGA 1851
CPU Support	Intel Core Ultra Processors (Series 2)
Form Factor	Micro-ATX (mATX)
Memory Type	DDR5 (Dual Channel)
Memory Speed	Up to 8800+ MT/s (Overclocked)
Memory Features	XMP Support, Memory Boost, Memory Extension Mode
M.2 Storage Slots	3 M.2 Connectors (Lightning Gen 5 x4 M.2 Support)
M.2 Cooling	EZ M.2 Shield Frozr II, EZ M.2 Clip II
Primary PCIe Slot	PCIe 5.0 x16 with Steel Armor Reinforcement
PCIe Supplemental Power	Dedicated PCIe Power Connector for High-Power GPUs
VRM Design	12+1+1+1 Duet Rail Power System with P-PAK
CPU Power Connectors	8+4-pin CPU Power
Power Protection & Features	Core Boost, TVS Protection, Overcurrent Protection, Solid-Pin Power Connectors
PCB Construction	6-Layer Server-Grade PCB
Thermal Management	7W/mK MOSFET Pads, Choke Pads, Extended Heatsink, Chipset Heatsink, Heavy-Plated VRM Heatsink
Fan Headers	Combo Fan/Pump Header, EZ Conn JAF_1 for Additional Fan & ARGB Headers, Auto-Detect DC/PWM
LAN	Intel Killer 5G LAN
Wi-Fi	Intel Killer Wi-Fi 7 (Windows 11 Only for Some Features)
Thunderbolt	Thunderbolt 4 Port, Thunderbolt 5 Ready
USB Type-C	Front USB Type-C Header
Audio	Audio Boost with High-Definition Processor, High-Quality Capacitors & Jacks, Isolated Audio, De-Pop Protection
RGB Lighting	ARGB & RGB Header Support
Diagnostics	EZ Debug LED, EZ Memory Detection LED, Clear CMOS Button
DIY Features	Pre-Installed I/O Shield, EZ PCIe Clip II, EZ Antenna
BIOS	Click BIOS X
Software Suite	MSI Center, Driver Utility Installer

Quantity

Share Now

Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

0 reviews / Write a review

Description
Reviews (0)

MSI
B860M GAMING PLUS WIFI Motherboard

Premium Features

» Next-Gen Processing: Ready for Intel® Core™ Ultra Processors (Series 2) utilizing the LGA 1851 socket and the robust Intel B860 chipset.
» High-Speed Memory: Supports up to 256GB of DDR5 memory with blazing speeds up to 8800+ MT/s (OC), fully compatible with Intel XMP 3.0 and CUDIMM.
» Lightning Connectivity: Features ultra-fast Intel® Killer™ 5G LAN, cutting-edge Wi-Fi 7, Bluetooth 5.4, and Thunderbolt™ 4 connectivity.
» Robust Storage Options: Equipped with 3x M.2 slots (including a PCIe 5.0 x4 slot for maximum bandwidth) alongside 4x SATA 6G ports with RAID support.

Core Specifications

Processor & Chipset

• Chipset: INTEL B860
• CPU Support: Intel® Core™ Ultra Processors (Series 2)
• Socket: LGA 1851

Memory

• Capacity: 4x DDR5 UDIMM, Max 256GB
• Speed: Up to 8800+ MT/s (OC)
• Features: Intel® XMP 3.0, CUDIMM, Dual-Channel mode

Expansion & Storage

Expansion Slots

• PCIe 5.0 x16: 1x Slot (PCI_E1 supports up to x16 from CPU)
• PCIe 4.0 x4: 1x Slot (PCI_E4 supports up to x4 from Chipset)
• PCIe 4.0 x1: 2x Slots (PCI_E2 & PCI_E3 from Chipset)

Storage Options

• M.2 Slots: 3x total (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x2)
• SATA Ports: 4x SATA 6Gb/s
• RAID Support: RAID 0, 1, 5, 10 for SATA storage devices

Connectivity & I/O

Networking & Audio

• LAN: Intel® Killer™ E5000 5Gbps LAN
• Wireless: Intel® Killer™ BE1750x Wi-Fi 7 + Bluetooth® 5.4
• Audio: Realtek® ALC897 Codec (7.1-Channel High Definition Audio)

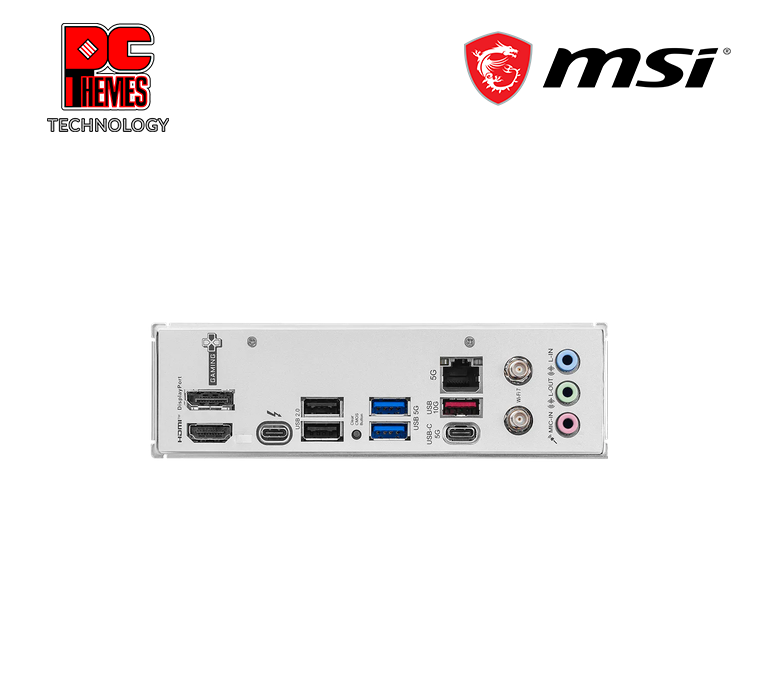

Rear Panel Ports

• Thunderbolt: 1x Thunderbolt™ 4 Type-C (40Gbps)
• USB 10Gbps/5Gbps: 1x Type-A (10Gbps), 1x Type-C (5Gbps), 2x Type-A (5Gbps)
• Display: 1x HDMI™ 2.1 (4K), 1x DisplayPort 1.4 (4K), 1x Type-C DisplayPort
• Other: Clear CMOS Button, Audio Connectors, 2x USB 2.0

Internal & Physical

Internal Connectors

• Power: 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIe
• Front USB: 1x Type-C 10Gbps, 4x Type-A 5Gbps, 4x USB 2.0
• Cooling/RGB: 3x System Fan, 1x Combo Fan, 2x Addressable V2 RGB, 1x RGB LED
