AMD Motherboard

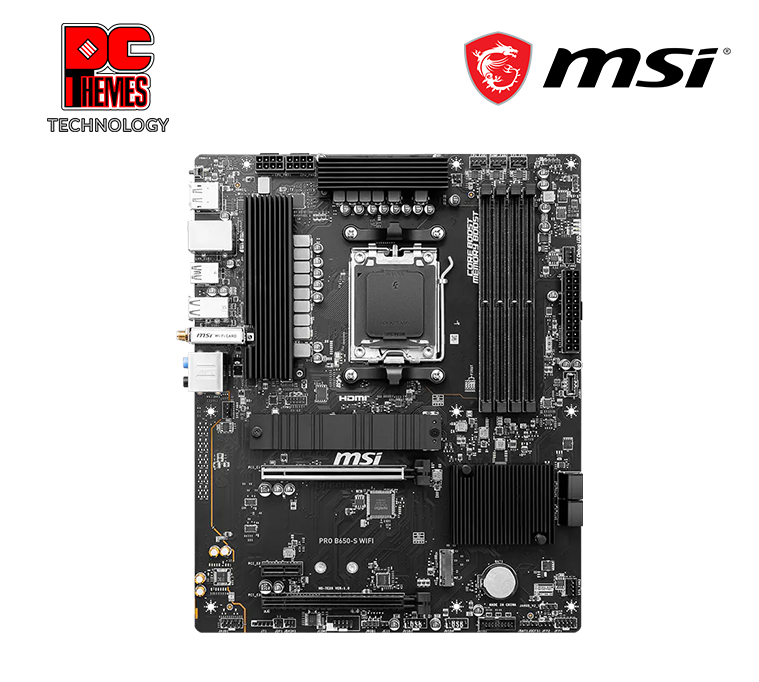

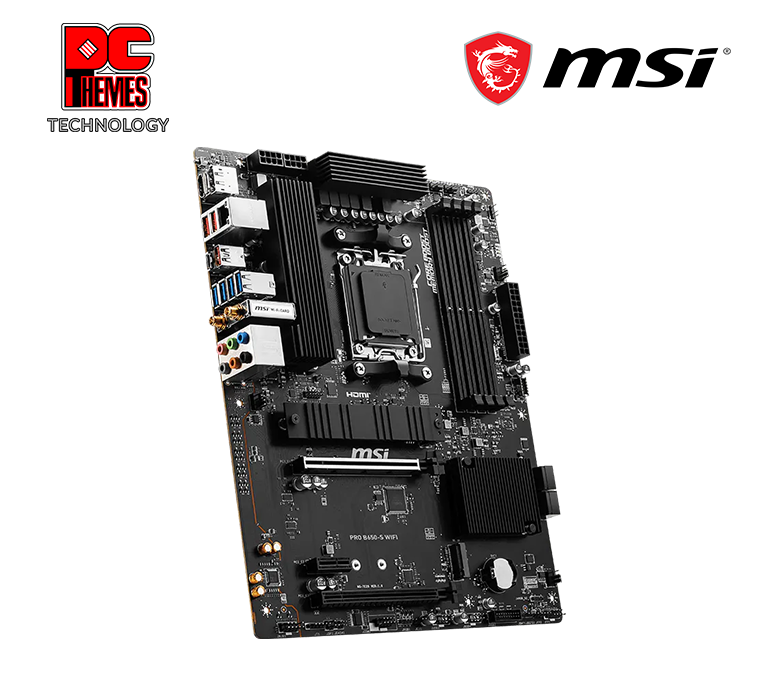

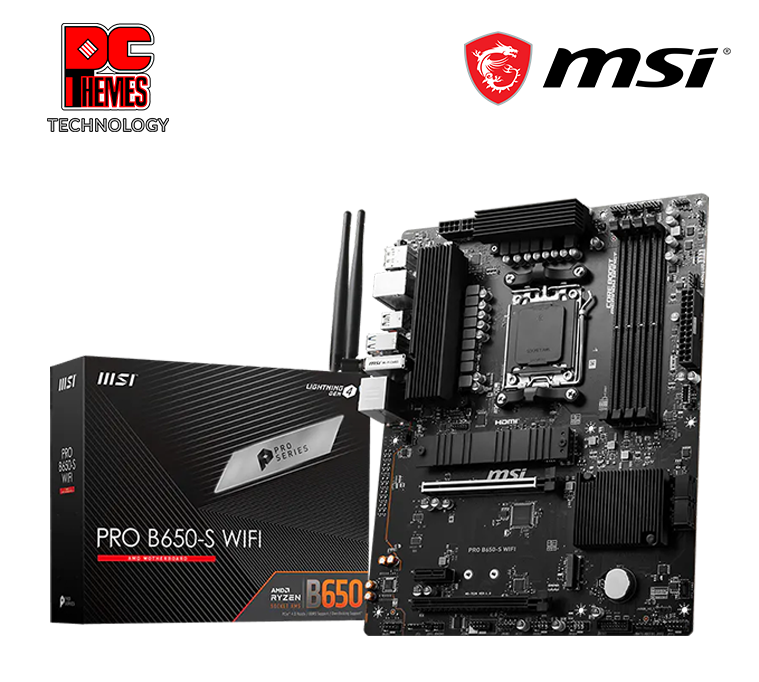

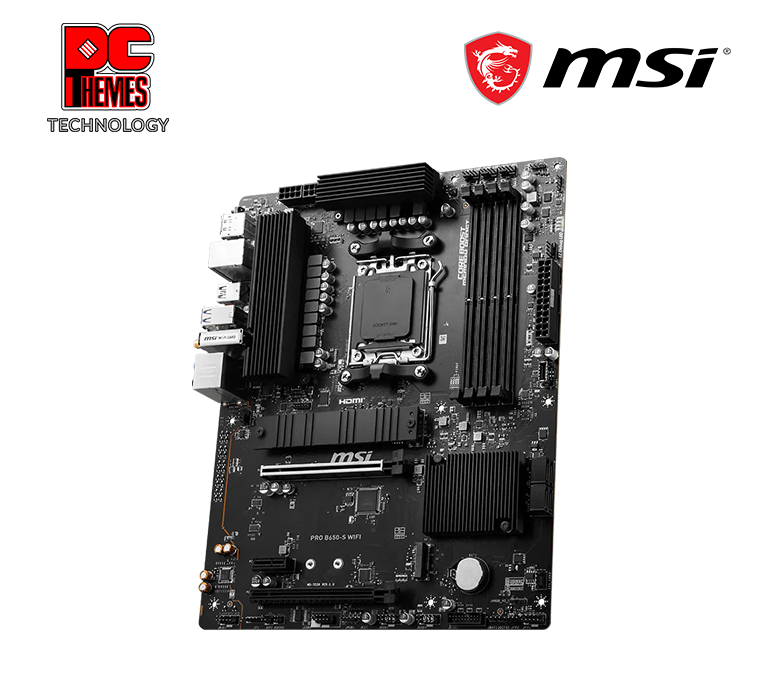

MSI PRO B650-S WI-FI AM5 MOTHERBOARD
- $305.00
| MSI PRO B650-S WIFI ATX Motherboard Specifications | |
|---|---|
| Chipset | AMD B650 |
| Socket | AM5 |
| CPU Support | AMD Ryzen 9000, 8000, 7000 Series |
| Form Factor | ATX |
| Memory Type | DDR5 Dual Channel |
| Memory Speed | 7200+ MHz (Overclocked) |
| Memory Features | EXPO Support, Memory Boost, Latency Killer (Up to 12% Reduction) |
| M.2 Storage | Lightning Gen 4 x4 M.2 (PCIe 4.0) |
| M.2 Cooling | M.2 Shield Frozr Thermal Protection |
| PCIe Slots | PCIe 4.0 with Steel Armor & XL Clip (64GB/s Bandwidth) |
| VRM Design | 12+2 Duet Rail Power System with P-PAK |
| CPU Power Connectors | Dual 8-pin CPU Power Connectors |
| Power Features | Core Boost & Memory Boost |
| PCB | 6-Layer with 2oz Thickened Copper |
| Thermal Pads | 7W/mK MOSFET Thermal Pads |
| Heatsinks | Heavy-Plated VRM Heatsink, Chipset Heatsink, M.2 Shield Frozr |
| Fan & Pump Headers | Fan Control in BIOS & Software, Pump Header (Up to 3A) |
| USB | Lightning USB 20G (USB 3.2 Gen 2x2), Front USB Type-C Header |
| LAN | 2.5G LAN |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Audio | Audio Boost with HD Processor, Quality Capacitors, Isolated Audio, De-Pop |
| Video Outputs | HDMI 2.1 & DisplayPort 1.4 |
| RGB Lighting | A-RAINBOW V2 (5V ARGB), 12V RGB, Ambient Link Headers |
| Protection Features | Double ESD Protection, Keep-Out Zone, EZ Debug LED |
| BIOS | Click BIOS 5 with Flash BIOS Button |
| Additional Features | M-FLASH, Resizable BAR, Windows 11 Certified, 60-Day AIDA64 Extreme Trial |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
PRO B650-S WIFI Motherboard
Unique Features
- » AMD AM5 & B650 Chipset: Provides a robust foundation supporting AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors for top-tier computing power.
- » DDR5 Performance: Four memory slots handling up to 256GB with massive overclocking overhead up to 7200+ MHz, fully compatible with AMD EXPO™.
- » Advanced Networking: Experience flawless online connections via the Realtek® 2.5G LAN and built-in Wi-Fi 6E alongside Bluetooth® 5.3.
- » Lightning Gen 4 Solution: Both primary PCIe x16 and dual M.2 slots operate on PCIe 4.0 bandwidth for blistering GPU performance and SSD data transfers.
Core Specifications
Processor & Chipset
- • Socket: AM5
- • Chipset: AMD B650
- • CPU Support: AMD Ryzen™ 9000/ 8000/ 7000 Series Processors
Memory & Expansion
- • Memory: 4x DDR5, Up to 256GB (Max OC 7200+ MHz)
- • Primary Slot: 1x PCIe 4.0 x16 slot (From CPU)
- • Other Slots: 1x PCIe 4.0 x4 (in x16 slot), 1x PCIe 3.0 x1
Storage & Networking
Storage Options
- • M.2 Slots: 2x M.2 (Both PCIe 4.0 x4 directly from CPU)
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, RAID 1 for SATA and M.2 NVMe storage
Network & Wireless
- • LAN: Realtek® 8125BG 2.5G LAN
- • Wi-Fi: Wi-Fi 6E (Supports 2.4GHz / 5GHz / 6GHz bands)
- • Bluetooth: Bluetooth® 5.3

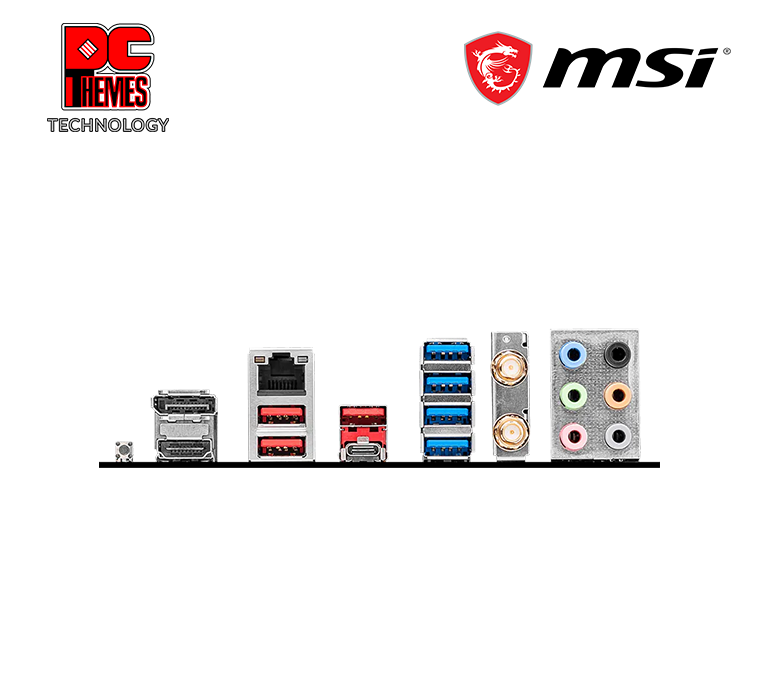

Rear I/O & Audio
Rear Panel Ports
- • Display: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
- • USB Ports: 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A)
- • Other: Flash BIOS Button, 2.5G LAN, Wi-Fi Antennas, Audio Connectors
Audio Details
- • Codec: Realtek® ALC897 Codec
- • Output: 7.1-Channel High Definition Audio
