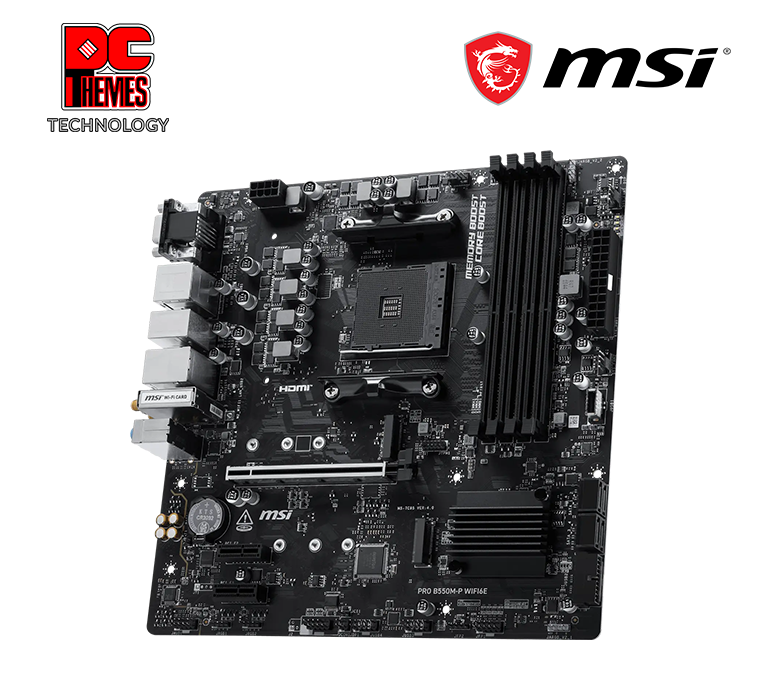

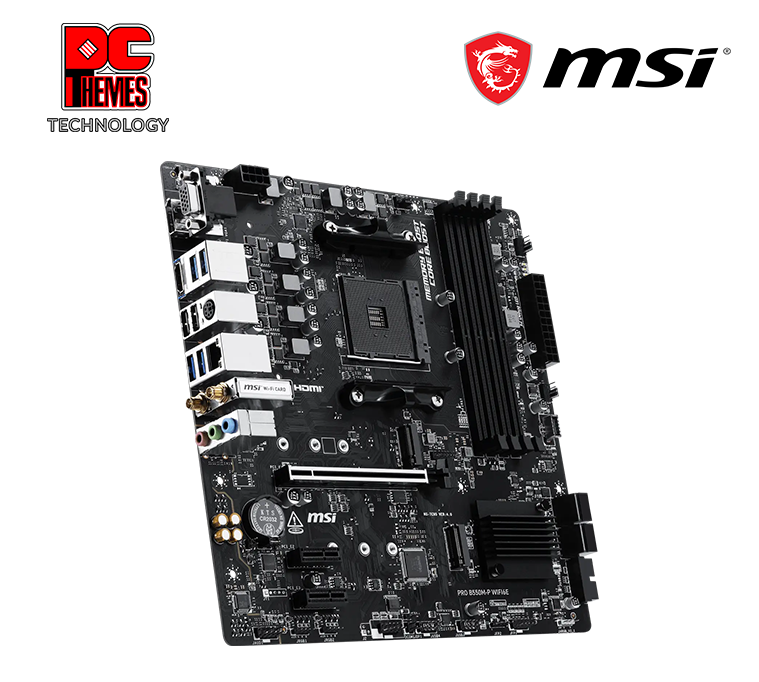

MSI PRO B550M-P WIFI 6E AM4 MOTHERBOARD
- $179.00
| MSI PRO B550M-P WIFI6E Micro-ATX Motherboard Specifications | |
|---|---|
| Chipset | AMD B550 |
| Socket | AM4 |
| CPU Support | Ryzen 5000, 5000G, 4000G, 3000 Series |
| Form Factor | Micro-ATX (M-ATX) |
| Memory Type | DDR4 |
| Memory Speed | 4400+ MT/s (Overclocked) |
| Memory Features | Memory Boost - Isolated DDR4 Circuit Design |
| M.2 Storage | Lightning Gen 4 x4 M.2 (PCIe 4.0) |
| PCIe Slot | PCIe 4.0 with Steel Armor Reinforcement |
| Power Design | Core Boost with Load-Line Calibration |
| Power Connectors | Solid-Pin 8-pin & 24-pin Power Connectors |
| Power Protection | Overvoltage, TVS, OCP, Power Phase Grounding |
| Chipset Heatsink | Chipset Heatsink with Thermal Design |
| Cooling Features | Frozr AI Cooling, Auto DC/PWM Fan Detection |
| Fan Headers | CPU Fan Header & System Fan Header |
| Wi-Fi | Wi-Fi 6E |
| LAN Management | MSI AI LAN Manager - Latency Prioritization |
| USB Headers | Front USB Type-C Header |
| Audio | Audio Boost with Quality Capacitors, Isolated Audio, De-Pop Protection |
| RGB Lighting | Mystic Light with A-RAINBOW V2 (5V ARGB), 12V RGB, Ambient Link |
| Debugging | EZ Debug LED, EZ Mounting, M.2 Signal Source Labels |
| BIOS | Click BIOS 5 with A-XMP, M-Flash, Hardware Monitor, Memory Try It |
| Software & Trials | MSI Center, 60-Day AIDA64 Extreme Trial, 60-Day Norton 360 Trial |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
PRO B550M-P WIFI6E Motherboard
Unique Features
- » AMD B550 & AM4 Socket: Excellent compatibility for AMD Ryzen™ 5000 & 3000 Series, plus 4000 G-Series desktop processors, ideal for reliable business and home builds.
- » DDR4 Memory Boost: Four DDR4 memory slots supporting up to 128GB capacity with impressive A-XMP overclocking speeds up to 4400+ MHz.
- » Advanced Connectivity: Stay wirelessly connected with integrated Wi-Fi 6E (6GHz band support) and Bluetooth® 5.3 alongside a Realtek® Gigabit LAN port.
- » Lightning Gen 4 Ready: Unleash fast data speeds with a PCIe 4.0 x16 primary slot for graphics cards and a PCIe 4.0 x4 M.2 slot for maximum SSD performance.
Core Specifications
Processor & Chipset
- • Socket: AM4
- • Chipset: AMD B550
- • CPU Support: AMD Ryzen™ 5000/4000-G/3000 Series (Not compatible with Ryzen 5 3400G & Ryzen 3 3200G)
Memory & Expansion
- • Memory: 4x DDR4, Up to 128GB (Max OC 4400+ MHz via A-XMP)
- • Primary Slot: 1x PCIe 4.0/3.0 x16 slot (Depends on CPU)
- • Other Slots: 2x PCIe 3.0 x1 slots (From Chipset)
Storage & Networking
Storage Options
- • M.2 Slots: 2x M.2 (M.2_1 up to PCIe 4.0 x4/SATA, M.2_2 up to PCIe 3.0 x4)
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, RAID 1, and RAID 10 for SATA devices
Network & Wireless
- • LAN: Realtek® RTL8111H 1Gbps LAN
- • Wi-Fi: Wi-Fi 6E (Supports 2.4GHz / 5GHz / 6GHz)
- • Bluetooth: Bluetooth® 5.3
Rear I/O & Audio

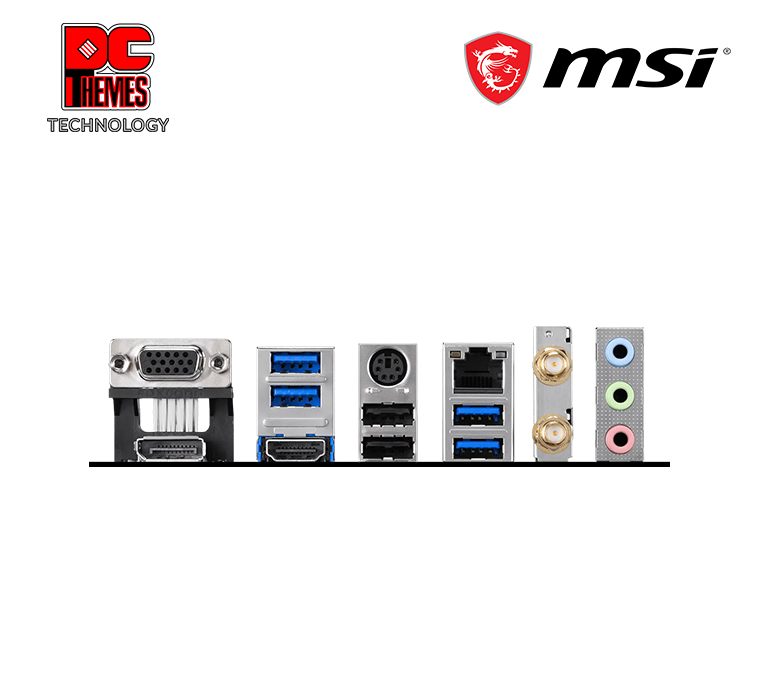

Rear Panel Ports
- • Display: 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4, 1x VGA
- • USB Ports: 4x USB 5Gbps (Type-A), 2x USB 2.0
- • Other: 1Gbps LAN, Keyboard/Mouse PS/2 combo, Wi-Fi Antennas, Audio Connectors
Audio Details
- • Codec: Realtek® ALC897 Codec
- • Output: 7.1-Channel High Definition Audio
Physical & DIY
Form Factor
- • Form Factor: mATX (Micro-ATX)
- • Dimensions: 243.84 mm x 243.84 mm
Builder Friendly
- • Diagnostic Tools: 4x EZ Debug LED
- • Lighting Support: 2x RGB LED connectors, 2x Addressable V2 RGB LED connectors (JARGB_V2)
