AMD Motherboard

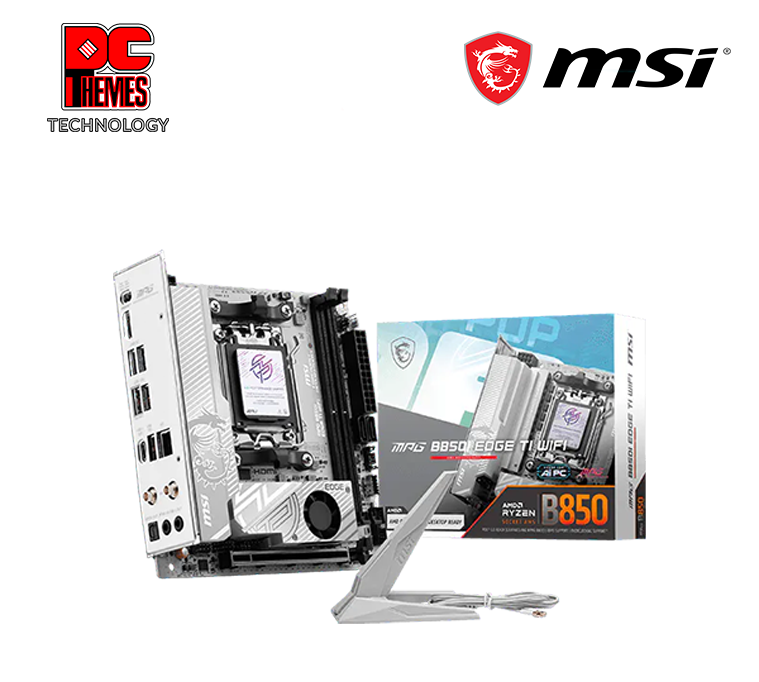

MSI MPG B850I EDGE TI WI-FI AM5 MOTHERBOARD
- $429.00
| MSI MPG B850I EDGE TI WIFI Mini-ITX Motherboard Specifications | |
|---|---|
| Chipset | AMD B850 |
| Socket | Socket AM5 |
| CPU Support | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Form Factor | Mini-ITX |
| Memory Type | DDR5 (Dual Channel) |
| Memory Speed | Up to 8200+ MT/s (Overclocked) |
| Memory Profiles | EXPO & A-XMP Support |
| Memory Features | Memory Boost, High-Efficiency Mode, Latency Killer (up to 12% latency reduction) |
| M.2 Storage Slots | 1x PCIe 5.0 M.2 & 1x PCIe 4.0 M.2 |
| M.2 Cooling | M.2 Shield Frozr |
| Primary PCIe Slot | PCIe 5.0 x16 with Steel Armor Reinforced Soldering |
| VRM Design | Direct 8+2+1 Phase VRM with 90A Smart Power Stage (Vcore) |
| Power Connectors | Dual Power Connectors with Solid-Pin Design |
| PCB Construction | 10-Layer PCB with 2oz Thickened Copper |
| MOSFET Thermal Pads | 7W/mK |
| Heatsinks | Frozr Heatsink, Enlarged Heatsink Design |
| Fan Headers | Combo Fan Header (Pump or PWM/DC Fan Auto-Detect), EZ Conn JAF_2 |
| Wi-Fi | Wi-Fi 7 (320 MHz 6 GHz Channel, Windows 11 Only) with EZ Antenna & Magnetic Stand |
| LAN | 5G LAN with AI LAN Manager for Traffic Prioritization |
| USB Type-C | USB 20Gbps Type-C (Lightning USB 20G) |
| Audio | Audio Boost 5 with Realtek ALC4080, Dedicated Headphone Amp, Isolated Audio |
| RGB Lighting | Mystic Light, A-RAINBOW V2 (5V ARGB), 12V RGB, Ambient Link Headers |
| BIOS Features | Click BIOS X with One-Click Overclocking (Game Boost, AI Boost, EXPO) |
| Diagnostics & DIY | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, EZ Memory Detection LED, Pre-Installed I/O Shield, Stainless Steel I/O Shield |
| Platform Type | Compact AMD Gaming & Content Creation Motherboard |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
MPG B850I EDGE TI WIFI Motherboard
Unique Features
- » AMD B850 & AM5 Socket: Next-gen Mini-ITX powerhouse, fully supporting AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
- » Compact DDR5 Performance: Unlock massive memory bandwidth with two DDR5 slots supporting AMD EXPO and CUDIMM, with extreme overclocking speeds up to 8200+ MT/s.
- » Premium Networking Ecosystem: Dominate competitive matches with the Realtek® 8126 5G LAN and cutting-edge Wi-Fi 7 (up to 5.8Gbps).
- » Small Form-Factor Connectivity: Features a rear USB 20Gbps Type-C port, plus dual M.2 slots (including one PCIe 5.0 x4) for high-speed NVMe storage.
Core Specifications
Processor & Chipset
- • Socket: AM5
- • Chipset: AMD B850
- • CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory & Expansion
- • Memory: 2x DDR5 UDIMM, Up to 128GB (Max OC 8200+ MT/s, EXPO & CUDIMM Support)
- • Primary Slot: 1x PCIe 5.0 x16 slot (From CPU)
Storage & Networking
Storage Options
- • M.2 Slots: 2x M.2 Slots Total (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)
- • SATA Ports: 2x SATA 6Gb/s
- • RAID Support: RAID 0 and RAID 1 for SATA and M.2 NVMe storage devices
Network & Wireless
- • LAN: 1x Realtek® 8126 5G LAN
- • Wi-Fi: Wi-Fi 7 Module (320MHz, up to 5.8Gbps)
- • Bluetooth: Bluetooth® 5.4
Rear I/O & Audio
Rear Panel Ports
- • Display: 1x HDMI™ 2.1 (8K@60Hz FRL)
- • USB Type-C: 1x USB 20Gbps (Type-C)
- • USB Type-A: 3x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A)
- • Other: Flash BIOS Button, Clear CMOS Button, 5G LAN
Audio Details
- • Codec: Realtek® ALC4080 Codec
- • Output: 7.1-Channel USB High-Performance Audio, Optical S/PDIF Out
Physical & DIY
Form Factor
- • Form Factor: Mini-ITX
- • Dimensions: 170 mm x 170 mm
Builder Friendly
- • Diagnostic Tools: 4x EZ Debug LED, 1x EZ Memory Detection LED
- • Front I/O Support: Header for 1x USB 10Gbps Type-C port
