AMD Motherboard

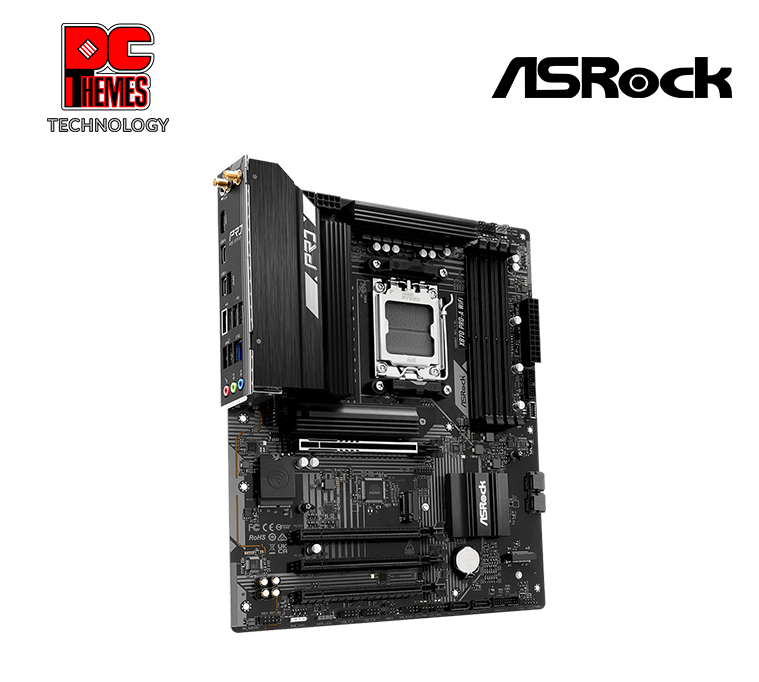

ASRock X870 PRO-A WIFI7 Motherboard
- $309.00
| ASRock X870 Pro-A WiFi Motherboard | |
|---|---|
| Model | X870 Pro-A WiFi |
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots (Up to 8000+ OC), Max. capacity: 256GB |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1, 2 x USB4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) with Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless & Bluetooth | 802.11be Wi-Fi 7 Module, Supports Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot, 3 x PCIe 4.0 x16 Slots |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 Socket (PCIe Gen3x2 & SATA3), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 2 x USB 3.2 Gen2 Type-A, 5 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 2 x USB4 Type-C, 2 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm), 8 Layer PCB |
| OS Support | Microsoft Windows® 10 64-bit / 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
X870 Pro-A WiFi AM5 ATX Motherboard
Unique Features
- » Superb Productivity: Supports blazing fast PCIe Gen5 for both Graphics and M.2 storage, alongside dual USB4 Type-C ports (40 Gb/s) for ultimate connectivity.
- » Rock-Solid Durability: Engineered with a premium 8-Layer PCB and a massive 16+2+1 Power Phase design (80A Dr.MOS) for VCore+SOC+MISC with enlarged heatsink armor.
- » Ultrafast Connectivity: Dominate online matches and massive file transfers with 2.5G LAN (Dragon RTL8125BG) and cutting-edge 802.11be Wi-Fi 7 with Multi-link Operation (MLO).
- » DIY Friendly Design: Features a Flexible Integrated I/O Shield, M.2 Bottom Heatsink, BIOS Flashback Button, and ASRock Auto Driver Installer for a seamless build process.
Core Performance
Processor & Chipset
- • Socket: AMD Socket AM5
- • CPU Support: AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
- • Chipset: AMD X870
Memory Specifications
- • Capacity: 4 x DDR5 DIMM Slots, Max. 256GB
- • Speed Support: Up to 8000+(OC) MHz
- • Architecture: Dual Channel Memory Technology
- • Profiles: Supports DDR5 non-ECC, un-buffered memory with AMD EXPO™ and Intel XMP
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- • PCIe 4.0: 3 x PCIe 4.0 x16 Slots (PCIE3 supports x4 mode; PCIE2 & PCIE4 support x1 mode)
- • M.2 (Wi-Fi): 1 x M.2 Socket (Key E) supporting type 2230 WiFi/BT module
Storage Interfaces
- • Blazing M.2: 1 x Blazing M.2 Socket (M2_1), supports PCIe Gen5x4 (128 Gb/s) mode
- • Hyper M.2: 1 x Hyper M.2 Socket (M2_3), supports PCIe Gen4x4 (64 Gb/s) mode
- • Standard M.2: 1 x M.2 Socket (M2_2), supports SATA3 & PCIe Gen3x2 (16 Gb/s) modes
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors (Supports RAID 0, 1, 10)
Connectivity & Network
Networking
- • 2.5G LAN: 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- • Wi-Fi: 802.11be Wi-Fi 7 Module (Supports 6GHz band & 160MHz channel bandwidth)
- • Bluetooth: Supports Bluetooth 5.4
- • Supports Multi-link Operation (MLO) for ultra-fast, low-latency connections

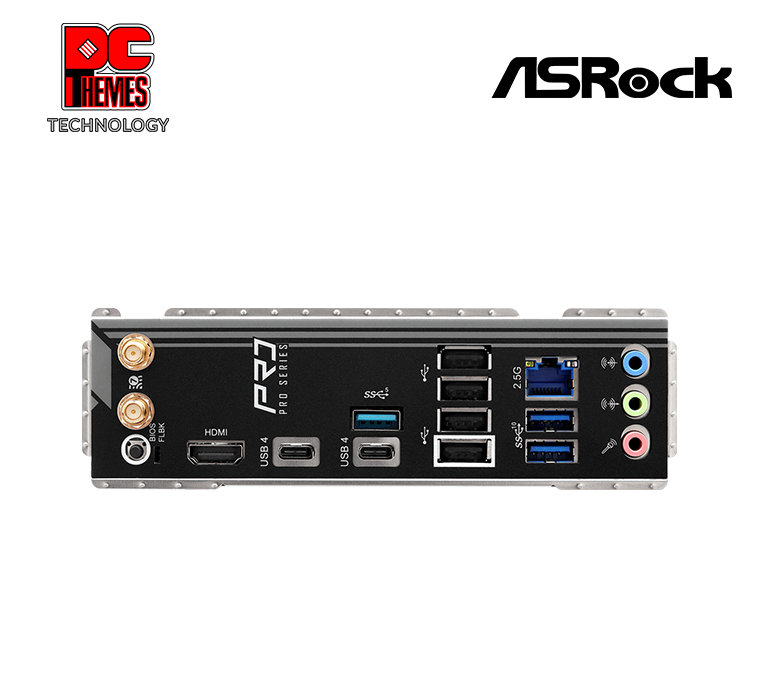

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x HDMI 2.1 Port (up to 4K 120Hz)
- • 2 x USB4 Type-C Ports (40 Gb/s, supports display out up to 8K 30Hz)
- • 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- • 1 x USB 3.2 Gen1 Type-A Port
- • 4 x USB 2.0 Ports
- • 1 x RJ-45 LAN Port & 1 x BIOS Flashback Button
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- • Enhancement: Nahimic Audio
- • Built to provide premium sound quality and optimal communication clarity
Key Internal Headers
- • 2 x 8-pin 12V Power Connectors (Hi-Density Power Connector)
- • 2 x CPU Fan, 1 x AIO Pump, & 3 x Chassis Fan Connectors (4-pin)
- • 3 x Addressable LED Headers & 1 x RGB LED Header
- • 1 x Front Panel Type C USB 3.2 Gen1 Header
- • 2 x USB 3.2 Gen1 Headers & 2 x USB 2.0 Headers
- • Form Factor: ATX Form Factor (12.0-in x 9.6-in) with 8-Layer PCB
