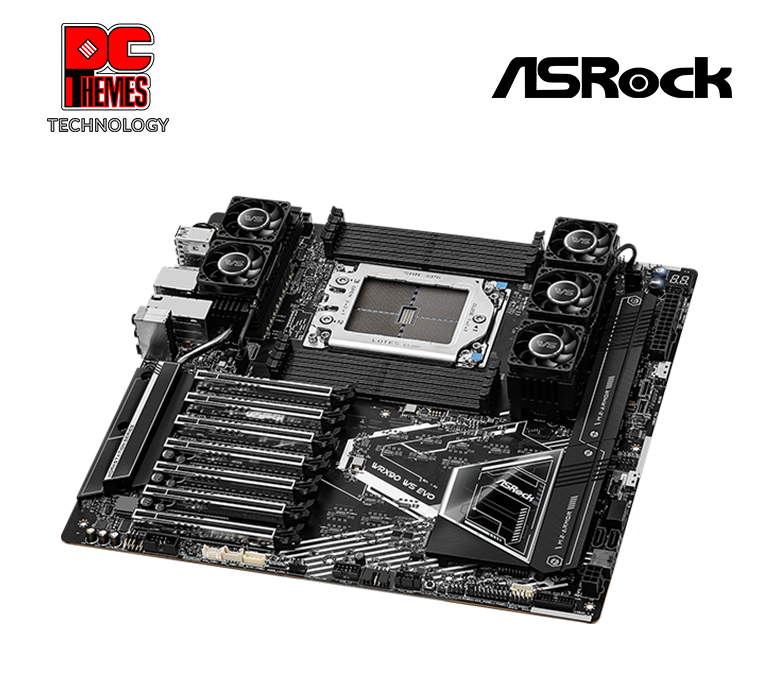

ASRock WRX90 WS EVO Motherboard
- $1,799.00
| ASRock WRX90 WS EVO Motherboard | |
|---|---|
| Model | WRX90 WS EVO |
| CPU Support | Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors (Socket sTR5) |
| Chipset | AMD WRX90 |
| Memory | Eight Channel DDR5 Memory Technology, 8 x DDR5 DIMM Slots (RDIMM/ RDIMM-3DS), Max. capacity: 2TB (Up to 7600+ OC) |
| Graphics | Aspeed AST2600 BMC Controller, 1 x DisplayPort 1.1a (Max. resolution up to 1920x1200 @ 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) with Nahimic Audio |
| LAN | Dual 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2), 1 x Dedicated IPMI LAN |
| Server Management | Aspeed® AST2600 BMC Controller with IPMI interface |
| Expansion Slots | 7 x PCIe 5.0 x16 Slots |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 2 x MCIO Connectors, 2 x SlimSAS SFF-8654 Connectors, 4 x SATA3 |
| USB Connectors | 2 x USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 4 x USB 2.0 |
| Rear Panel I/O | 1 x DisplayPort 1.1a, 2 x USB4 Type-C, 4 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 2 x 10G RJ-45 LAN, 1 x Dedicated IPMI LAN, HD Audio Jacks |
| Form Factor | EEB Form Factor: 12.0-in x 13.0-in (30.5 cm x 33.0 cm), 14 Layer PCB |
| OS Support | Microsoft Windows® 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
WRX90 WS EVO sTR5 EEB Workstation Motherboard
Unique Features
- » Server-Grade Durability: Engineered with an Ultra Low-Loss 14-Layer 2oz Copper PCB and a massive 18+3+3 Power Phase design (110A SPS) with 20K long-lasting Black Caps.
- » Unmatched Expansion: Dominate professional workflows with 7x PCIe 5.0 x16 slots, Eight Channel DDR5 ECC support (up to 2TB), and next-gen MCIO/SlimSAS storage connectors.
- » Enterprise Network & Management: Dual LAN setup featuring incredibly fast Dual Intel X710 10 Gigabit LAN ports alongside a Dedicated IPMI LAN for out-of-band management.
- » Advanced Thermal Design: Equipped with a composite VRM heatsink combining active cooling fans, XXL aluminum heatsinks, and heat pipes for maximum heat dissipation.
Core Performance
Processor & Chipset
- • Socket: AMD Socket sTR5
- • CPU Support: AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors
- • Chipset: AMD WRX90 (Supports ASRock Hyper BCLK Engine)
Memory Specifications
- • Capacity: 8 x DDR5 DIMM Slots, Max. 2TB
- • Speed Support: Up to 7600+(OC) MHz
- • Architecture: Eight Channel Memory Technology
- • Profiles: Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS)
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 7 x PCIe 5.0 x16 Slots (PCIE1~5 & PCIE7 at x16; PCIE6 at x8)
- • Durability: 15μ Gold Contact in VGA PCIe Slots
- • Management: Aspeed AST2600 BMC Controller onboard
Storage Interfaces
- • M.2 Sockets: 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4)
- • Workstation Storage: 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3)
- • SlimSAS: 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or SATA3)
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors (Supports RAID 0, 1, 10)
Connectivity & Network
Networking
- • Dual 10G LAN: 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel X710-AT2)
- • IPMI LAN: 1 x Dedicated IPMI LAN Port (Realtek RTL8211F) for out-of-band management
- • Features: Supports PXE and robust server-grade networking environments

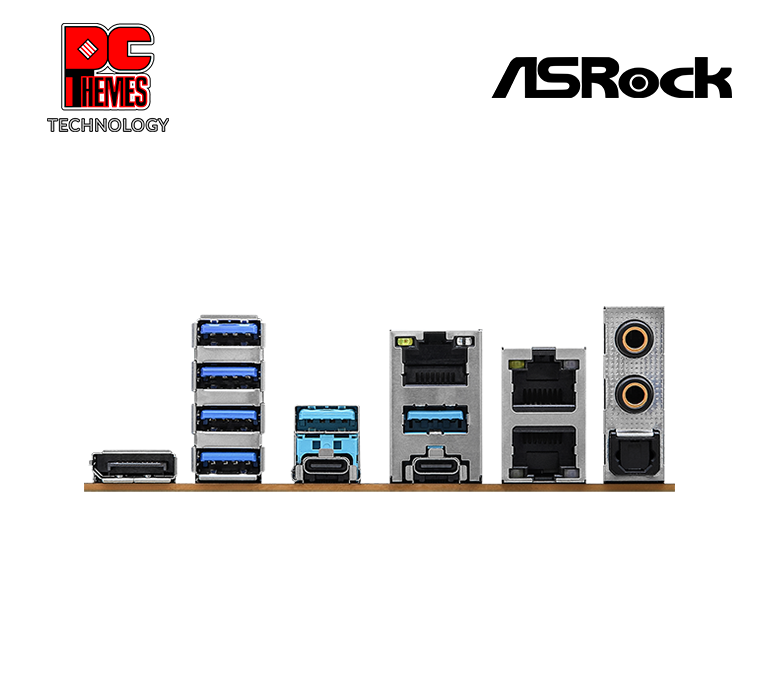

Rear Panel I/O
- • 1 x DisplayPort 1.1a (from AST2600 BMC)
- • 2 x USB4 Type-C Ports (40 Gb/s, supports PD 3.0 up to 27W/15W charging)
- • 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- • 2 x USB 3.2 Gen1 Type-A Ports
- • 2 x RJ-45 LAN Ports (10GbE) & 1 x RJ-45 Dedicated IPMI LAN Port
- • 1 x Optical SPDIF Out & HD Audio Jacks
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- • Enhancement: Nahimic Audio with Impedance Sensing
- • Individual PCB Layers for R/L Audio Channel
Key Internal Headers
- • 2 x 8-pin ATX 12V + 2 x 6-pin PCIe 12V + 2 x 6-pin Graphics 12V Power Connectors
- • 1 x CPU Fan, 1 x CPU/Water Pump, & 3 x Chassis/Water Pump Connectors (4-pin)
- • 2 x Addressable LED Headers
- • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- • BMC SMBus, PSU SMBus, and Intelligent Platform Management Bus Headers
- • Form Factor: EEB Form Factor (12.0-in x 13.0-in)
