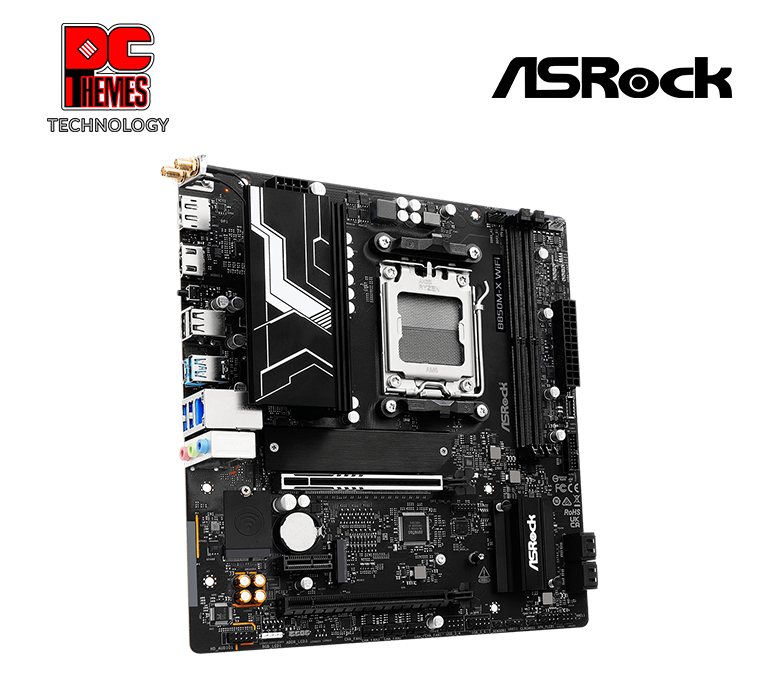

ASRock B850M-X WIFI 6E R2.0 Motherboard
- $209.00
| ASRock B850M-X WiFi R2.0 Motherboard | |
|---|---|
| Model | B850M-X WiFi R2.0 |
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5 Memory Technology, 2 x DDR5 DIMM Slots (Up to 8200+ OC) |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) with Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless & Bluetooth | 802.11axe Wi-Fi 6E Module, Supports Bluetooth 5.2 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 x1 Slot |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in (24.4 cm x 22.6 cm) |
| OS Support | Microsoft Windows® 10 64-bit / 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
B850M-X WiFi R2.0 AM5 Motherboard
Unique Features
- » Superb Productivity: Supports blazing fast PCIe Gen5 for both Graphics and M.2 storage, ensuring uncompromised bandwidth for next-gen hardware.
- » Rock-Solid Durability: Equipped with a 6+1+1 Power Phase Design and Dr.MOS for VCore, delivering smooth power delivery to the CPU for enhanced performance.
- » Ultrafast Connectivity: Stay connected with blazing speeds using the integrated 2.5G LAN and the 802.11axe Wi-Fi 6E Module.
- » EZ Update & Troubleshooting: Features a dedicated BIOS Flashback Button, ASRock Auto Driver Installer, and the ASRock Post Status Checker for simple setups.
Core Performance
Processor & Chipset
- • Socket: AMD Socket AM5
- • CPU Support: Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
- • Chipset: AMD B850
Memory Specifications
- • Capacity: 2 x DDR5 DIMM Slots, Max. 128GB
- • Speed Support: Up to 8200+(OC) MHz
- • Architecture: Dual Channel Memory Technology
- • Profiles: Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO)
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- • PCIe 4.0: 1 x PCIe 4.0 x16 Slot (PCIE3, supports x4 mode), 1 x PCIe 4.0 x1 Slot
- • M.2 (Wi-Fi): 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Interfaces
- • Blazing M.2: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- • Hyper M.2: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA and NVMe storage devices
Connectivity & Network
Networking
- • LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- • Wi-Fi: 802.11axe Wi-Fi 6E Module (Supports IEEE 802.11a/b/g/n/ac/ax/axe)
- • Bluetooth: Supports Bluetooth 5.2
- • Smart Auto Adjust Bandwidth Control

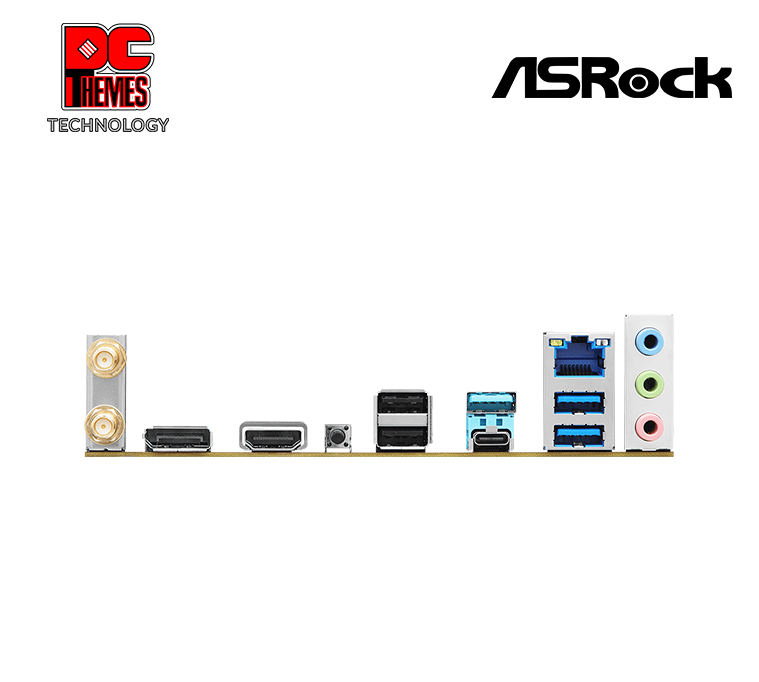

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x HDMI Port (up to 4K 120Hz)
- • 1 x DisplayPort 1.4 with DSC (up to 4K 120Hz)
- • 1 x USB 3.2 Gen1 Type-C Port
- • 3 x USB 3.2 Gen1 Type-A Ports
- • 2 x USB 2.0 Ports
- • 1 x BIOS Flashback Button
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- • Enhancement: Nahimic Audio
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Key Internal Headers
- • 2 x CPU Fan Connectors (4-pin)
- • 1 x AIO Pump Fan Connector (4-pin)
- • 3 x Chassis/Water Pump Fan Connectors (4-pin)
- • 3 x Addressable LED Headers
- • 1 x Front Panel Type C USB 3.2 Gen1 Header
- • Form Factor: Micro ATX Form Factor (9.6-in x 8.9-in)
