AMD Motherboard
ASRock B550M WIFI6E Motherboard
- $139.00
| ASRock B550M WiFi Motherboard | |
|---|---|
| Model | B550M WiFi |
| CPU Support | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, Max. capacity: 128GB (Up to 4733+ OC) |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics, 1 x HDMI 2.1, 1 x DisplayPort 1.4 (Max. resolution up to 5K 120Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) with Nahimic Audio |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Wireless & Bluetooth | 802.11axe Wi-Fi 6E Module, Supports Bluetooth 5.2 |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x16 Slot, 1 x PCIe 3.0 x1 Slot |
| Storage | 1 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x DisplayPort 1.4, 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x RJ-45 LAN, HD Audio Jacks |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in (24.4 cm x 24.4 cm), 2oz Copper PCB |
| OS Support | Microsoft Windows® 10 64-bit / 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock

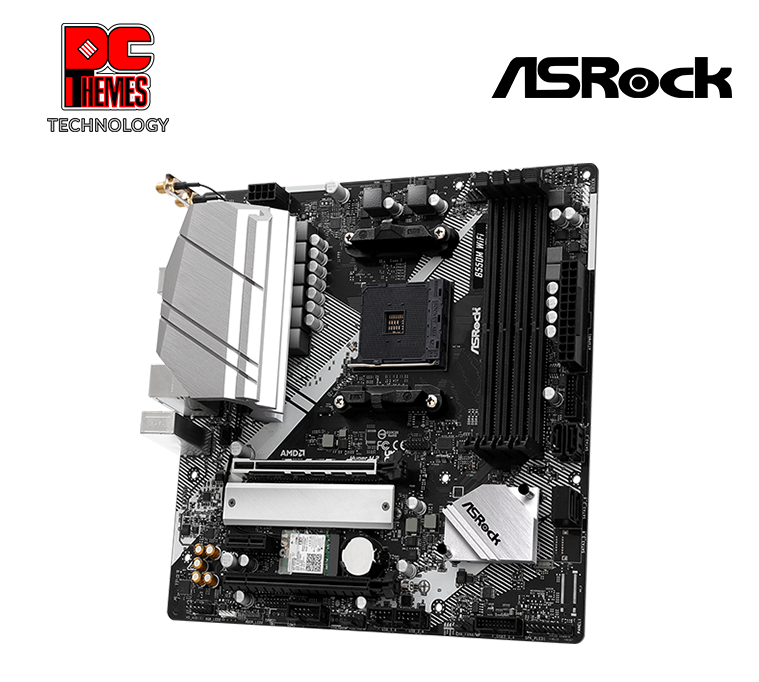

B550M WiFi AM4 Micro-ATX Motherboard
Unique Features
- » Dependable Performance: Equipped with a robust 8 Power Phase Design delivering completely smooth power to the CPU for enhanced performance and stability.
- » Rock-Solid Durability: Engineered with a premium 2oz Copper PCB providing stable signal traces, lower temperatures, and higher energy efficiency for memory overclocking.
- » Next-Gen Wireless: Step into the future with the built-in 802.11axe Wi-Fi 6E module, expanding into the 6GHz band for ultra-low latency and faster connections.
- » High Speed Storage: Features a lightning-fast Hyper M.2 socket supporting PCIe Gen4 x4 NVMe SSDs, delivering twice the speed of the previous generation.
Core Performance
Processor & Chipset
- • Socket: AMD Socket AM4
- • CPU Support: Supports AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- • Chipset: AMD B550
Memory Specifications
- • Capacity: 4 x DDR4 DIMM Slots, Max. 128GB
- • Speed Support: Up to DDR4 4733+(OC) MHz
- • Architecture: Dual Channel Memory Technology
- • Profiles: Supports Extreme Memory Profile (XMP)
Expansion & Storage
Expansion Slots
- • PCIe 4.0: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
- • PCIe 3.0: 1 x PCIe 3.0 x16 Slot (PCIE3, supports x4 mode) and 1 x PCIe 3.0 x1 Slot (PCIE2)
- • Durability: Reinforced Steel Slot for heavy graphics cards
- • M.2 (Wi-Fi): 1 x M.2 Socket (Key E) supporting type 2230 WiFi/BT module
Storage Interfaces
- • Hyper M.2: 1 x Hyper M.2 Socket (M2_1), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- • Note: NVMe SSD supported as boot disks
Connectivity & Network
Networking
- • LAN: Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H)
- • Wi-Fi: 802.11axe Wi-Fi 6E Module (Supports Dual-Band 2x2 with extended 6GHz band)
- • Bluetooth: Supports Bluetooth 5.2
- • Supports MU-MIMO for faster wireless traffic

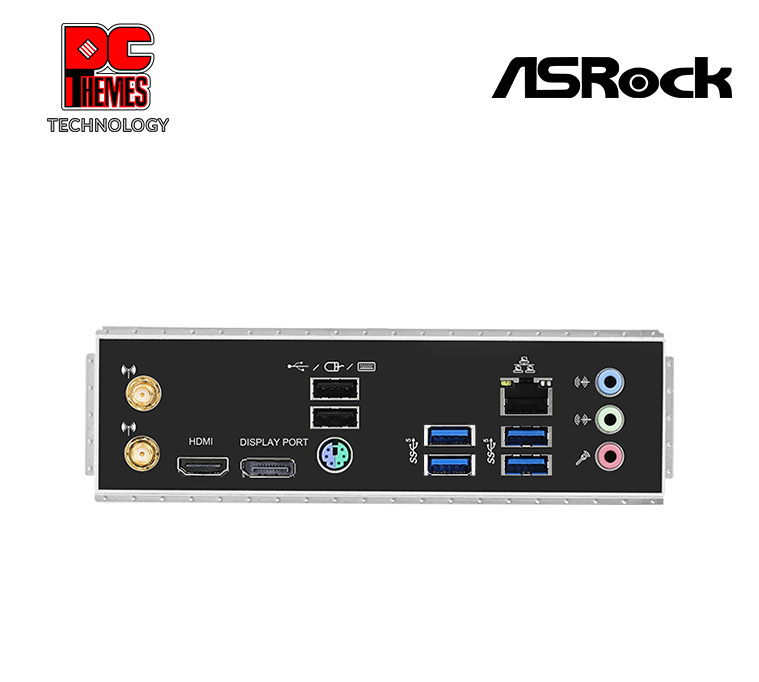

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x PS/2 Mouse/Keyboard Port
- • 1 x HDMI 2.1 Port (up to 4K 60Hz)
- • 1 x DisplayPort 1.4
- • 4 x USB 3.2 Gen1 Type-A Ports
- • 2 x USB 2.0 Ports
- • 1 x RJ-45 LAN Port
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- • Enhancement: Nahimic Audio
- • Delivers highly immersive and pristine sound quality
Key Internal Headers
- • 1 x 24 pin ATX & 1 x 8 pin 12V Power Connector
- • 1 x CPU Fan Connector (4-pin)
- • 3 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control)
- • 2 x Addressable LED Headers & 2 x RGB LED Headers
- • 2 x USB 3.2 Gen1 Headers (Supports 4 USB 3.2 Gen1 ports)
- • 2 x USB 2.0 Headers (Supports 4 USB 2.0 ports)
- • Form Factor: Micro ATX Form Factor (9.6-in x 9.6-in) with 2oz Copper PCB
