Z890 Series

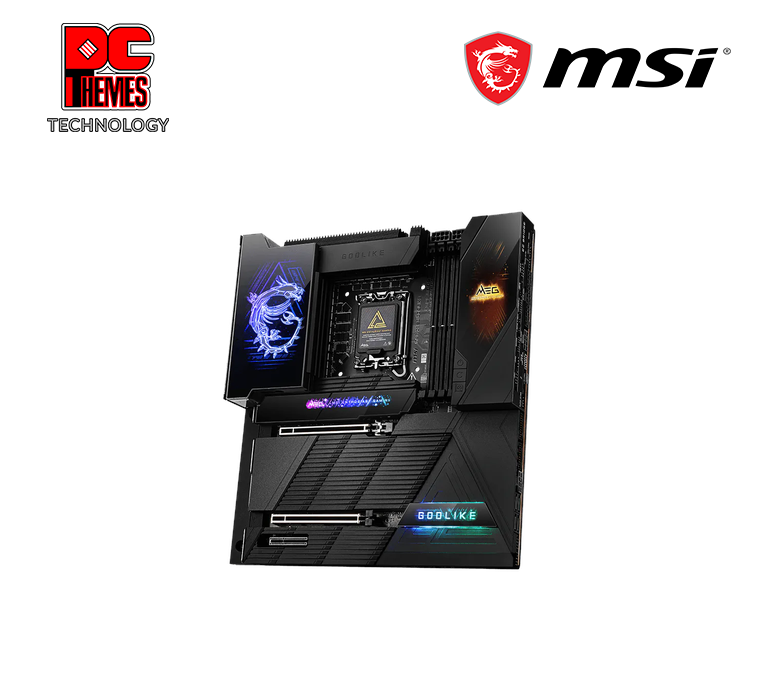

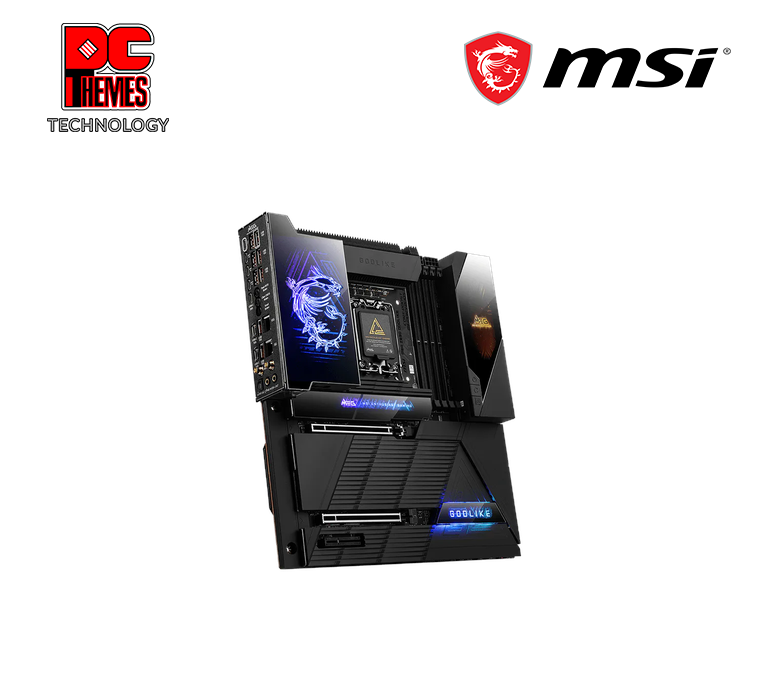

MSI MEG Z890 GODLIKE LGA1851 MOTHERBOARD
- $1,929.00
| MSI MEG Z890 GODLIKE E-ATX Motherboard Specifications | |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | E-ATX |
| Memory Type | DDR5 (Dual Channel) |
| Memory Speed | 9200+ MT/s (Overclocked) |
| Memory Features | Memory Boost Technology, Dedicated SMT Soldering Process |
| M.2 Slots (Onboard) | 6 Slots with Lightning Gen 5 Solution |
| M.2 Expansion | M.2 XPANDER-Z SLIDER GEN5 Card Adds 2 Gen 5 M.2 Slots (Total 8 Slots) |
| M.2 Cooling | Double-Sided M.2 Shield Frozr, EZ Magnetic M.2 Shield Frozr II |
| PCIe Slots | Dual PCIe 5.0 Slots with Steel Armor II Reinforcement |
| VRM Design | 26+2+1+1 Duet Rail Design with 110A Smart Power Stage |
| CPU Power Connectors | Dual 8-pin CPU Power Connectors |
| PCIe Supplemental Power | Supplemental PCIe Power for High-Power GPUs |
| PCB Construction | 10-Layer Server-Grade Material with 2oz Copper |
| Thermal Management | Frozr Heatsink with Wavy Fins, Direct-Touch Cross Heat-Pipe, 9W/mK Thermal Pads |
| Cooling Software | Frozr AI Cooling |
| Fan Headers | 7x System Fan, 2x ARGB, 1x RGB, 1x WaterFlow via EZ Link |
| LAN | 10G Marvell LAN & 5G Intel Killer LAN |
| Wi-Fi | Wi-Fi 7 (320MHz Channels, Up to 5.8Gbps) |
| Thunderbolt 4 | Dual Thunderbolt 4 Ports (40 Gbps Each) Plus Front TB4 Port |
| Thunderbolt 5 | Accessory Card with Dual TB5 Ports (160Gbps Total, 27W Power Delivery) |
| USB Type-C | Front USB 20Gbps Type-C with 60W Power Delivery |
| Audio Codec | Realtek ALC4082 with ESS DAC & Amplifier |
| Audio Features | Audio Boost 5 HD with Premium Integrated Amplification |
| LCD Display | Dynamic Dashboard III (3.99-inch Full-Color LCD) |
| Aesthetic Design | Aluminum Cover, Metal Backplate, Pre-Installed I/O Shield |
| Onboard Features | EZ Link, EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, EZ Button, EZ Digi-Debug LED |
| BIOS & Overclocking | Click BIOS X with Ultra Engine Tuning for Extreme Overclocking |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
MSI
MEG Z890 GODLIKE Motherboard
Unique Features
- » Intel Z890 & LGA 1851: The absolute pinnacle of computing, fully supporting the new Intel® Core™ Ultra Processors (Series 2).
- » Extreme Memory Architecture: Unlock staggering memory bandwidth with four DDR5 slots supporting CUDIMM and overclocking speeds up to 9200+ MT/s.
- » Unrivaled Networking: Dominate everything with Marvell® 10Gbps LAN, Intel® Killer™ 5G LAN, and Intel® Killer™ Wi-Fi 7 (up to 5.8Gbps).
- » Godlike Connectivity & Storage: Features an unprecedented 8x M.2 slots (via onboard and XPANDER-Z SLIDER GEN5 card), plus Thunderbolt™ 4 connectivity on both the front and rear.
Core Specifications
Processor & Chipset
- • Socket: LGA 1851
- • Chipset: INTEL Z890
- • CPU Support: Intel® Core™ Ultra Processors (Series 2)
Memory & Expansion
- • Memory: 4x DDR5 UDIMM, Up to 256GB (Max OC 9200+ MT/s, CUDIMM Ready)
- • Primary Slots: 2x PCIe 5.0 x16 slots (From CPU, supports x16/x0 or x8/x8)
- • Other Slots: 1x PCIe 4.0 x4 slot (From Chipset)
Storage & Networking
Storage Options
- • M.2 Slots: 8x M.2 Slots Total (6x Onboard, 2x via M.2 XPANDER-Z SLIDER GEN5 card). Supports up to 4x PCIe 5.0 x4 drives.
- • SATA Ports: 4x SATA 6Gb/s
- • RAID Support: RAID 0, 1, 5, and 10 for both NVMe and SATA
Network & Wireless
- • Dual LAN: 1x Marvell® AQC113CS 10G LAN + 1x Intel® Killer™ E5000B 5G LAN
- • Wi-Fi: Intel® Killer™ BE1750x Wi-Fi 7 (320MHz, up to 5.8Gbps)
- • Bluetooth: Bluetooth® 5.4

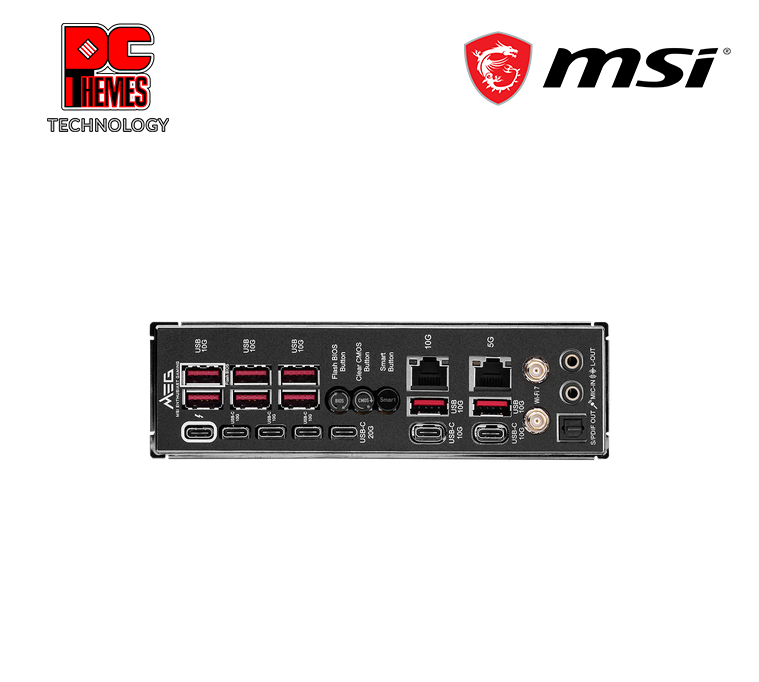

Rear I/O & Audio
Rear Panel Ports
- • Thunderbolt: 1x Thunderbolt™ 4 port (Rear) + 1x Thunderbolt™ 4 header (Front). DisplayPort 2.1 via Type-C up to 8K.
- • USB Type-C: 1x USB 20Gbps, 5x USB 10Gbps
- • USB Type-A: 8x USB 10Gbps
- • Other: Flash BIOS, Clear CMOS, Smart Button, 10G+5G Dual LAN
Audio Details
- • Codec & DAC: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
- • Output: 7.1-Channel USB High-Performance Audio, Optical S/PDIF Out
Physical & DIY
Form Factor
- • Form Factor: E-ATX
- • Dimensions: 277 mm x 304.8 mm
Builder Friendly
- • Diagnostic Tools: 1x Dynamic Dashboard III, 1x EZ Digi-Debug LED, V-check point
- • Power Delivery: Front panel 1x USB 20Gbps Type-C port supports 60W USB PD Fast Charging (w/ supplemental power)
