Intel Motherboard
GIGABYTE H610M H D4 Motherboard
- $143.00
- $155.00
Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed , Anti-Sulfur Resistor, Smart Fan 6
Supports 12th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
* Actual support may vary by CPU.
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
GIGABYTE
H610M H DDR4
Unique Features
- » Optimized Power Delivery: 6+1+1 Hybrid Digital VRM Design for reliable power to 12th/13th/14th Gen Intel CPUs.
- » Fast Onboard Storage: PCIe Gen3 x4 M.2 NVMe support for quick boot times and snappy application loads.
- » Network Prioritization: GbE LAN with Bandwidth Management to improve network latency and maintain low ping.
- » Anti-Sulfur Resistors: Specialized board components designed to prevent sulfur compounds from penetrating and shorting the motherboard.
CPU & Memory
Processor Support
- • LGA 1700 Socket (Intel® H610 Chipset)
- • Support for 14th, 13th, and 12th Gen Intel® Core™
- • Support for Pentium® Gold and Celeron®
Memory Specs
- • Dual Channel DDR4 (2 x DIMM Slots)
- • Max Capacity: 64GB (Non-ECC, Un-buffered)
- • Support up to 3200 MHz
Graphics & Storage
Video Output
- • 1 x D-Sub port (Max. 1920x1200@60 Hz)
- • 1 x HDMI 2.1 port (Max. 4096x2160@60 Hz)
- • *Requires CPU with integrated graphics
Fast Storage
- • 1 x M.2 connector:
- • Supports PCIe 3.0 x4/x2 SSDs
- • Socket 3, M key, type 2260/2280
- • 4 x SATA 6Gb/s Ports
Expansion & Net
Expansion Slots
- • 1 x PCIe 4.0 x16 Slot (Running at x16)
- • 1 x PCIe 3.0 x1 Slot
Connectivity
- • LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- • Wi-Fi: None
Ports & Headers

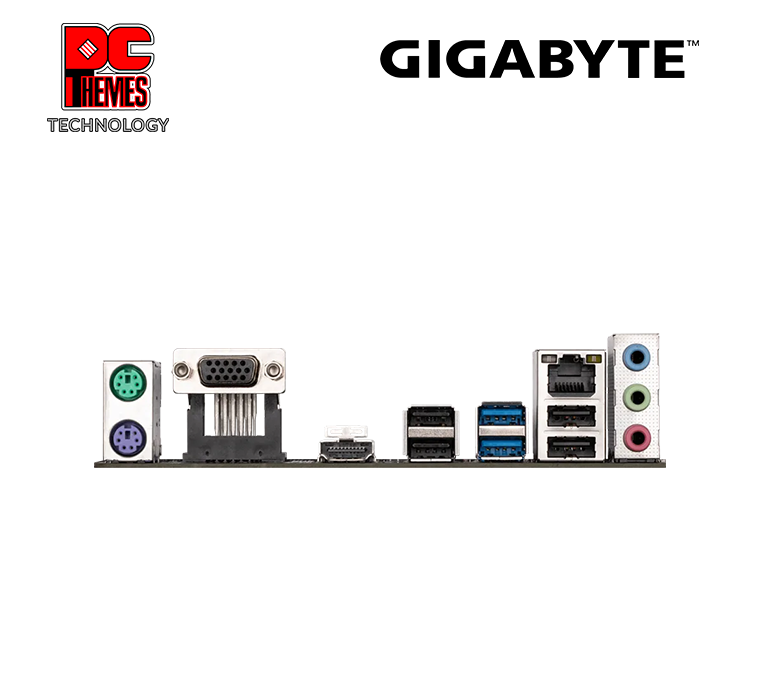

Rear Panel I/O
- • 2x USB 3.2 Gen 1 ports
- • 4x USB 2.0/1.1 ports
- • 1x PS/2 keyboard port, 1x PS/2 mouse port
- • 1x D-Sub, 1x HDMI, 1x RJ-45 LAN, 3x Audio jacks
Internal & Audio
- • Realtek® Audio CODEC High Definition Audio
- • 1x CPU fan header, 2x system fan headers
- • 1x RGB LED strip header
- • Micro ATX Form Factor (23.0cm x 21.5cm)
3 YEARS BY LOCAL DISTRIBUTOR
