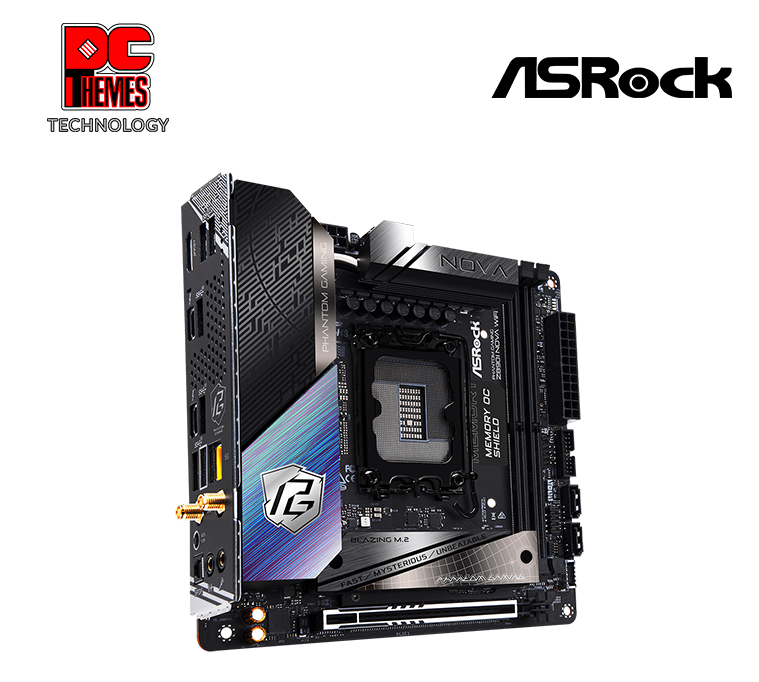

ASRock Z890I NOVA WIFI7 + TB4 Motherboard
- $499.00
| ASRock Z890I Nova WiFi Motherboard | |
|---|---|
| Model | Z890I Nova WiFi |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) |
| Chipset | Intel® Z890 |
| Memory | Dual Channel DDR5 Memory Technology, 2 x DDR5 DIMM Slots (Up to 9866MHz+ OC), Max. capacity: 128GB |
| Graphics | Intel® Xe LPG Graphics Architecture (requires CPU with integrated GPU), 1 x HDMI 2.1, 2 x Intel® Thunderbolt™ 4 |
| Audio | 7.1 CH HD Audio (Realtek ALC4082 Audio Codec) with Nahimic Audio |
| LAN | 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) |
| Wireless & Bluetooth | 802.11be Wi-Fi 7 Module, Supports Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 2 x Hyper M.2 (PCIe Gen4x4), 2 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 2 x Thunderbolt™ 4/USB4 Type-C (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 6 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 2 x USB 2.0 |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x Optical SPDIF Out, 2 x Thunderbolt™ 4/USB4 Type-C, 6 x USB 3.2 Gen2 Type-A, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Form Factor | Mini-ITX Form Factor: 6.7-in x 6.7-in (17.0 cm x 17.0 cm), 10 Layer PCB, 2oz Copper PCB |
| OS Support | Microsoft Windows® 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock Phantom Gaming
Z890I Nova WiFi LGA1851 Mini-ITX Motherboard
Unique Features
- » Triple M.2 Storage Array: Maximize small form factor storage with 3 M.2 sockets, including 1x Blazing M.2 (PCIe Gen5x4) under a toolless XXL heatsink with anti-drop screws.
- » Rock-Solid Durability: Engineered with a highly dense 12+1+1+1+1 Power Phase design, 110A SPS for VCore, 20K Black Caps, and a premium 10-Layer 2oz Copper PCB.
- » Ultrafast Connectivity: Dominate online matches with 5G LAN (Realtek RTL8126), dual Thunderbolt 4 ports, and cutting-edge 802.11be Wi-Fi 7 with Multi-link Operation (MLO).
- » DIY Friendly Design: Features a Flexible Integrated I/O Shield, Memory OC Shield, and BIOS Flashback, making building in tight SFF cases incredibly simple.
Core Performance
Processor & Chipset
- • Socket: Intel Socket LGA1851
- • CPU Support: Intel Core™ Ultra Processors (Series 2)
- • Chipset: Intel Z890
Memory Specifications
- • Capacity: 2 x DDR5 DIMM Slots, Max. 128GB
- • Speed Support: Up to DDR5 9866+(OC) MHz
- • Architecture: Dual Channel Memory Technology (Supports CUDIMM)
- • Profiles: Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- • M.2 (Wi-Fi): 1 x Vertical M.2 Socket (Key E) supporting PCIe WiFi module
- • Durability: 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Interfaces
- • Blazing M.2: 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- • Hyper M.2: 2 x Hyper M.2 Sockets (M2_2 & M2_3), support PCIe Gen4x4 (64 Gb/s) & SATA3 modes
- • SATA3: 2 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, 1, 5, 10 for M.2 NVMe storage devices
Connectivity & Network
Networking
- • 5G LAN: 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
- • Wi-Fi: 802.11be Wi-Fi 7 Module (Supports 320MHz channel bandwidth & 6GHz band)
- • Bluetooth: Supports Bluetooth 5.4
- • Supports Multi-link Operation (MLO) for ultra-low latency wireless gaming

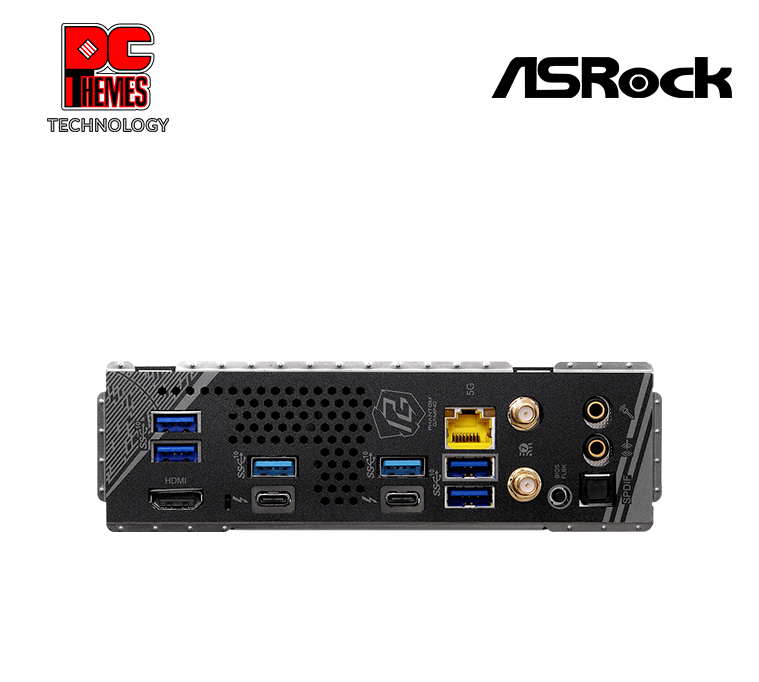

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x HDMI 2.1 Port (up to 4K 120Hz)
- • 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s, supports 15W PD 3.0 charging)
- • 6 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- • 1 x RJ-45 LAN Port (5G)
- • 1 x Clear CMOS Button & 1 x BIOS Flashback Button
- • 1 x Optical SPDIF Out & HD Audio Jacks
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC4082 Audio Codec)
- • Enhancement: Nahimic Audio
- • HD Audio Jacks: Line Out / Microphone Input (15μ Gold Audio Connectors)
Key Internal Headers
- • 1 x 24 pin ATX & 1 x 8 pin 12V Power Connector (Hi-Density)
- • 1 x CPU Fan, 1 x Chassis Fan, & 1 x AIO Pump Fan Connectors (4-pin)
- • 2 x Addressable LED Headers
- • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- • 1 x USB 3.2 Gen1 Header & 1 x USB 2.0 Header
- • Form Factor: Mini-ITX Form Factor (6.7-in x 6.7-in) with 10 Layer 2oz Copper PCB
