MOTHERBOARD

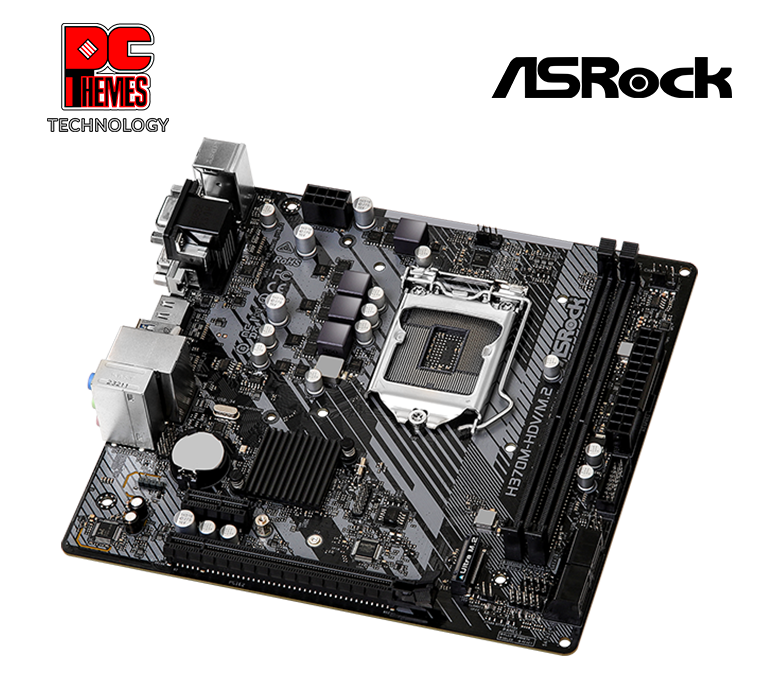

ASRock H370M-HDV/M.2 (LGA1151 8th/9th gen) Motherboard
- $89.00
| ASRock H370M-HDV/M.2 Motherboard | |
|---|---|
| Model | H370M-HDV/M.2 |
| CPU Support | Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) |
| Chipset | Intel® H370 |
| Memory | Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots (Supports DDR4 2666 / 2400 / 2133), Max. capacity: 64GB |
| Graphics | 1 x HDMI 1.4, 1 x DVI-D, 1 x D-Sub (Requires CPU with integrated graphics) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek 8111H) |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot, 1 x PCIe 3.0 x1 Slot |
| Storage | 1 x Ultra M.2 Socket (PCIe Gen3x4 & SATA3), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 4 x USB 3.2 Gen1 (2 Rear, 2 Front), 6 x USB 2.0 (4 Rear, 2 Front) |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 4 x USB 2.0, 2 x USB 3.2 Gen1, 1 x RJ-45 LAN, HD Audio Jacks |
| Form Factor | Micro ATX Form Factor: 7.9-in x 7.5-in (20.1 cm x 19.1 cm) |
| OS Support | Microsoft Windows® 10 64-bit / 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
H370M-HDV/M.2 LGA1151 Micro-ATX Motherboard
Unique Features
- » Superb Productivity: Features an Ultra M.2 socket supporting up to PCIe Gen3 x4 (32 Gb/s) and SATA3, ensuring incredibly fast storage performance and boot times.
- » Rock-Solid Durability: Engineered with a High Density Glass Fabric PCB to protect against humidity and electrical shorts, built on a sleek Sapphire Black PCB with a 4 Power Phase design.
- » Triple Monitor Ready: Equipped with a highly versatile I/O panel including HDMI, DVI-D, and D-Sub outputs, allowing up to three displays to be used simultaneously without an extra graphics card.
- » DIY Friendly: Features a dedicated Water Pump Header providing up to 2A of power for popular cooling loops, along with the convenient ASRock Auto Driver Installer.
Core Performance
Processor & Chipset
- • Socket: Intel Socket LGA1151
- • CPU Support: Supports 9th and 8th Gen Intel Core™ Processors (Up to 95W)
- • Chipset: Intel H370
Memory Specifications
- • Capacity: 2 x DDR4 DIMM Slots, Max. 64GB
- • Speed Support: DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- • Architecture: Dual Channel Memory Technology
- • Profiles: Supports Intel Extreme Memory Profile (XMP) 2.0
Expansion & Storage
Expansion Slots
- • PCIe x16: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode
- • PCIe x1: 1 x PCIe 3.0 x1 Slot (PCIE1)
- • Note: Supports NVMe SSD as boot disks
Storage Interfaces
- • Ultra M.2: 1 x Ultra M.2 Socket (Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connectivity & Network
Networking
- • LAN: Gigabit LAN 10/100/1000 Mb/s
- • Controller: Realtek 8111H
- • Reliable high-speed wired internet connectivity for smooth streaming and daily productivity.

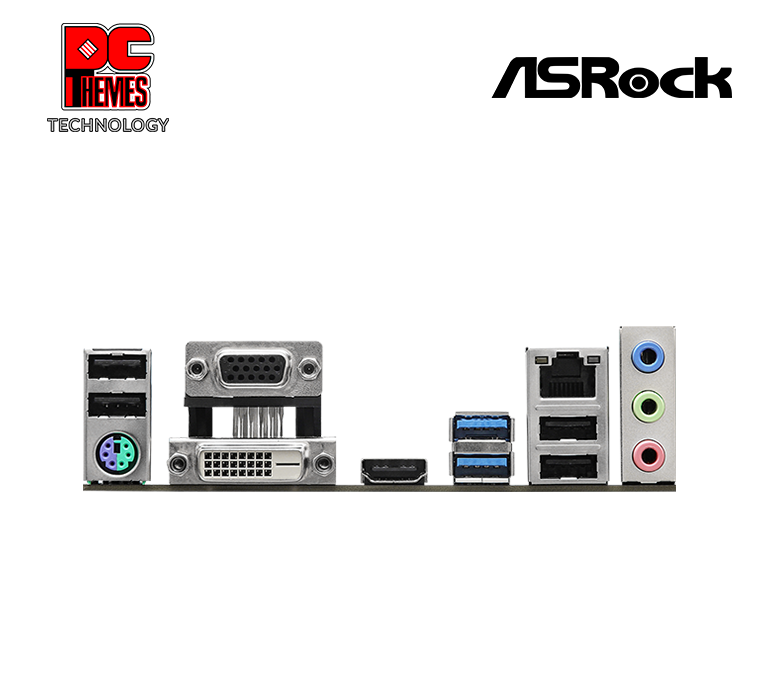

Rear Panel I/O
- • 1 x PS/2 Mouse/Keyboard Port
- • 1 x HDMI Port (up to 4K 30Hz)
- • 1 x DVI-D Port
- • 1 x D-Sub Port
- • 2 x USB 3.2 Gen1 Ports
- • 4 x USB 2.0 Ports
- • 1 x RJ-45 LAN Port
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- • Output: Supports high quality front and rear audio delivery
- • Solid Capacitor design for improved lifespan and stability
Key Internal Headers
- • 1 x CPU Fan Connector (4-pin)
- • 1 x Chassis/Water Pump Fan Connector (4-pin)
- • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- • 1 x SPI TPM Header & Chassis Intrusion Header
- • Form Factor: Micro ATX Form Factor (7.9-in x 7.5-in)
