MOTHERBOARD

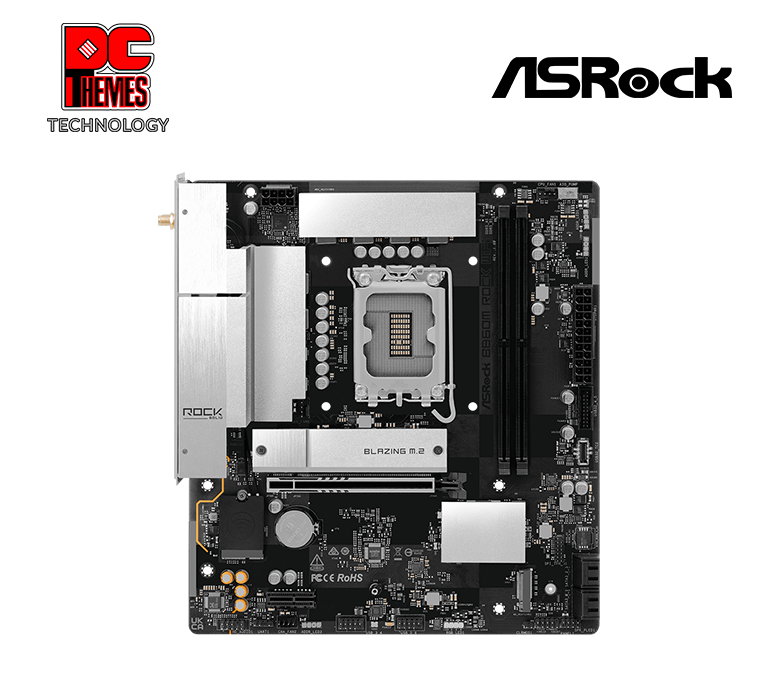

ASRock B860M ROCK WIFI6E Motherboard
- $209.00
| ASRock B860M Rock WiFi Motherboard | |
|---|---|
| Model | B860M Rock WiFi |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® B860 |
| Memory | Dual Channel DDR5 Memory Technology, 2 x DDR5 DIMM Slots (Up to 8333+ OC), Max. capacity: 128GB |
| Graphics | Intel® Xe LPG Graphics Architecture (requires CPU with integrated GPU), 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless & Bluetooth | 802.11axe Wi-Fi 6E Module, Supports Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x1 Slot |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 1 x USB 3.2 Gen2x2 Type-C (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x RJ-45 LAN, HD Audio Jacks |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in (24.4 cm x 22.6 cm) |
| OS Support | Microsoft Windows® 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
B860M Rock WiFi LGA1851 Micro-ATX Motherboard
Unique Features
- » Superb Productivity: Supports blazing fast PCIe Gen5 for both Graphics and M.2 storage, ensuring uncompromised bandwidth for next-gen hardware.
- » Rock-Solid Durability: Equipped with a 5+1+1+1+1 Power Phase Design, Digi Power, Pre-Installed I/O Shield, and ASRock Intel 4-Layer Memory POOL Technology.
- » Ultrafast Connectivity: Stay connected with blazing speeds using the 2.5G Dragon LAN configuration and the 802.11axe Wi-Fi 6E Module.
- » DIY Friendly: Features the ASRock Auto Driver Installer for simple setups, Fan-Tastic Tuning, Toolless SSD Installation, and optimized aluminum heatsinks.
Core Performance
Processor & Chipset
- • Socket: Intel Socket LGA1851
- • CPU Support: Intel Core™ Ultra Processors (Series 2)
- • Chipset: Intel B860
Memory Specifications
- • Capacity: 2 x DDR5 DIMM Slots, Max. 128GB
- • Speed Support: Up to 8333+(OC) MHz
- • Architecture: Dual Channel Memory Technology (Supports CUDIMM)
- • Profiles: Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- • PCIe 4.0: 1 x PCIe 4.0 x1 Slot (PCIE2), supports x1 mode
- • M.2 (Wi-Fi): 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe module
Storage Interfaces
- • Blazing M.2: 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- • Hyper M.2: 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connectivity & Network
Networking
- • LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- • Wi-Fi: 802.11axe Wi-Fi 6E Module (Supports Dual-Band 2x2 with extended 6GHz band)
- • Bluetooth: Supports Bluetooth 5.3
- • Smart Auto Adjust Bandwidth Control & MU-MIMO Support

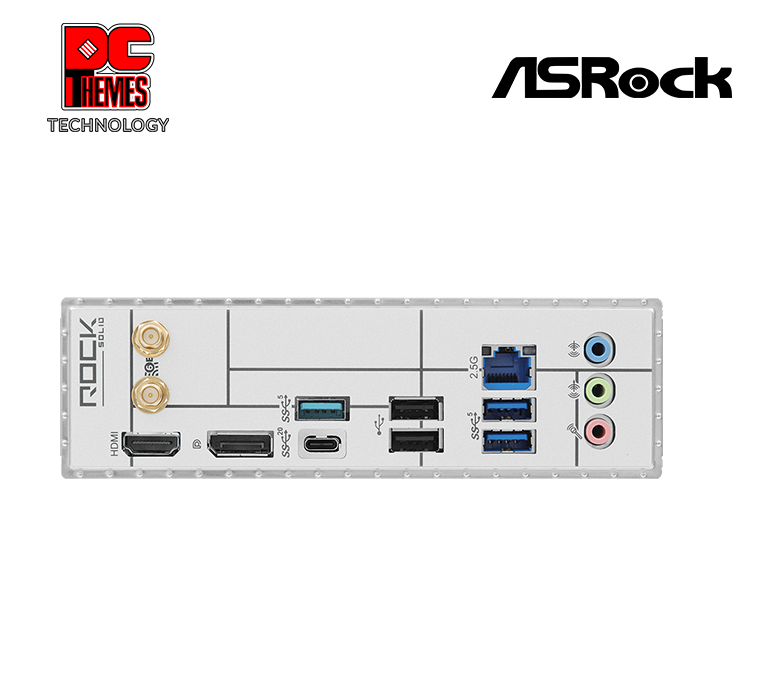

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x HDMI 2.1 Port (up to 4K 120Hz)
- • 1 x DisplayPort 1.4 with DSC
- • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- • 3 x USB 3.2 Gen1 Type-A Ports
- • 2 x USB 2.0 Ports
- • 1 x RJ-45 LAN Port
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- • Output: Supports high quality front and rear audio delivery
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Key Internal Headers
- • 1 x CPU Fan Connector (4-pin)
- • 1 x AIO Pump Fan Connector (4-pin)
- • 2 x Chassis Fan Connectors (4-pin)
- • 3 x Addressable LED Headers & 1 x RGB LED Header
- • 1 x Front Panel Type C USB 3.2 Gen1 Header
- • Form Factor: Micro ATX Form Factor (9.6-in x 8.6-in)
