Shop
MOTHERBOARD

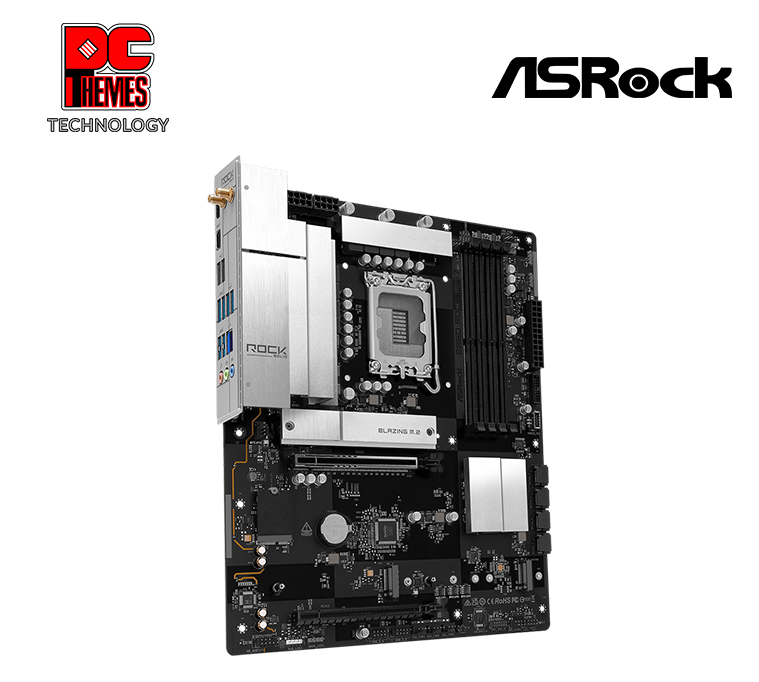

ASRock B860 ROCK WIFI 7 Motherboard
- $219.00
| ASRock B860 Rock WiFi 7 Motherboard | |
|---|---|
| Model | B860 Rock WiFi 7 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® B860 |
| Memory | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots (Up to 8666+ OC) |
| Graphics | Intel® Xe LPG Graphics Architecture (requires CPU with integrated GPU), 1 x HDMI 2.1 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless & Bluetooth | 802.11be Wi-Fi 7 Module, Supports Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x16 Slot |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 2 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 8 x USB 3.2 Gen1 Type-A (6 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x USB 3.2 Gen1 Type-C, 6 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x RJ-45 LAN, HD Audio Jacks |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
| OS Support | Microsoft Windows® 11 64-bit |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock
B860 Rock WiFi 7 LGA1851 Motherboard
Unique Features
- » Superb Productivity: Supports blazing fast PCIe Gen5 for both Graphics and M.2 storage, ensuring uncompromised bandwidth for next-gen hardware.
- » Rock-Solid Durability: Equipped with an 8+1+1+1+1 Power Phase Design and Dr.MOS for VCore+GT+SA, delivering smooth power delivery and lower operating temperatures.
- » Ultrafast Connectivity: Stay connected with blazing speeds using the integrated 2.5G Dragon LAN and the cutting-edge 802.11be Wi-Fi 7 Module with MLO support.
- » EZ Update & Troubleshooting: Features a Pre-Installed IO Shield, ASRock Auto Driver Installer, Toolless SSD Installation, and the ASRock Post Status Checker.
Core Performance
Processor & Chipset
- • Socket: Intel Socket LGA1851
- • CPU Support: Intel Core™ Ultra Processors (Series 2)
- • Chipset: Intel B860
Memory Specifications
- • Capacity: 4 x DDR5 DIMM Slots, Max. 256GB
- • Speed Support: Up to 8666+(OC) MHz
- • Architecture: Dual Channel Memory Technology (Supports CUDIMM)
- • Profiles: Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion & Storage
Expansion Slots
- • PCIe 5.0: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- • PCIe 4.0: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- • M.2 (Wi-Fi): 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe module & Intel CNVio/CNVio2
Storage Interfaces
- • Blazing M.2: 1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
- • Hyper M.2: 2 x Hyper M.2 Sockets (M2_2, M2_3), support PCIe Gen4x4 (64 Gb/s) mode
- • SATA3: 4 x SATA3 6.0 Gb/s Connectors
- • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connectivity & Network
Networking
- • LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- • Wi-Fi: 802.11be Wi-Fi 7 Module (Supports 2.4GHz/5GHz/6GHz bands & 160MHz channel bandwidth)
- • Bluetooth: Supports Bluetooth 5.4
- • Supports Multi-link Operation (MLO) for maximum wireless throughput and reduced latency

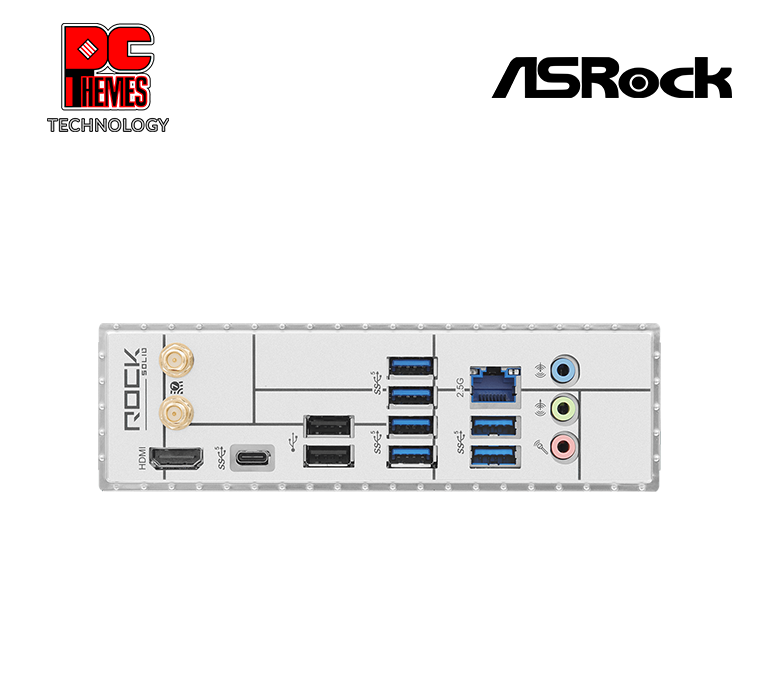

Rear Panel I/O
- • 2 x Antenna Ports
- • 1 x HDMI 2.1 Port (up to 4K 120Hz)
- • 1 x USB 3.2 Gen1 Type-C Port
- • 6 x USB 3.2 Gen1 Type-A Ports
- • 2 x USB 2.0 Ports
- • 1 x RJ-45 LAN Port
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Audio & Internal I/O
Audio Specifications
- • Codec: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- • Output: Supports high quality front and rear audio delivery
- • HD Audio Jacks: Line in / Front Speaker / Microphone
Key Internal Headers
- • 2 x CPU Fan Connectors (4-pin)
- • 1 x AIO Pump Fan Connector (4-pin)
- • 4 x Chassis Fan Connectors (4-pin)
- • 3 x Addressable LED Headers & 1 x RGB LED Header
- • 1 x Front Panel Type C USB 3.2 Gen1 Header
- • Form Factor: ATX Form Factor (12.0-in x 9.6-in)
