GMKtec NucBox K13 [GM 5020] Mini PC

$1,371.02
$1,399.00

Intel® Core™ Ultra 7 Processor 256V
12MB Cache, up to 4.8 GHz, 8C/8T, TDP 37W
16GB LPDDR5X Onboard
1TB M.2 PCIe SSD
2x M.2 2280 PCIe Slot
Windows 11 Professional
Intel® Arc™ 140V Graphics
Intel® High Definition Audio
Dual Band Wi-Fi 6E
Bluetooth 5.2
Gigabit LAN (5G RJ45)

Quantity

Share Now

Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

0 reviews / Write a review

IFrame

Specifications

CPU

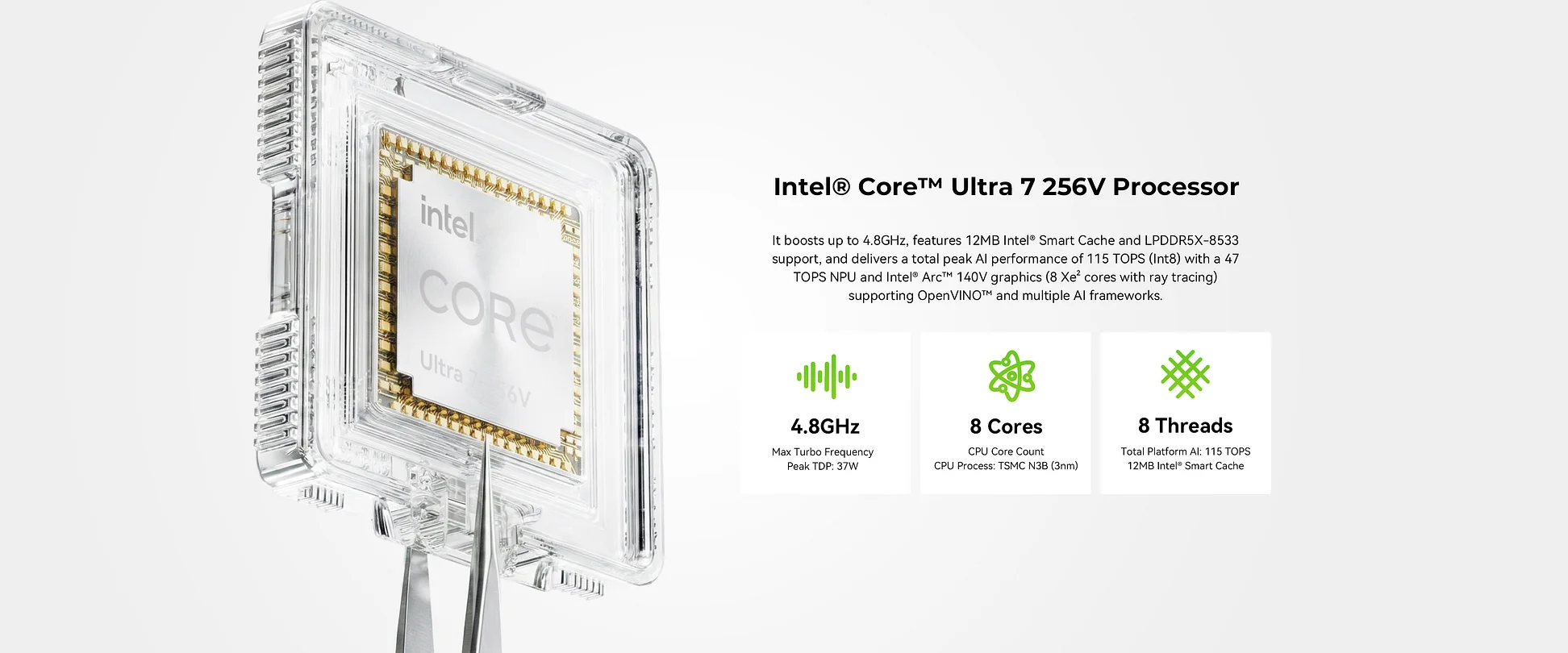

Intel® Core™ Ultra 7 256V (Series 2)
8 Cores / 8 Threads, TSMC N3B Process
Base Frequency: 2.2GHz
Max Turbo: P-core up to 4.8GHz / E-core up to 3.7GHz
12MB Intel® Smart Cache
Peak AI Performance: 115 TOPS (INT8)
Power Modes: Silent 15W / Balanced 20W / Performance 30W (Peak 37W)

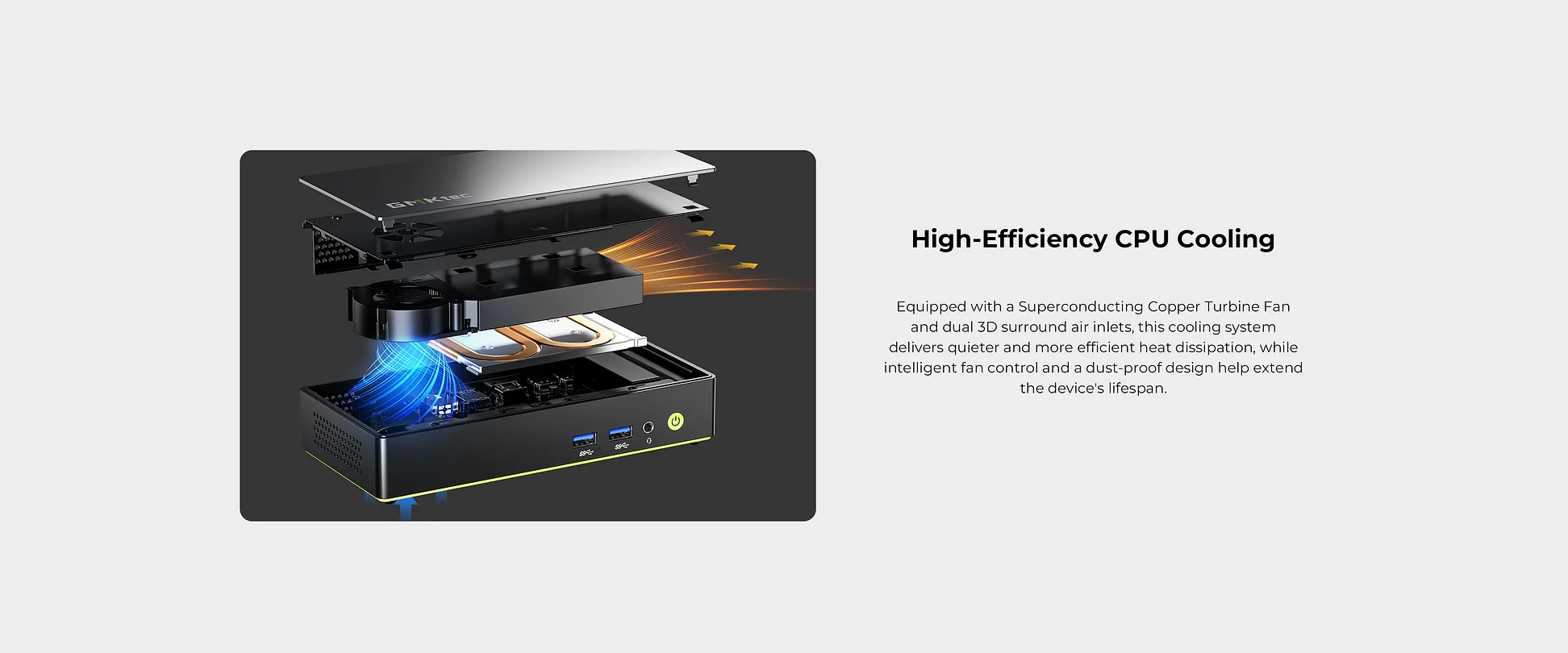

Dual Copper Heat Pipes + Single Fan Cooling

CPU Socket

FCBGA2833 (27.5mm × 27mm)

GPU

Intel® Arc™ 140V GPU

GMKtec NucBox K13 [GM 5020] Mini PC
CPU	Intel Core Ultra 7 256V (8C/8T, up to 4.8 GHz, Lunar Lake)
Graphics	Intel Arc 140V (8 Xe2 cores, up to 1.95 GHz)
NPU	Intel AI Boost (47 TOPS); Total system AI: 115 TOPS
Memory	16 GB LPDDR5X 8533 MT/s (soldered, on-package)
Storage	512 GB or 1 TB M.2 2280 PCIe 4.0 SSD (2x M.2 slots, up to 16 TB total)
Networking	5 Gbps LAN, Wi-Fi 6E, Bluetooth 5.2

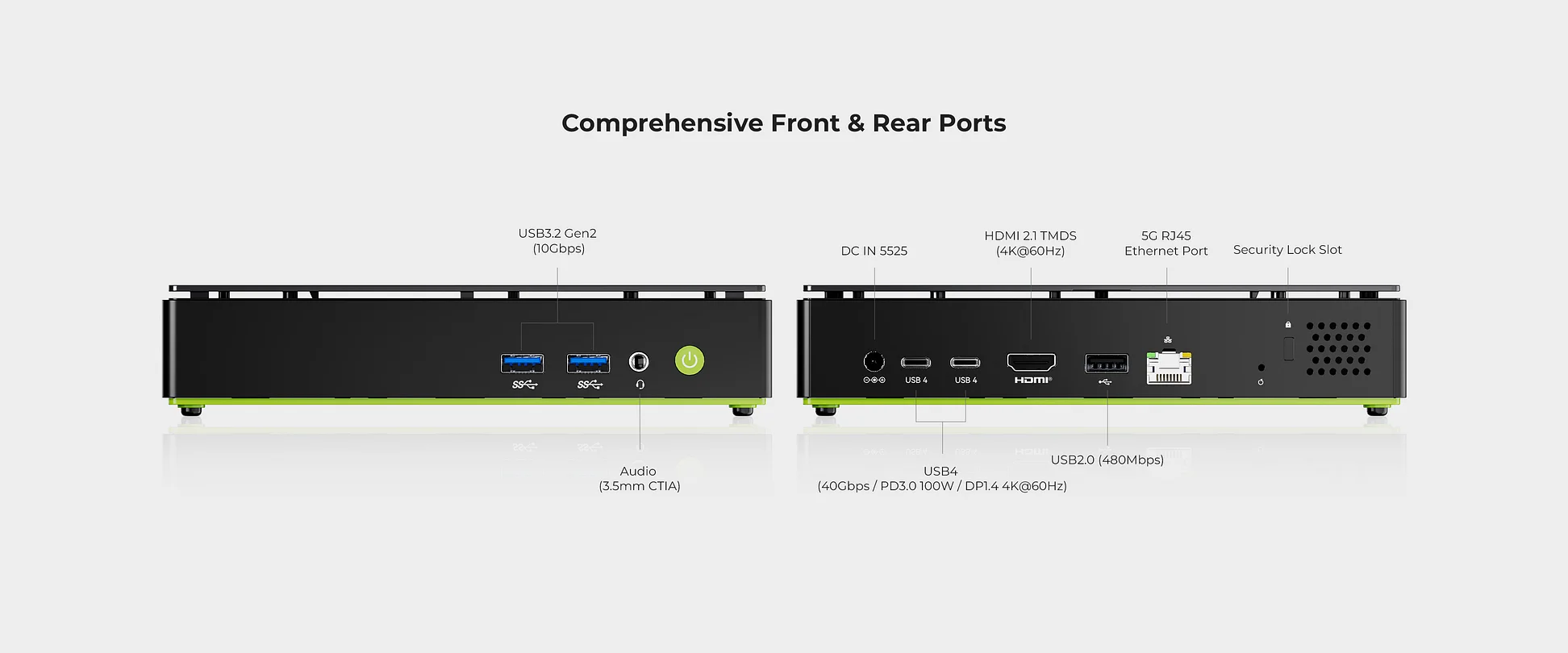

Front Ports	2 x USB 3.2 Gen 2 Type-A, 3.5mm audio jack, power button

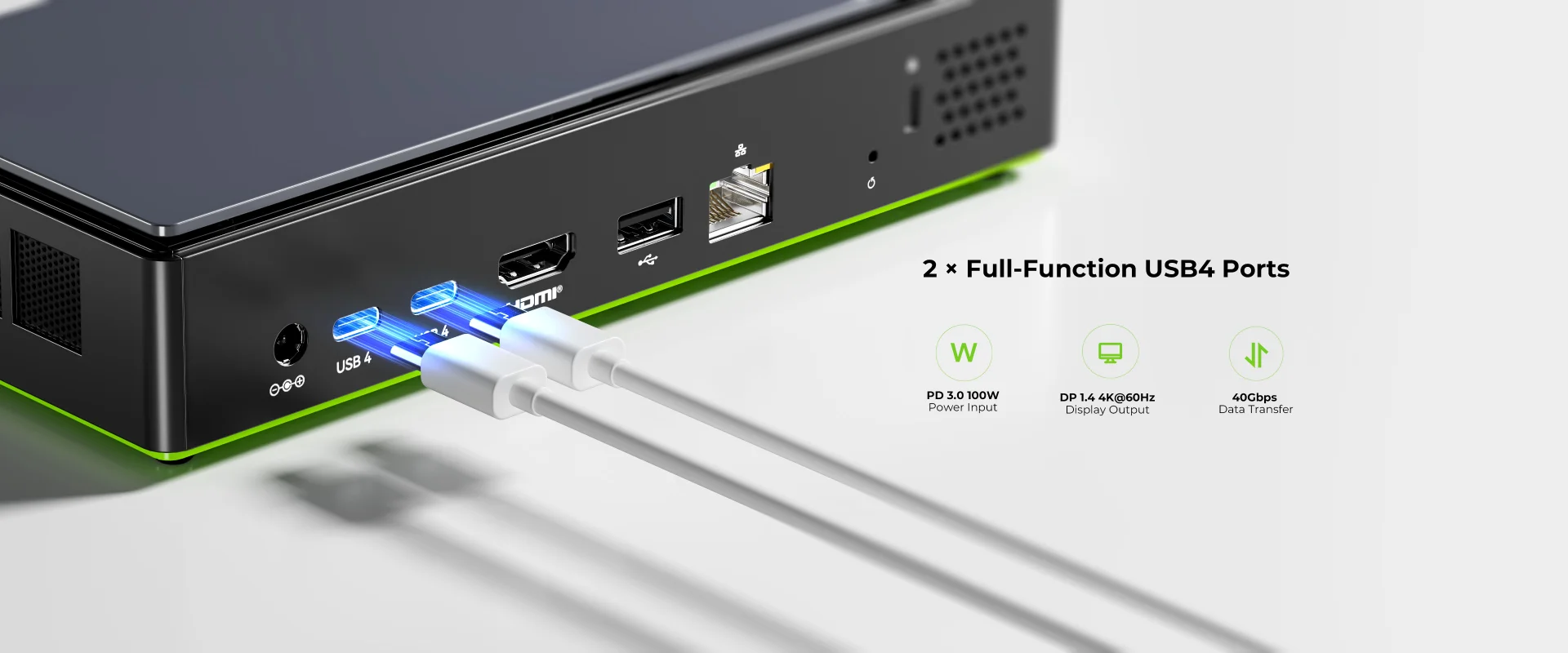

Rear Ports	1 x HDMI 2.1, 2 x USB4 40Gbps (PD 3.0, DP 1.4), 1 x USB 2.0, 5 GbE RJ-45, 3.5mm audio, DC-in

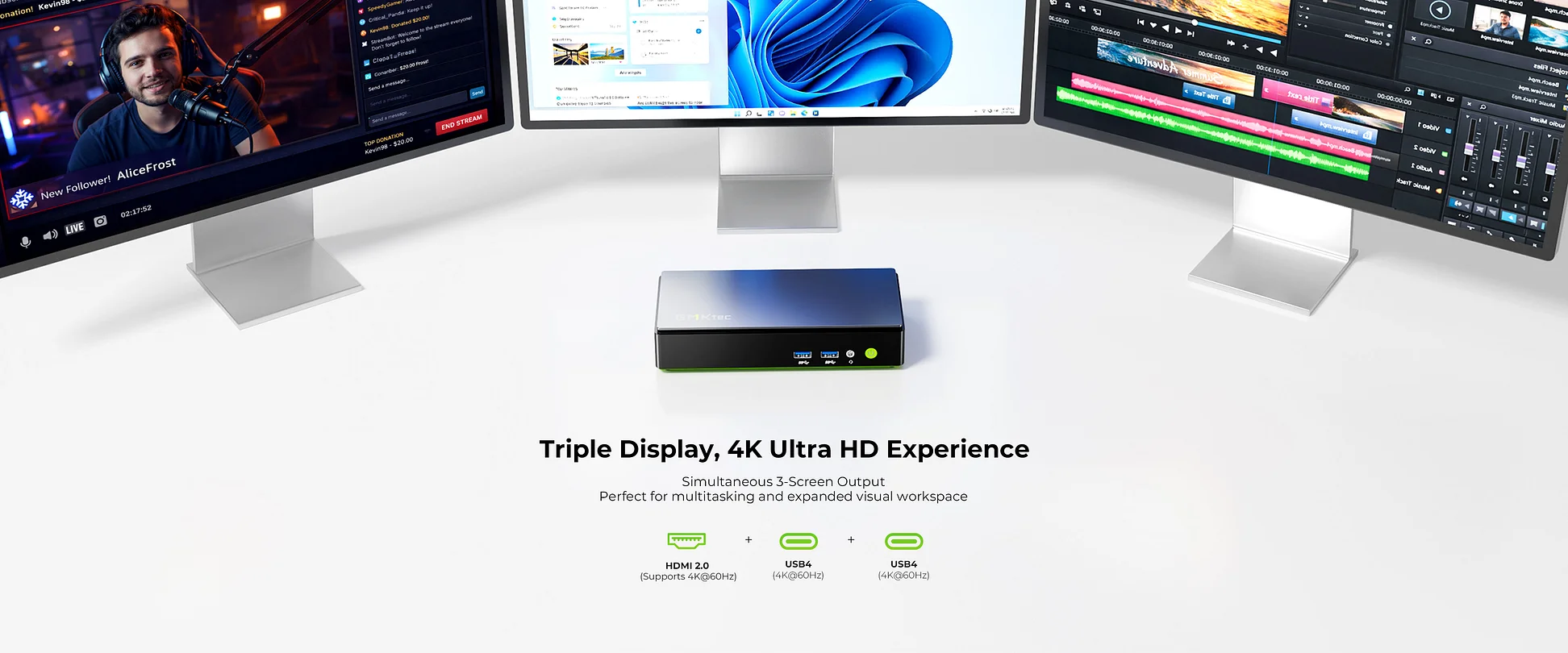

Display Output	Triple 4K support via HDMI 2.1 and 2 x USB4
Power	17W–37W configurable TDP; 120W DC power brick
OS	Windows 11 Pro (Linux supported)
Dimensions	186 x 88 x 33.2 mm
Weight	523 g
