CASE | CHASSIS

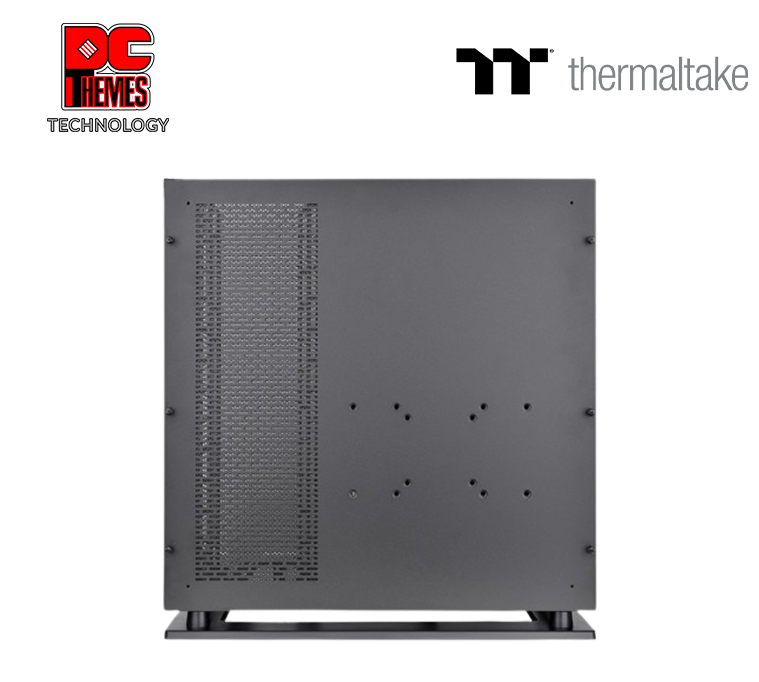

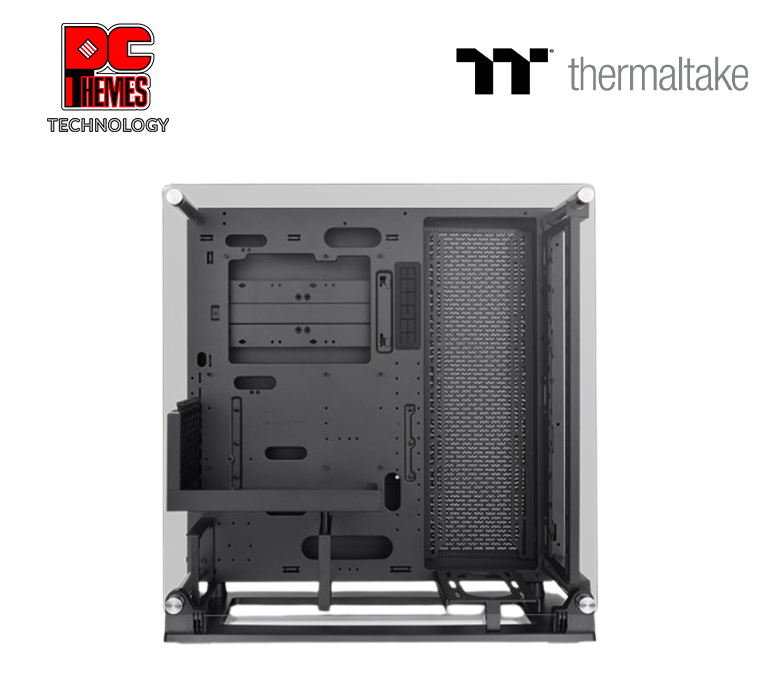

THERMALTAKE CORE P3 TG PRO OPEN FRAME Casing - BLACK
- $199.00
The new open frame chassis of the iconic Core P series, the Core P3 TG Pro, is an upgraded version of our beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports, redesigned base and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
| P/N | CA-1G4-00M1WN-09 |
|---|---|
| Series | Core |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch) |
| NET WEIGHT | 12.5 kg / 27.6 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| Color | Black |
| MATERIAL | SPCC |
| Drive Bays | 2 x 3.5” or 3 x 2.5” 4 x 3.5” or 5 x 2.5” (With HDD bracket) |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bracket (front or top): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bracket (front or top): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 330mm(With reservoir) 450mm(Without reservoir) PSU length limitation: 200mm |
| THERMALTAKE CORE P3 TG PRO OPEN FRAME Casing - BLACK | |
|---|---|
| Case Type | Mid Tower |
| Dimensions (H x W x D) | 535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch) |
| Net Weight | 12.5 kg / 27.6 lbs. |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Drive Bays | 2 x 3.5 inch or 3 x 2.5 inch (Side), 4 x 3.5 inch or 5 x 2.5 inch (With HDD bracket) |
| Expansion Slots | 8 |
| Motherboards | Mini ITX, Micro ATX, ATX, E-ATX |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Right (M/B Side): 3 x 120mm or 3 x 140mm; Bracket (front or top): 3 x 120mm or 3 x 140mm |
| Radiator Support | Right (M/B Side): 1 x 360mm/420mm; Bracket (front or top): 1 x 360mm/420mm |
| CPU Cooler Clearance | 180mm |
| VGA Clearance | 330mm (with reservoir), 450mm (without reservoir) |
| PSU Clearance | 200mm |
