NZXT H6 Flow RGB Tempered Glass White Casing

  • $204.00

H6 Flow RGB Compact Dual-Chamber Mid-Tower Airflow Case with RGB Fans

Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.

  • Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.

  • Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.

  • Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.

  • The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.

  • An intuitive cable management system simplifies the build process by using wide channels and straps.

  • Tool-free access to the top and side panels makes upgrading quick and convenient.

  • Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.


Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

H6 Flow RGB from the glass side showing a top mounted Kraken Elite 360 RGB, NZXT motherboard and other white components.

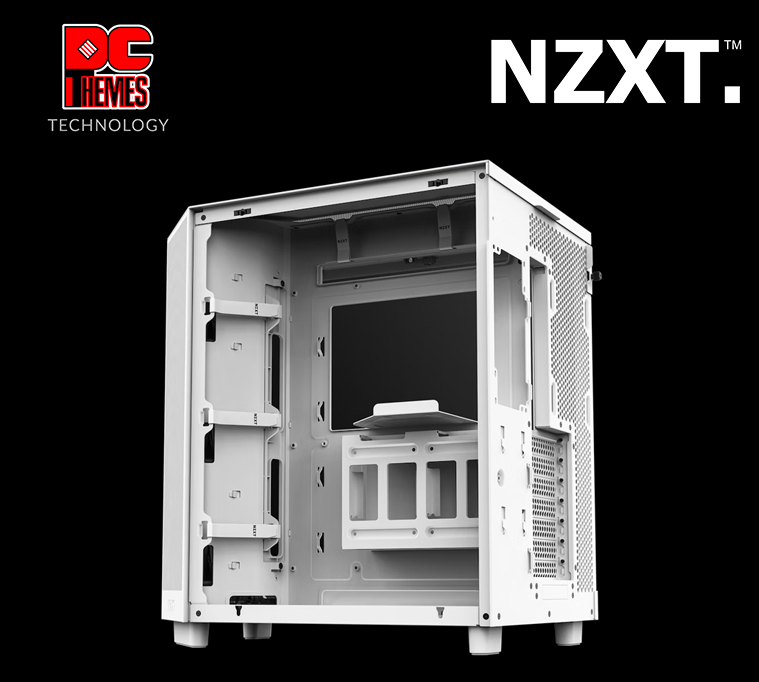

Empty H6 Flow / H6 Flow RGB highlighting the dual-chamber placemen with a highlight on the left back of the case.Empty H6 Flow RGB from the front view with a call out mentioning the included 3 x 120mm fans.

Compact Dual-Chamber                                                                                                                                                  Colorful Cooling

Improves cooling performance and creates an uncrowded aesthetic.                                                                                                                 3 x 120mm RGB fans are angled for optimal out-of-the-box cooling with vibrant RGB lighting.


Empty H6 Flow RGB with a zoom-in of the perforation patternEmpty H6 Flow / H6 Flow RGB from the back with open panel showing cable routing lanes

High Performance Airflow                                                                                                                           Cable Management

Perforation pattern on the panels is optimized for maximum airflow.                                                                                        Easily manage cables with the wide channels and included straps.

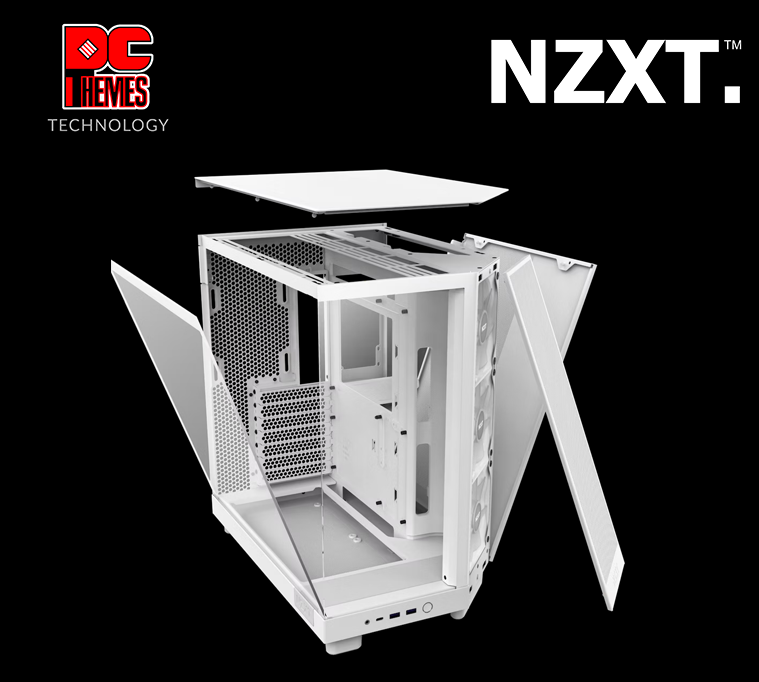

H6 Flow / H6 Flow RGB with all panels pulled off into space showing front, angled, top and back panels removed.H6 Flow RGB with built-in RGB system showing call outs for 360mm radiator and 365mm GPU clearance.

Tool-Free Entry                                                                                                                                                  Spacious Support

Access the top and side panels without tools for quick upgrades.                                                                                                    Up to a 360mm radiator in the top and clearance for a 365mm GPU.


Tech Specs

KEY SPECS

  • Motherboard Support:ATX, Micro-ATX, Mini-ITX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)

DIMENSIONS

  • Height (with feet):435 mm / 17.13 in

  • Width:287 mm / 11.3 in

  • Depth:415 mm / 16.34 in

  • Weight:9.4 kg

COMPATIBILITY & CLEARANCE

  • CPU Cooler Height:163 mm / 6.42 in

  • GPU Length:365 mm / 14.37 in

  • PSU Length:200 mm / 7.87 in

  • Cable Management:91 mm / 3.58 in

  • Top Radiator:30 mm / 1.18 in

FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:2

  • USB 3.2 Gen 2 Type-C:1

  • Headset Audio Jack:1

EXPANSION SLOTS

  • Standard:7

  • Vertical:0

DRIVE BAYS

  • 2.5":2

  • 3.5":1

FAN SUPPORT

  • Front-Right:3 x 120 mm (3 x F120 RGB Core included)

  • Top:3 x 120 mm / 2 x 140 mm

  • Bottom:2 x 140 mm

  • Rear:1 x 120 mm

  • Filters:High-Performance Mesh

RADIATOR SUPPORT

  • Top:Up to 360 mm

  • Rear:Up to 120 mm

FAN SPECS

  • Model:F120 RGB Core Fan (Case Version)

  • Speed:1300 ± 130 RPM

  • Airflow:55.17 CFM

  • Static:1.27 mm - H₂O

  • Noise:26.1 dBA

  • Fan Connector:3-pin

GENERAL

  • Warranty:2 Years

  • Model Number:CC-H61FW-R1 (White) / CC-H61FB-R1 (Black)

  • UPC:810074844154 (White) / 810074844161 (Black)

  • EAN:5056547204062 (White) / 5056547204079 (Black)

NZXT H6 Flow RGB Tempered Glass White Casing
Chassis Form Factor Mid-Tower
Supported Motherboards ATX, Micro-ATX, Mini-ITX
Case Material SGCC Steel and Ultra-Clear Tempered Glass
Dimensions 435 mm (H) x 287 mm (W) x 415 mm (D)
Weight 9.4 kg
Expansion Slots 7
Drive Bays 1 x 3.5 inch HDD, 2 x 2.5 inch SSD
Maximum GPU Length 365 mm
Maximum CPU Cooler Height 163 mm
Maximum PSU Length 200 mm
Front Panel I/O 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Headset Audio Jack
Radiator Compatibility Up to 360 mm (Top), 120 mm (Rear)
Fan Support 3x 120 mm (Front-Right), 3x 120 mm or 2x 140 mm (Top), 2x 140 mm (Bottom), 1x 120 mm (Rear)
Included Fans 3x F120 RGB Core fans (Front-Right)
Warranty 2 years
