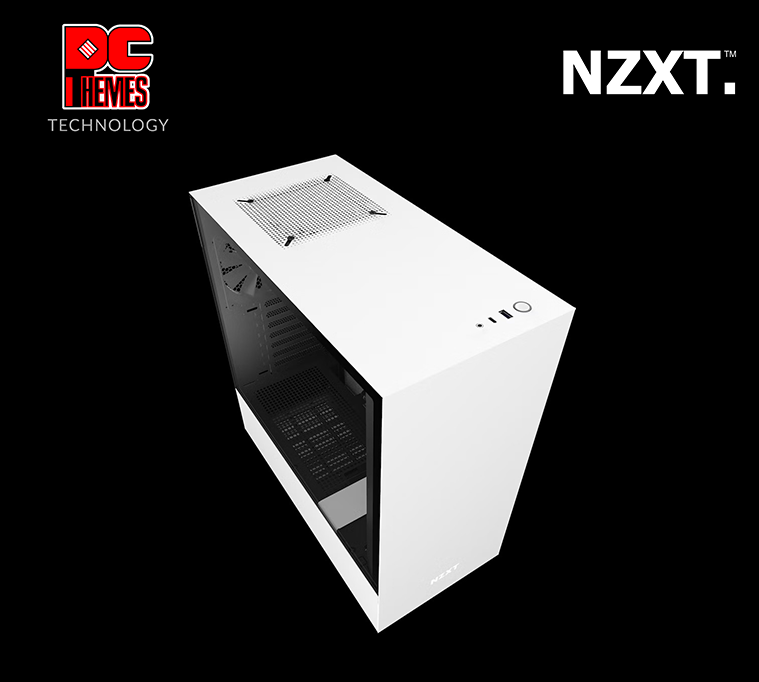

NZXT H510 Tempered Glass Casing - [White]
Pre-Order- $119.00
H510 Compact Mid-Tower Case - Matte White
Our best-selling case is loved by more than 100,000 customers!
This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.
Iconic cable management bar and uninterrupted tempered-glass side panel
USB 3.2 Gen2-compatible USB-C connector on the front panel
Cable routing kit with pre-installed channels and straps
Two Aer F120mm fans and removable filter on PSU intake
Removable bracket designed for radiators up to 280mm
This product is out of stock, submit your email and we will update once it restock.
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:165mm
Max GPU Clearance:381mm
Front Fan & Radiator Clearance:60mm
Cable Management:19 - 23mm
DIMENSIONS
Height: 460mm / 18.11 inches
Width: 210mm / 8.27 inches
Depth: 428mm / 16.85 inches
Weight: 6.6 kg / 14.55 lb
KEY SPECS
Motherboard Support: Mini-ITX, MicroATX, ATX
Enclosure Type: Compact Mid-Tower
Case Material: SGCC Steel, Clear Tempered Glass
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
EXPANSION SLOTS
Standard: 7
Vertical: -
DRIVE BAYS
2.5": 2 + 1
3.5": 2 + 1
FAN SUPPORT
Front: 2 x 120mm / 2 x 140mm
Top: 1 x 120mm / 1 x 140mm
Rear: 1 x 120mm
Filters: All air intakes
RADIATOR SUPPORT
Front: 280mm
Top: -
Rear: 120mm
FAN SPECS
Model: Aer P 120mm (Case Version)
Speed: 1,200 ± 200RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Fan Connector: 3-pin
| NZXT H510 Tempered Glass Casing - [White] | |
|---|---|
| Enclosure Type | Compact ATX Mid-Tower |
| Supported Motherboards | ATX, Micro-ATX, Mini-ITX |
| Case Material | SGCC Steel and Tempered Glass |
| Dimensions | 460 mm (H) x 210 mm (W) x 428 mm (D) |
| Weight | 6.6 kg |
| Expansion Slots | 7 |
| Drive Bays | 2+1 x 3.5 inch, 2+1 x 2.5 inch |
| Maximum GPU Length | 381 mm |
| Maximum CPU Cooler Height | 165 mm |
| Front Panel I/O | 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x 3.5 mm Headset Jack |
| Radiator Compatibility | Up to 280 mm (Front), 120 mm (Rear) |
| Fan Support | Up to 2x 120/140 mm (Front), 1x 120/140 mm (Top), 1x 120 mm (Rear) |
| Included Fans | 2x Aer F120 mm |
| Warranty | 2 years |
