NZXT H5 Elite Tempered Glass Casing [White]
Pre-Order- $204.00

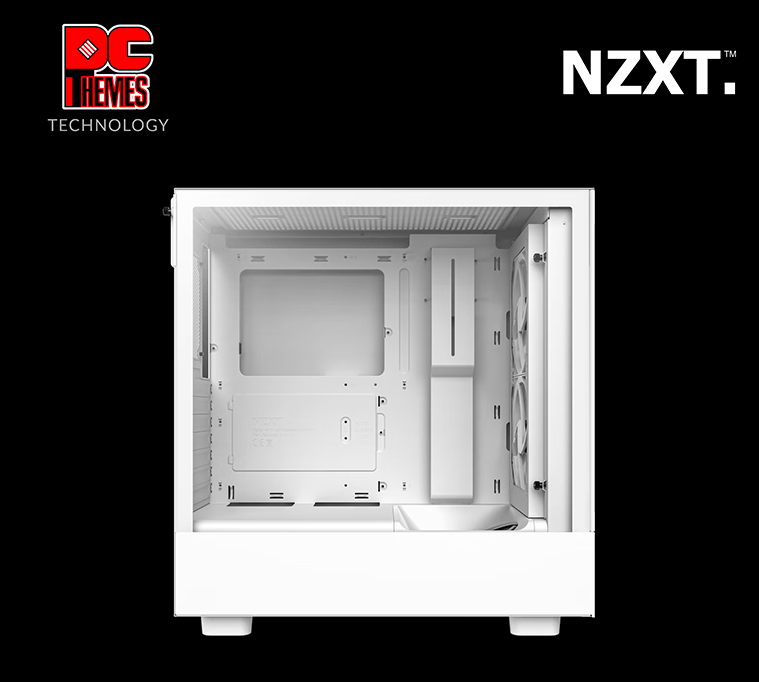

H5 Elite Premium Compact Mid-tower Case - White
The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
Pre-installed fan on bottom inside panel is angled to cool GPU
Tempered glass front panel and built-in RGB controller
Perforated top panel provides optimal ventilation

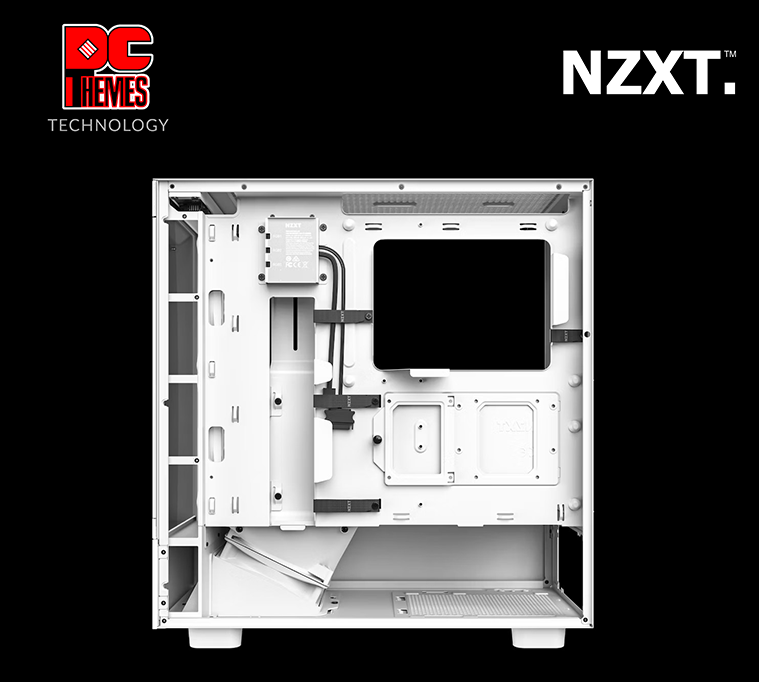

Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels
Front panel supports 2 x 140mm fans or 280mm radiator
Top panel supports up to 2 x 120mm fans or 240mm radiator
Includes two pre-installed F140 RGB fans & one F120Q fan
This product is out of stock, submit your email and we will update once it restock.
DIMENSIONS
Height: 464 mm (With Feet)
Width: 227 mm
Depth: 446 mm
Weight: 8.1 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance: Up to 165mm
Max GPU Clearance: Up to 365mm
Front Radiator Clearance: 45mm
Cable Management: Up to 23mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A: 1
USB 3.2 Gen 2 Type-C: 1
Headset Audio Jack: 1
INCLUDED ACCESSORIES
Installation screws: 1
Cable ties: 10
RGB Lighting Controller: NZXT RGB Connector: 3 (Support up to 120 LEDs)
EXPANSION SLOTS
Standard: 7
DRIVE BAYS
2.5": 1+1
3.5": 1
FAN SUPPORT
Front: 2 x F Series RGB 140mm (Case Version) included
Top: 2 x 120mm
Rear: 1 x 120mm
Bottom: 1 x F Series Quiet 120mm (Case Version) included
Filters: All Air Intakes
RADIATOR SUPPORT
Front: Up to 280mm
Top: Up to 240mm
Rear: Up to 120mm
FAN SPECS
Model: F140 RGB Fan
Speed: 500 - 1800 RPM
Airflow: 24.85 - 89.48 CFM
Static Pressure: 0.94 - 3.39 mm-H2O
Noise: 20 - 32.5 dBA
Fan Connector: 4-pin
FAN SPECS
Model: F120Q Airflow Fan (Case Version)
Speed: 1200 ± 240 RPM
Airflow: 62.18 CFM
Static Pressure: 1.05 mm-H2O
Noise: 25.1 dBA
Fan Connector: 3-pin
| NZXT H5 Elite Tempered Glass Casing [White] | |
|---|---|
| Chassis Form Factor | Mid Tower |
| Supported Motherboards | ATX, Micro-ATX, Mini-ITX |
| Case Material | SGCC Steel and Tempered Glass |
| Dimensions | 464 mm (H) x 227 mm (W) x 446 mm (D) |
| Weight | 8.1 kg |
| Expansion Slots | 7 |
| Drive Bays | 1 x 3.5 inch, 2 x 2.5 inch |
| Maximum GPU Length | 365 mm |
| Maximum CPU Cooler Height | 165 mm |
| Front Panel I/O | 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x Headset Audio Jack |
| Radiator Compatibility | Up to 280 mm (Front), Up to 240 mm (Top), Up to 120 mm (Rear) |
| Fan Support | Up to 2x 140 mm (Front), 2x 120 mm (Top), 1x 120 mm (Rear), 1x 120 mm (Bottom) |
| Included Fans | 2x F Series RGB 140 mm (Front), 1x F Series Quiet 120 mm (Bottom) |
| Lighting | Built-in RGB and Fan Controller |
| Warranty | 2 years |
