Shop
CASE | CHASSIS

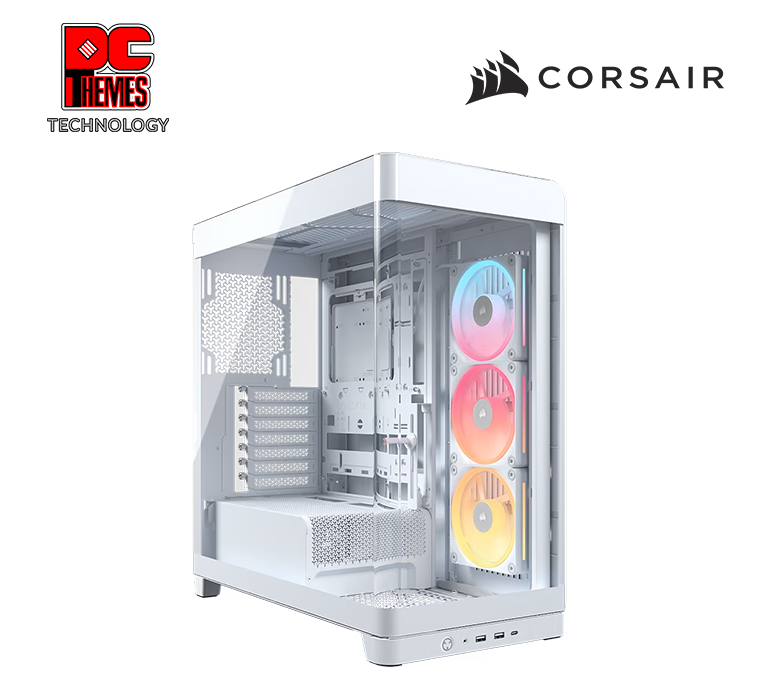

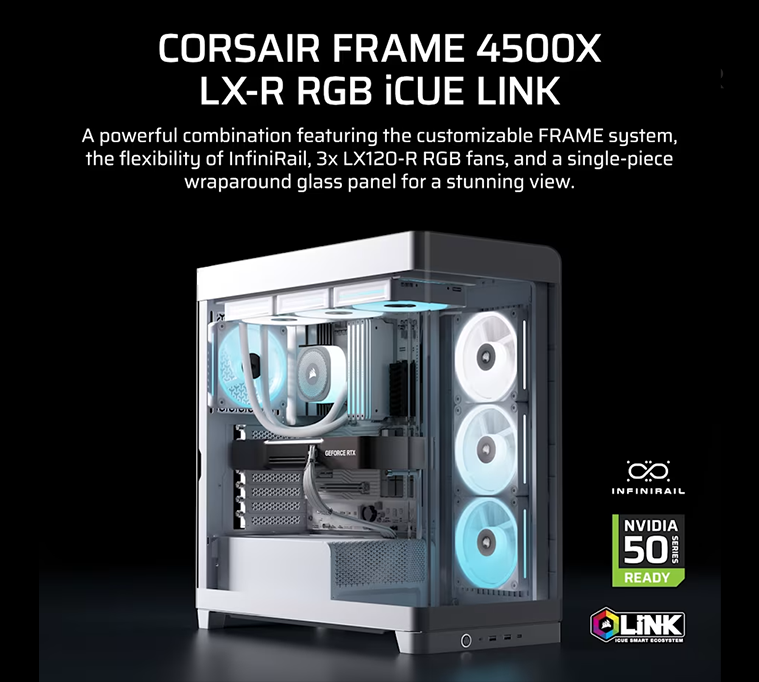

CORSAIR FRAME 4500X LX-R RGB iCUE LINK Panoramic Glass Mid-Tower PC Casing - White
- $359.00
- $425.00
| CORSAIR FRAME 4500X LX-R RGB iCUE LINK Panoramic Glass Mid-Tower PC Casing (White) | |
|---|---|
| Form Factor & Support | Mid-Tower | Supports Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 277mm) |
| Special Motherboard Compatibility | Fully compatible with next-gen Reverse Connection Motherboards (e.g., ASUS BTF, MSI Project Zero) for zero-cable aesthetics |
| Included Fans | 3x CORSAIR iCUE LINK LX120 R-RGB White Reverse-Blade 120mm PWM Fans (Pre-installed on the side for optimal intake aesthetics) |
| Smart Control Ecosystem | Includes CORSAIR iCUE LINK System Hub (Connects and synchronizes all your cooling with a revolutionary single-cable ecosystem) |
| Cooling & Radiator Capacity | Mounts up to 10x 120mm or 4x 140mm fans | Radiator support up to 360mm (Top and Side Motherboard Tray) |
| Front Panel I/O | 1x USB 3.2 Gen 2 Type-C (10 Gbps), 2x USB 3.2 Gen 1 Type-A, 1x Audio In/Out Combo Jack, Power Button, Reset |
| Storage Options | 2x 3.5" HDD mounts and 2x 2.5" SSD mounts |
| Hardware Clearances | GPU Length: Up to 400mm | CPU Cooler Height: Up to 170mm | PSU Length: Up to 225mm |
| Cable Management | Spacious 30mm routing depth behind the motherboard tray, optimized for thick reverse-connection cabling and iCUE LINK cables |
| Dimensions & Material | Approx. 500mm (L) x 245mm (W) x 506mm (H) | Steel frame, wraparound pillarless tempered glass (Front & Side panels) (White Edition) |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
CORSAIR
4500X LX-R RGB iCUE LINK Panoramic Glass Mid-Tower PC Casing - White
Unique Features
- » Panoramic Pillarless Glass: Boasts a stunning, uninterrupted wraparound tempered glass design that provides a flawless "fish tank" showcase view of your premium white components.
- » iCUE LINK Ecosystem: Includes the revolutionary iCUE LINK System Hub, allowing you to daisy-chain your fans and cooling components to drastically reduce cable clutter for an immaculate build.
- » LX-R Reverse-Blade White Fans: Comes equipped with specialized LX120-R RGB fans that provide massive air intake while displaying their beautiful "front" fan blades (hiding the ugly frame struts).
- » Reverse Connection Motherboard Ready: Fully compatible with next-gen reverse-connector motherboards (like ASUS BTF and MSI Project Zero), hiding all thick power cables behind the motherboard tray.
Cooling & Clearance
Fan & Radiator Support
- • Included Cooling: 3x LX120-R RGB Reverse-Blade Fans (White) + iCUE LINK Hub
- • Fan Capacity: Up to 10x 120mm or multiple 140mm cooling fans
- • Radiator (Side/Roof): Up to 360mm or 280mm liquid cooling radiators
- • Radiator (Rear): Up to 120mm or 140mm
Hardware Clearance
- • Max GPU Length: ~400 mm (Easily fits RTX 4090 / 5090)
- • Max CPU Cooler Height: ~170 mm
- • Max PSU Length: ~225 mm
Expansion & Storage
Motherboard & Slots
- • Standard Support: E-ATX, ATX, Micro-ATX, Mini-ITX
- • Hidden Cable Support: Fully compatible with ASUS BTF & MSI Project Zero
- • Expansion Slots: 7 Horizontal
Drive Bays
- • 3.5" HDD Slots: Up to 2
- • 2.5" SSD Slots: Up to 2
Design & Connectivity

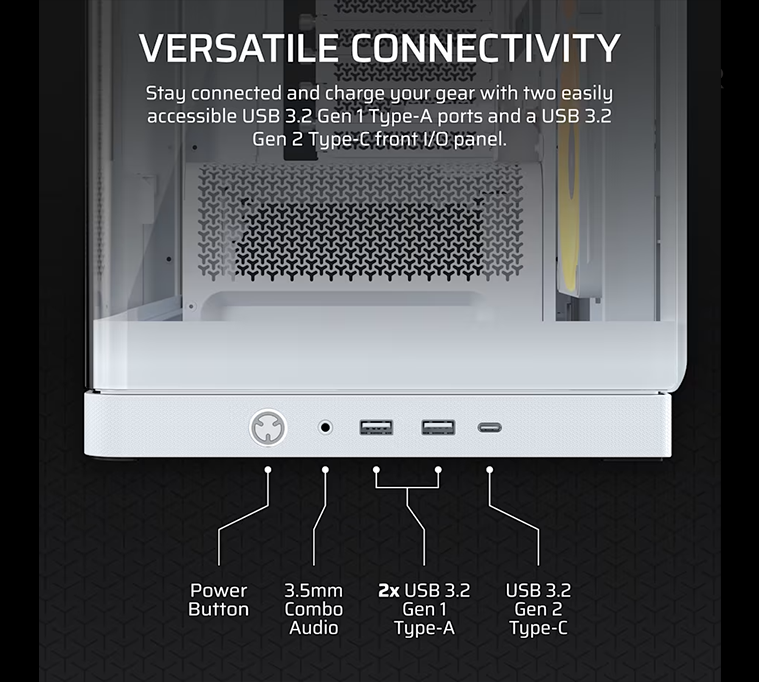

Front I/O Panel
- • Type-C Port: 1x USB 3.2 Gen 2 Type-C
- • Type-A Ports: 2x USB 3.2 Gen 1 Type-A
- • Audio: 1x Headphone/Microphone Combo Jack
- • Buttons: Power, Reset
Physical Specs
- • Form Factor: Mid-Tower (Panoramic Showcase)
- • Material: Steel, Tempered Glass
- • Color: White
Reliability & Warranty
Target Audience
- • Use Case: Perfect for enthusiasts looking to build an uncompromised, all-white showcase PC with the industry's cleanest, cable-free aesthetic thanks to iCUE LINK and Reverse Motherboard support.
- • Aesthetics: Delivers a breathtaking "fish tank" display with its pillarless corner, brilliantly illuminating your hardware with the included LX-R RGB Reverse-Blade fans.
Warranty Info
- • Coverage: 2-Year Limited Manufacturer Warranty
- • Product Family: CORSAIR iCUE LINK PC Casings
