CASE | CHASSIS

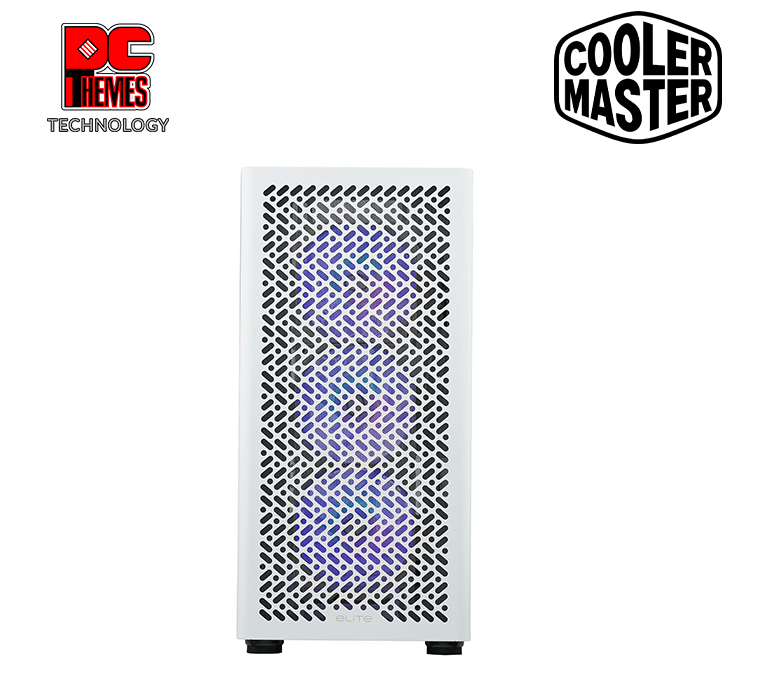

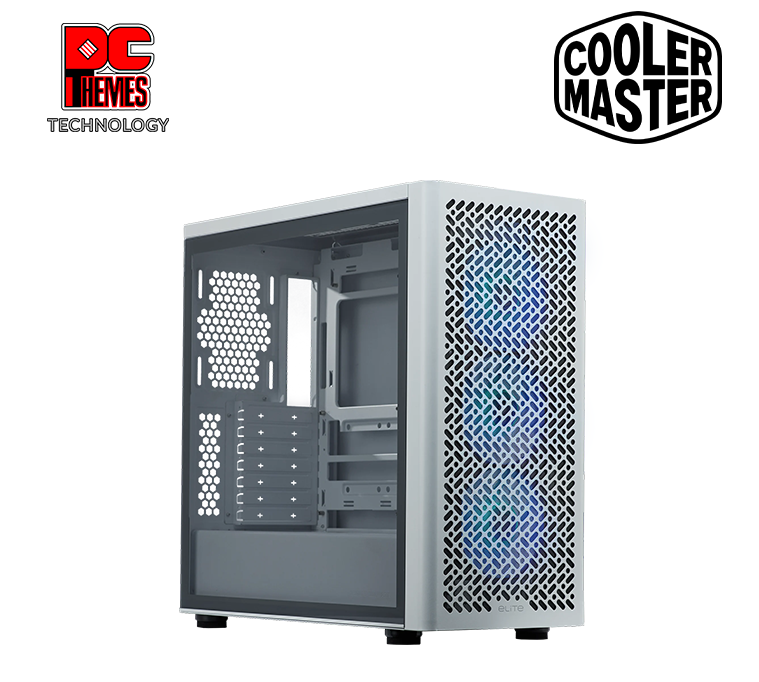

COOLER MASTER Elite 502 ARGB TG ATX Casing White
- $87.22
- $89.00
| COOLER MASTER Elite 502 ARGB TG ATX Casing White | |
|---|---|
| Type | Mid Tower |
| Materials | Steel, Tempered Glass |
| Dimensions | 474 x 230 x 481 mm (Incl. Protrusions) |
| Motherboard Support | ITX, Micro ATX, ATX (Back-connector support), E-ATX (up to 12 x 10.9 in) |
| Expansion Slots | 7 |
| Drive Bays | 2 x 3.5 inch, 2 x 2.5 inch (Max 6) |
| I/O Panel | 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x 3.5mm Audio Combo Jack |
| Pre-installed Fans | 3 x 120mm ARGB Fans (Front) |
| Fan Support | Front (3 x 120/140mm), Top (3 x 120mm or 2 x 140mm), Rear (1 x 120mm) |
| Radiator Support | Front (Up to 420mm), Top (Up to 360mm), Rear (120mm) |
| CPU Cooler Clearance | 170mm |
| GPU Clearance | 360mm (with front radiator) or 410mm (without front radiator) |
| PSU Clearance | 170mm (210mm without HDD cage) |
| Dust Filters | Front, Top, Bottom |
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
COOLER MASTER
Elite 502 ARGB TG ATX PC Casing - White
(Includes Tempered Glass Side Panel, 3× Pre-installed CF120 ARGB Fans & ARGB Fan Hub)
Unique Features
- » 420mm Front & 360mm Top Radiator Support: The Elite 502 is the only model in the Elite series to support a massive 420mm front radiator alongside a 360mm top radiator simultaneously, making it the step-up choice for enthusiast liquid cooling builds that need maximum thermal headroom in a mid-tower form factor.
- » Back-Connector Motherboard Support: Natively supports back-connect motherboard designs (e.g. ASUS BTF, MSI Project Zero), freeing the front of the motherboard from cables and providing 33–35mm of dedicated space behind the tray for ultra-clean cable routing without additional modification.
- » Removable HDD Cage & Expandable Storage: The HDD cage is fully removable to free up interior space for larger radiators or improved airflow, while the 2.5" SSD capacity scales up to 6 slots — offering future-ready storage flexibility well beyond the Elite 301 and 302 series.
- » FineMesh Front Panel with Removable Top Panel: A large unrestricted mesh front panel maximises intake airflow, while the fully removable top panel provides unobstructed access for fan and radiator installation — combined with a pin-secured tool-free tempered glass side panel for fast, screwless component access.
Cooling & Clearance
Fan & Radiator Support
- • Included Cooling: 3× CF120 ARGB Fans (Front, Pre-installed) + ARGB Fan Hub
- • Total Fan Capacity: Up to 7× fans (120 mm or 140 mm)
- • Front Fan Support: 3× 120 mm / 3× 140 mm (Filtered)
- • Top Fan Support: 3× 120 mm / 2× 140 mm (Filtered)
- • Rear Fan Support: 1× 120 mm
- • Radiator (Front): Up to 420 mm (120 / 140 / 240 / 280 / 360 / 420 mm)
- • Radiator (Top): Up to 360 mm (120 / 140 / 240 / 280 / 360 mm)
- • Radiator (Rear): 120 mm
- • ARGB Header: 5V 3-pin + Included ARGB Fan Hub
- • Dust Filters: Front, Top + Bottom (PSU)
Hardware Clearance
- • Max GPU Length: Up to 410 mm
- • Max CPU Cooler Height: Up to 170 mm
- • Max PSU Length: Up to 200 mm (Recommended: 170 mm)
Expansion & Storage

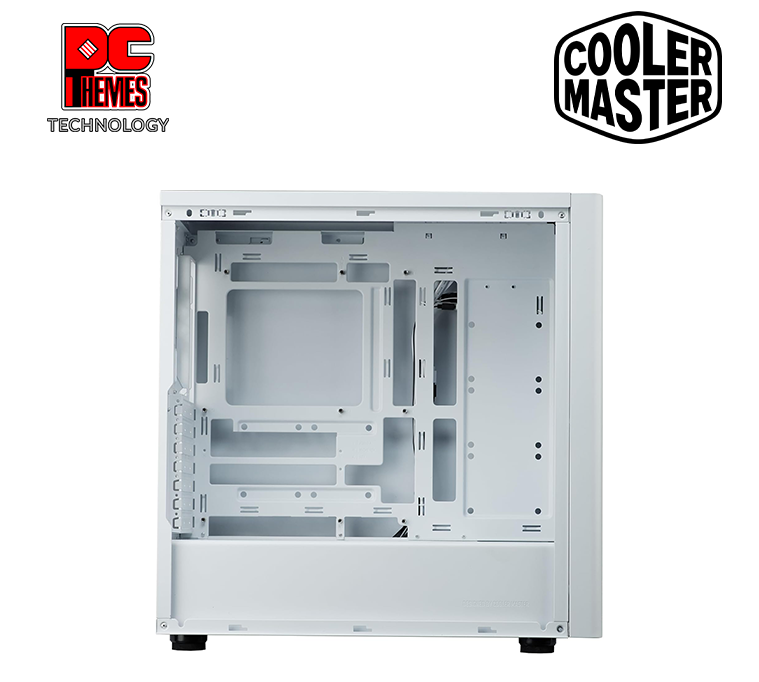

Motherboard & Slots
- • Standard Support: ITX, Micro-ATX, ATX, E-ATX (up to 12" × 10.9" / 30.5 × 27.7 cm)
- • Back-Connect Support: Yes — supports back-connector motherboard designs
- • Expansion Slots: 7 Horizontal
- • PSU Form Factor: ATX (Bottom-mounted, Ventilated Shroud)
- • Cable Routing: 33–35 mm clearance behind motherboard tray
Drive Bays
- • 5.25" ODD Bays: N/A
- • 3.5" HDD Slots: 2 (Removable HDD Cage)
- • 2.5" SSD Slots: 2 standard (Up to 6 maximum)
Design & Connectivity

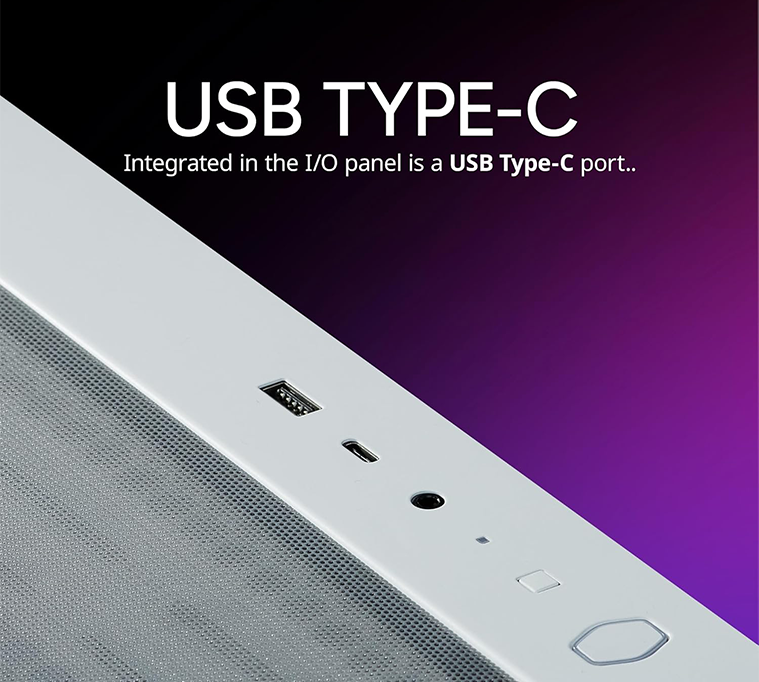

Front I/O Panel
- • Type-C Port: 1× USB 3.2 Gen 1 Type-C (5 Gbps)
- • Type-A Port: 1× USB 3.2 Gen 1 Type-A
- • Audio: 1× 3.5 mm Headphone/Microphone Combo Jack
- • Buttons: Power, Reset / ARGB Toggle
Physical Specs
- • Form Factor: Mid-Tower (ATX)
- • Material: Steel (Exterior + Right Panel), Tempered Glass (Left Panel)
- • Dimensions (Incl.): 474 mm (L) × 230 mm (W) × 481 mm (H)
- • Dimensions (Excl.): 435 mm (L) × 230 mm (W) × 465 mm (H)
- • Volume: 49.73 L (Incl. Protrusions)
- • Side Panel: Tempered Glass (Left, Pin-Secured Tool-Free)
- • Top Panel: Fully Removable (Fan / Radiator Access)
- • Color: White
Reliability & Warranty
Target Audience
- • Use Case: Designed for mid-range to enthusiast ATX builders who want full-size motherboard support, back-connector compatibility, 420mm radiator capacity, and RTX 5090-class GPU clearance — all within a clean mid-tower footprint that doesn't require a full tower chassis.
- • Aesthetics: The all-black steel construction, mesh front intake, and tempered glass left panel create a minimal, no-frills dark-tech build that lets ARGB fan lighting and internal components take centre stage through the glass.
Warranty Info
- • Coverage: 2-Year Limited Manufacturer Warranty
- • Product Family: Cooler Master Elite Series ATX Casings
