ASUS Prime AP201 Mesh Casing

Shop

CASE | CHASSIS

Quantity

Share Now

Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

Case Size

Small Tower

Motherboard Support

Micro-ATX
Mini-ITX

Drive Bays

1 x 2.5" Bay
3 x 2.5"/3.5" Combo Bay

Expansion Slots

Front I/O Port

1 x Headphone
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C

Radiator Support (Top)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Rear)

120 mm

Cooling Support (Top)

3 x 120 mm
2 x 140 mm

Cooling Support (Rear)

1 x 120 mm

Pre-installed Fans (Front)

None

Pre-installed Fans (Rear)

1 x 120 mm

Maximum CPU Cooler Height

170 mm

Maximum GPU Length

338 mm

Maximum PSU Length

140-180 mm

Removable Dust Filters

Bottom

Maximum Cable Management Space

32 mm

Dimensions

205 x 350 x 460 mm

Weight

5.8 Kg

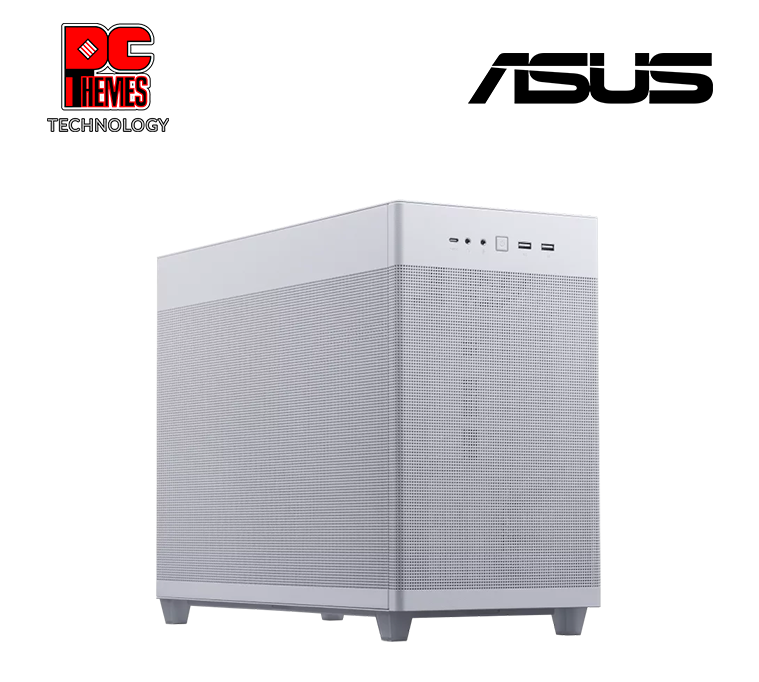

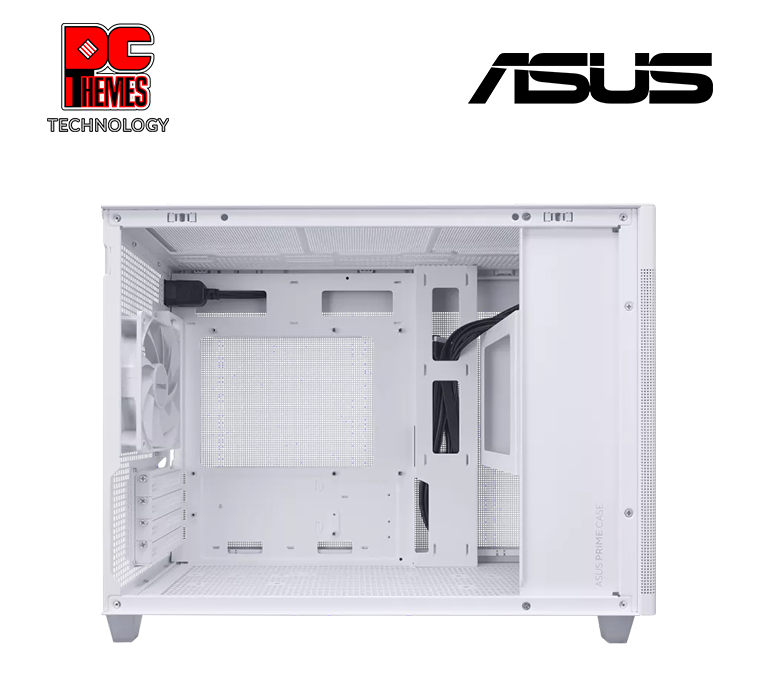

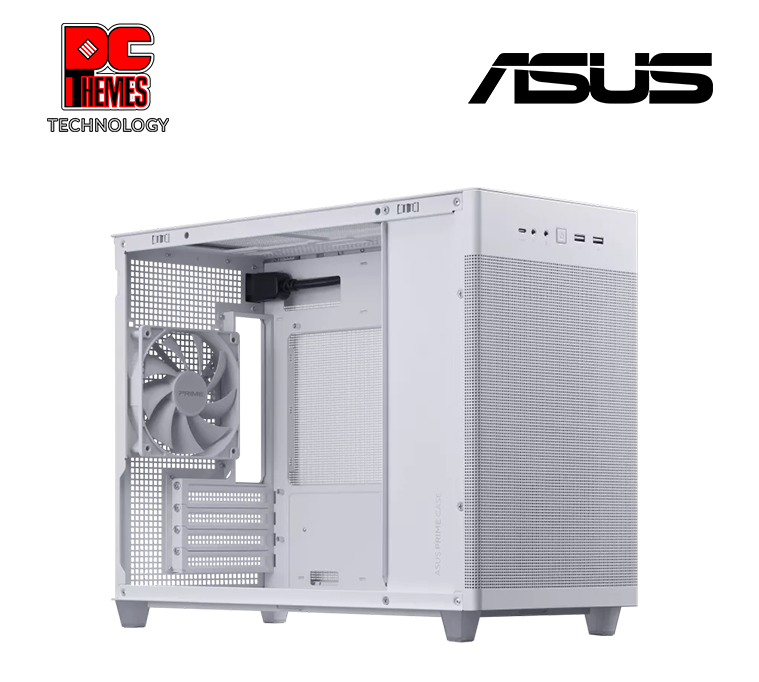

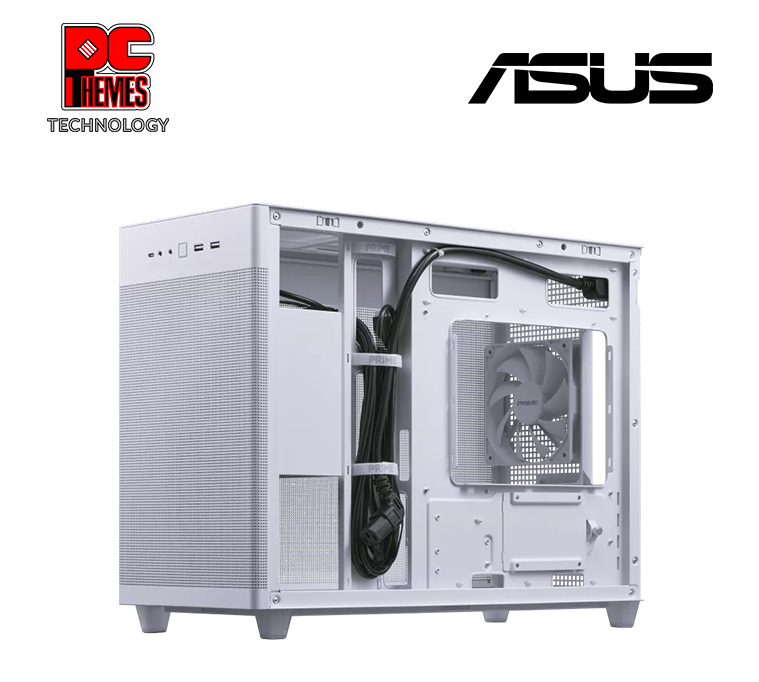

ASUS Prime AP201 Mesh Casing - White
Chassis Form Factor	Small Tower
Supported Motherboards	Micro-ATX, Mini-ITX
Case Material	Steel and Plastic mesh (Quasi-Filter Mesh)
Dimensions	205 x 350 x 460 mm
Weight	5.8 kg
Expansion Slots	4
Drive Bays	1 x 2.5 inch Bay, 3 x 2.5/3.5 inch Combo Bay
Maximum GPU Length	338 mm
Maximum CPU Cooler Height	170 mm
Maximum PSU Length	140 - 180 mm (ATX support)
Front Panel I/O	1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 1 x Headphone, 1 x Microphone
Radiator Compatibility	Up to 360 mm (Top), 120 mm (Rear), 360 mm (Bottom)
Fan Support	Up to 3 x 120 mm or 2 x 140 mm (Top), 1 x 120 mm (Rear, pre-installed), 3 x 120 mm (Bottom)
Cable Management Space	32 mm
Warranty	2 years
