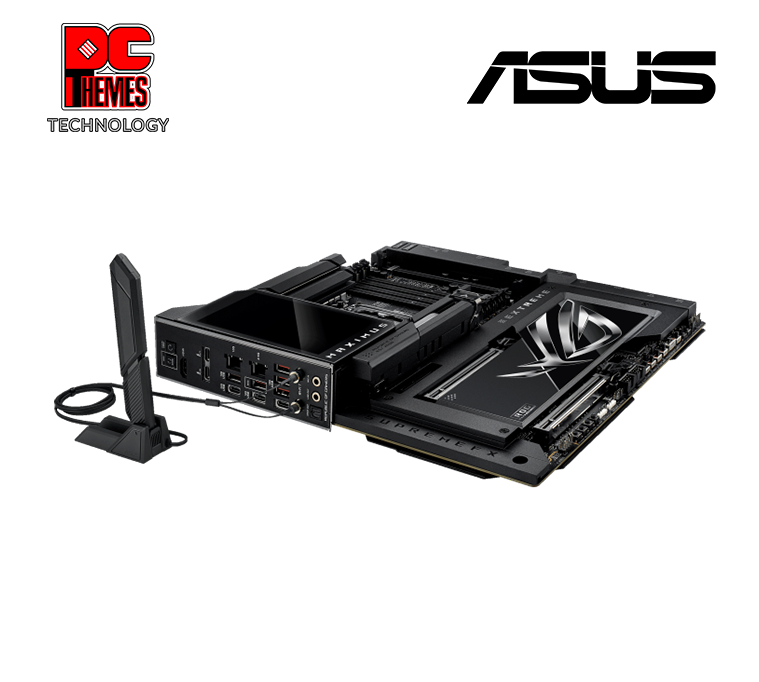

ASUS ROG MAXIMUS Z890 EXTREME Motherboard
Pre-Order- $1,592.00
ROG Maximus Z890Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
This product is out of stock, submit your email and we will update once it restock.
Model
ROG MAXIMUS Z890 EXTREME
News & Updates
2024/10/24: A new BIOS has been released addressing various bugs, including issues related to no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
Visit our GLOBAL website to check and download the latest updates.
Specifications
CPU Support
- Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- Refer to ASUS Support Download Center for CPU support list.
- Turbo Boost Max Technology 3.0 support depends on CPU types.
Chipset
- Intel® Z890 Chipset
Memory
- Slots: 4 x DIMM
- Max Capacity: 192GB, DDR5
- Speed: Supports up to 9200+MT/s (OC), Non-ECC, Unbuffered, Clocked Unbuffered DIMM (CUDIMM)*
- Architecture: Dual Channel Memory
- Features:
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS Enhanced Memory Profile III (AEMP III)
- Supports DIMM Flex
- NitroPath DRAM Technology
- Refer to the CPU/Memory Support list for supported types and speeds.
Graphics
- 1 x HDMI™ port**
- 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) supporting DisplayPort and Thunderbolt™ video outputs***
- Resolution Support:
- Max. 8K@60Hz with DSC (HDMI 2.1)
- Recommended chain connection for multiple monitors
- Graphics specs may vary by CPU types.
Expansion Slots
- For Intel® Core™ Ultra Processors (Series 2):
- 2 x PCIe 5.0 x16 slots
- For Intel® Z890 Chipset:
- 1 x PCIe 4.0 x4 slot
- Refer to PCIe bifurcation table for compatibility.
Storage
- Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
- M.2 support includes:
- Various types and modes (PCIe 5.0/4.0)
- Intel® Rapid Storage Technology supports RAID configurations.
Ethernet
- 1 x Intel® 2.5Gb Ethernet
- 1 x Marvell® AQtion 10Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- Intel® Wi-Fi 7
- Supports up to 5.8Gbps transfer rate
- Bluetooth® v5.4
- Compatibility: Wi-Fi 7 requires specific Windows versions for full functionality.
USB Ports
- Rear: Total 10 ports
- 2 x Thunderbolt™ 5 ports (USB Type-C®)
- 1 x USB 20Gbps port (USB Type-C®)
- 7 x USB 10Gbps ports
- Front: Total 10 ports
- Various USB headers and connectors for additional ports and power delivery.
Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Supports high-quality audio playback and recording.
Back Panel I/O Ports
- Comprehensive I/O layout including USB, HDMI, Ethernet, audio jacks, and buttons for BIOS FlashBack™ and Clear CMOS.
Internal I/O Connectors
- Various fan headers, power connectors, storage connectors, and miscellaneous headers for advanced connectivity and cooling.
Special Features
- Extreme OC Kit: Includes features for overclocking and diagnostics.
- ASUS Thermal Solution: Advanced cooling solutions integrated into the motherboard design.
- Aura Sync: Customizable RGB lighting support.
- Dual BIOS: Enhanced reliability for system stability.
Software Features
- ROG Exclusive Software and ASUS Exclusive Software for optimization and customization.
Operating System Support
- Windows 11 (22H2 & later)
Form Factor
- E-ATX Form Factor (12 x 10.9 inches / 30.5 cm x 27.7 cm)
