ASROCK Z890 Pro-A WiFi Motherboard
- $369.00
| ASRock Z890 Pro-A WiFi Motherboard | |
|---|---|
| Model | Z890 Pro-A WiFi |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) |
| Chipset | Intel® Z890 |
| Memory | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots (Up to 9066MHz+ OC), Max. capacity: 256GB |
| Graphics | Intel® Xe LPG Graphics Architecture (requires CPU with integrated GPU), 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x Intel® Thunderbolt™ 4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) |
| Wireless & Bluetooth | 802.11axe Wi-Fi 6E Module, Supports Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot, 2 x PCIe 4.0 x4 Slots, 1 x PCIe 4.0 x1 Slot |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 3 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors |
| USB Connectors | 1 x Thunderbolt™ 4/USB4 Type-C (Rear), 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 x USB 3.2 Gen2 Type-A, 6 x USB 3.2 Gen1 (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x Thunderbolt™ 4/USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm), 2oz Copper PCB |
| OS Support | Microsoft Windows® 11 64-bit |
Select Option
Share Now
Out of Stock!
This product is out of stock, submit your email and we will update once it restock.
ASRock Z890
Pro-A WiFi
Unique Features
- » Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)
- » Rock-Solid Durability: 16+1+1+1+1 Power Phase (Dr. MOS for VCore+GT), Memory OC Shield
- » Ultrafast Connectivity: 2.5G LAN, 802.11axe Wi-Fi 6E Module
- » EZ Update & Troubleshooting: BIOS Flashback Button, Auto Driver Installer, ASRock Post Status Checker
CPU & Memory
Processor Support
- • Supports Intel® Core™ Ultra Processors (Series 2)
- • Hybrid Tech & Turbo Boost Max 3.0
- • Thermal Velocity Boost & Adaptive Boost
- • Integrated NPU for dedicated AI acceleration
Memory Specs
- • Dual Channel DDR5 (4 x DIMM Slots)
- • Max Capacity: 256GB
- • Supports up to 9066MHz+(OC)
- • Supports CUDIMM & Intel® XMP 3.0
*1DPC 1R Up to 9066+ MHz (OC)
*1DPC 2R Up to 6800+ MHz (OC)
*2DPC 1R Up to 6533+ MHz (OC)
*2DPC 2R Up to 5600+ MHz (OC)
*1DPC 2R Up to 6800+ MHz (OC)
*2DPC 1R Up to 6533+ MHz (OC)
*2DPC 2R Up to 5600+ MHz (OC)
Graphics & Storage
Video Output
- • Intel® Xe LPG Graphics Architecture
- • 1 x HDMI 2.1 (HDR, HDCP 2.3, 4K 120Hz)
- • 1 x DisplayPort 1.4 w/ DSC (8K 60Hz / 5K 120Hz)
- • 1 x Thunderbolt™ 4 (8K 60Hz / 5K 120Hz)
Ultra-Fast Storage
- • CPU: 1x Blazing M.2 (Gen5x4), 1x Hyper M.2 (Gen4x4)
- • Chipset: 2x Hyper M.2 (One supports SATA3/Gen4x4)
- • 4 x SATA3 6.0 Gb/s Connectors
- • RAID 0/1/5/10 (SATA & NVMe)
Expansion & Net
Expansion Slots
- • 1 x PCIe 5.0 x16 Slot (x16 mode)
- • 2 x PCIe 4.0 x4 Slots, 1 x PCIe 4.0 x1 Slot
- • 1 x M.2 Socket (Key E) for WiFi/BT/CNVio
Connectivity
- • LAN: 2.5 Gigabit LAN (Dragon RTL8125BG)
- • Wi-Fi 6E: 802.11axe Module (Supports 6GHz band)
- • Bluetooth 5.3 & MU-MIMO Support
Ports & Headers

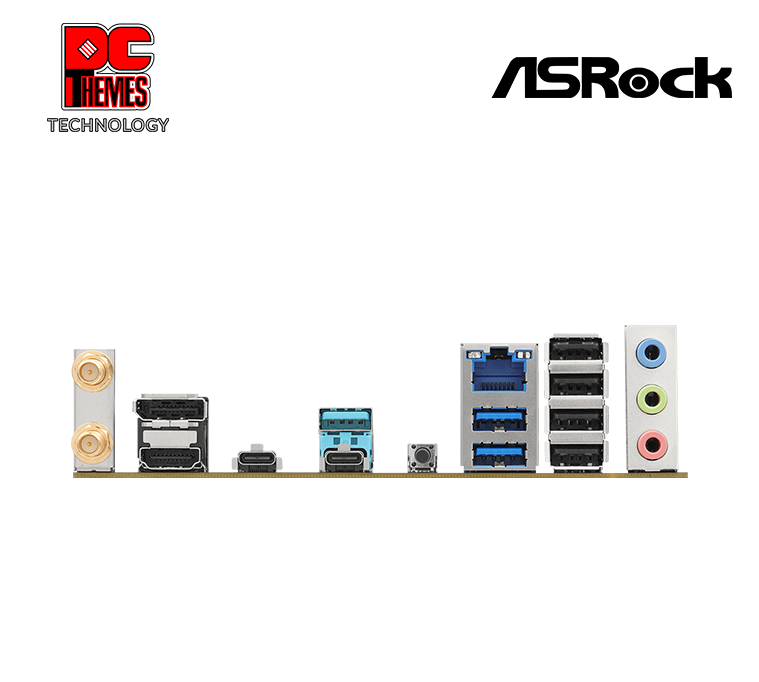

Rear Panel I/O
- • 1x Thunderbolt™ 4/USB4 Type-C (40 Gb/s)
- • 1x USB 3.2 Gen2x2 Type-C (20 Gb/s)
- • 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0
- • 1x RJ-45 LAN, 1x HDMI, 1x DP 1.4, HD Audio Jacks
- • BIOS Flashback Button
Internal Audio & Fans
- • 7.1 CH HD Audio (Realtek ALC897)
- • Front USB: 1x Type-C Gen2x2, 2x Gen1, 2x USB 2.0
- • 8x Fan Connectors (2 CPU, 5 Chassis, 1 AIO)
- • 3x Addressable LED, 1x RGB LED Header
- • ATX Form Factor (2oz Copper PCB)
