Sleeved Cables
CORSAIR PCIe 5.1 600W 12V-2x6 Cable Black
- $31.36
- $32.00
| CORSAIR ThermalProtect PCIe 5.1 600W 12V-2x6 Cable | |
|---|---|
| Model | CP-8920472 |
| Product Type | GPU Power Cable |
| Brand | CORSAIR |
| Power Connector Standard | PCIe 5.1 / 12V-2x6 |
| Maximum Rated Power | 600W |
| Cable Length | 650 mm ±10 mm |
| Power Wire Gauge | 16 AWG (0.1 mm × 165 conductors) |
| Signal Wire Gauge | 24 AWG (0.16 mm × 11 conductors) |
| Thermal Switch Signal Wire | 26 AWG UL3266, rated to 125°C |
| Wire Insulation Standard | UL1569, rated to 105°C, VW-1 |
| Connector Housing | 12+4 H++ connector, black / Cool Grey 8C, UL 94V-0 |
| Power Terminals | 12 alloy copper terminals with 3-dimple contact geometry |
| Sense Terminals | 4 phosphor bronze terminals with 3-dimple contact geometry |

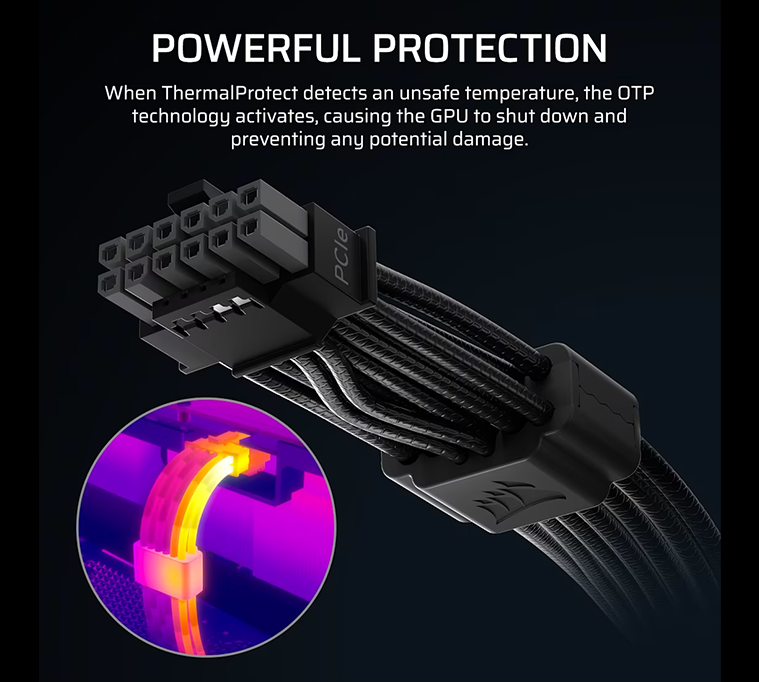

| Thermal Protection | Built-in ThermalProtect Over Temperature Protection (OTP) |
| Thermal Switch Type | Normally closed bimetallic thermal switch |
| Thermal Trip Temperature | 65°C ±5°C |
| Thermal Reset | Automatic reset after cooling |
| Temperature Sensing Method | Copper clip in direct contact with 16 AWG power wires |
| Thermal Module Placement | 30 mm from the GPU-side connector |
| Sense Pin Control | S3 and S4 (Sense0 and Sense1) |
| Normal Operating State | Sense pins connected to ground; 600W power capability available |
| Protection Triggered State | Sense pins open; GPU limits power to 150W to help prevent damage |
| Active Electronics | None; passive thermal protection design |

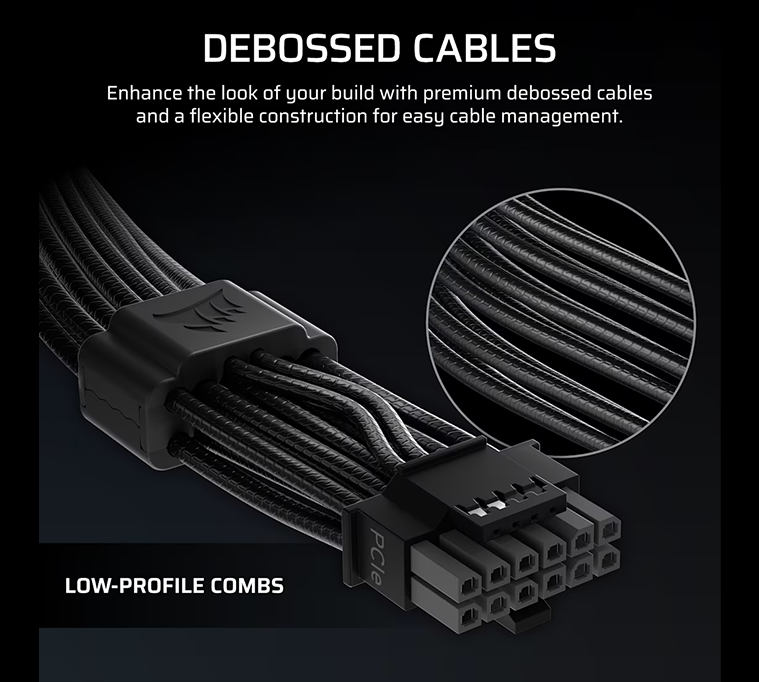

| Cable Design | Flexible debossed PVC cable with low-profile cable combs |

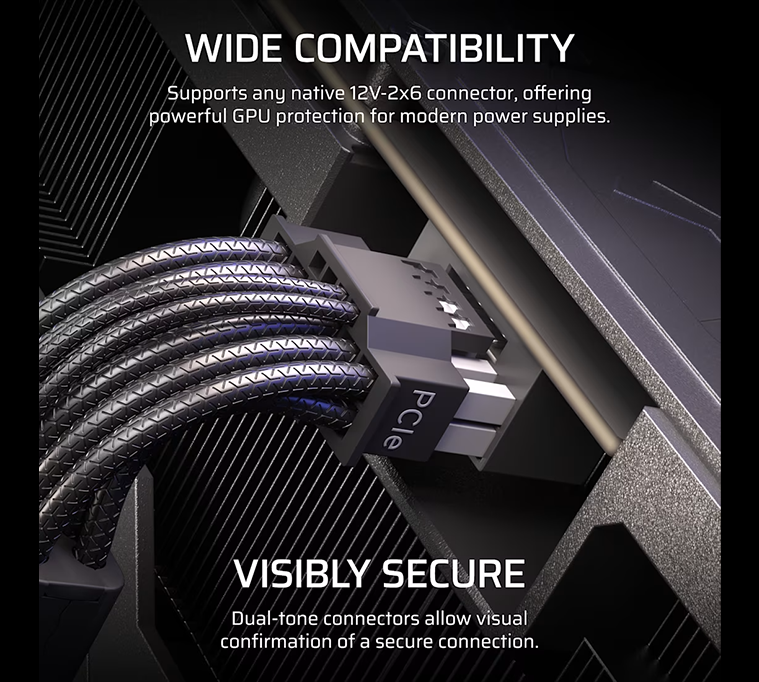

| Connector Identification | Dual-tone connectors for visual confirmation of full insertion |
| Compatibility | Compatible with power supplies featuring a native 12V-2x6 connection |
| Colour | Black (CP-8920472); white variant also available |
| Compliance | RoHS compliant (EU 2011/65) |
| Warranty | 2 Years |
| Features | Built-in over-temperature protection, automatic thermal reset, flexible cable construction, low-profile cable combs, dual-tone connector seating indicators, native 12V-2x6 compatibility |
