SEASONIC Prime PX 2200W Platinum 3.1 PSU (12Y)

Shop

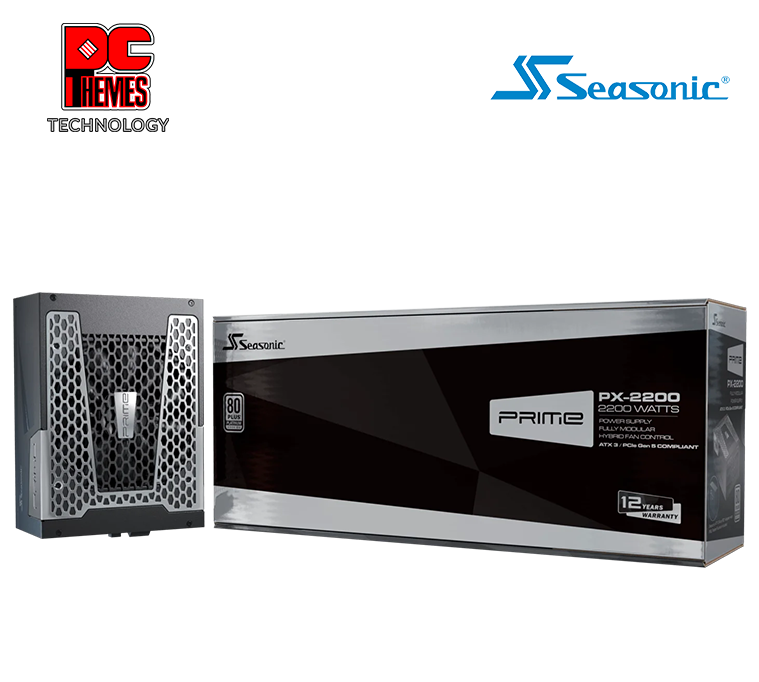

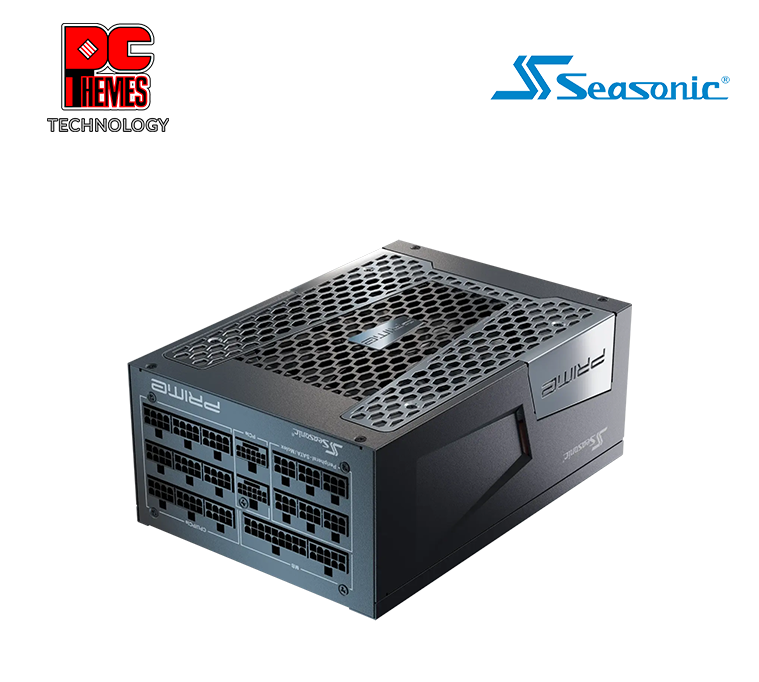

SEASONIC Prime PX 2200W Platinum 3.1 Power Supply

$823.53
$849.00

PRIME PX ATX 3.1

When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.

Quantity

Share Now

Out of Stock!

This product is out of stock, submit your email and we will update once it restock.

0 reviews / Write a review

Specifications
Reviews (0)

SEASONIC Prime PX 2200W Platinum 3.1 Power Supply
Model	SEASONIC Prime PX 2200W Platinum 3.1
Form Factor	ATX / EPS
Dimensions	210 mm (L) x 150 mm (W) x 86 mm (H)
Efficiency	80 PLUS Platinum (92% at 50% load); Cybenetics Titanium
Total Power	2200 W (Continuous)
AC Input	200 - 240 Vac, 15 A, 50 - 60 Hz
DC Output Rail Max Power	+3.3V (25A, 125W), +5V (25A, 125W), +12V (183.3A, 2200W), -12V (0.5A, 6W), +5Vsb (3A, 15W)
Specifications	ATX 3.1 and PCIe 5.1
Cabling	Fully Modular (Individual Black Cables with Braided Pattern)
Fan	135 mm Fluid Dynamic Bearing (FDB); Digital Hybrid Fan Control
MTBF	100,000 hours @ 25 °C (excluding fan)
Protections	OPP, OVP, UVP, OCP, OTP, SCP
Load Regulation	Micro Tolerance Load Regulation (MTLR) \[0.5%\]
Ripple Noise	Super Low Ripple Noise \[under 20 mV\]
Warranty	12 Years

Tags: SEASONIC Prime PX 2200W Platinum 3.1 PSU (12Y)
